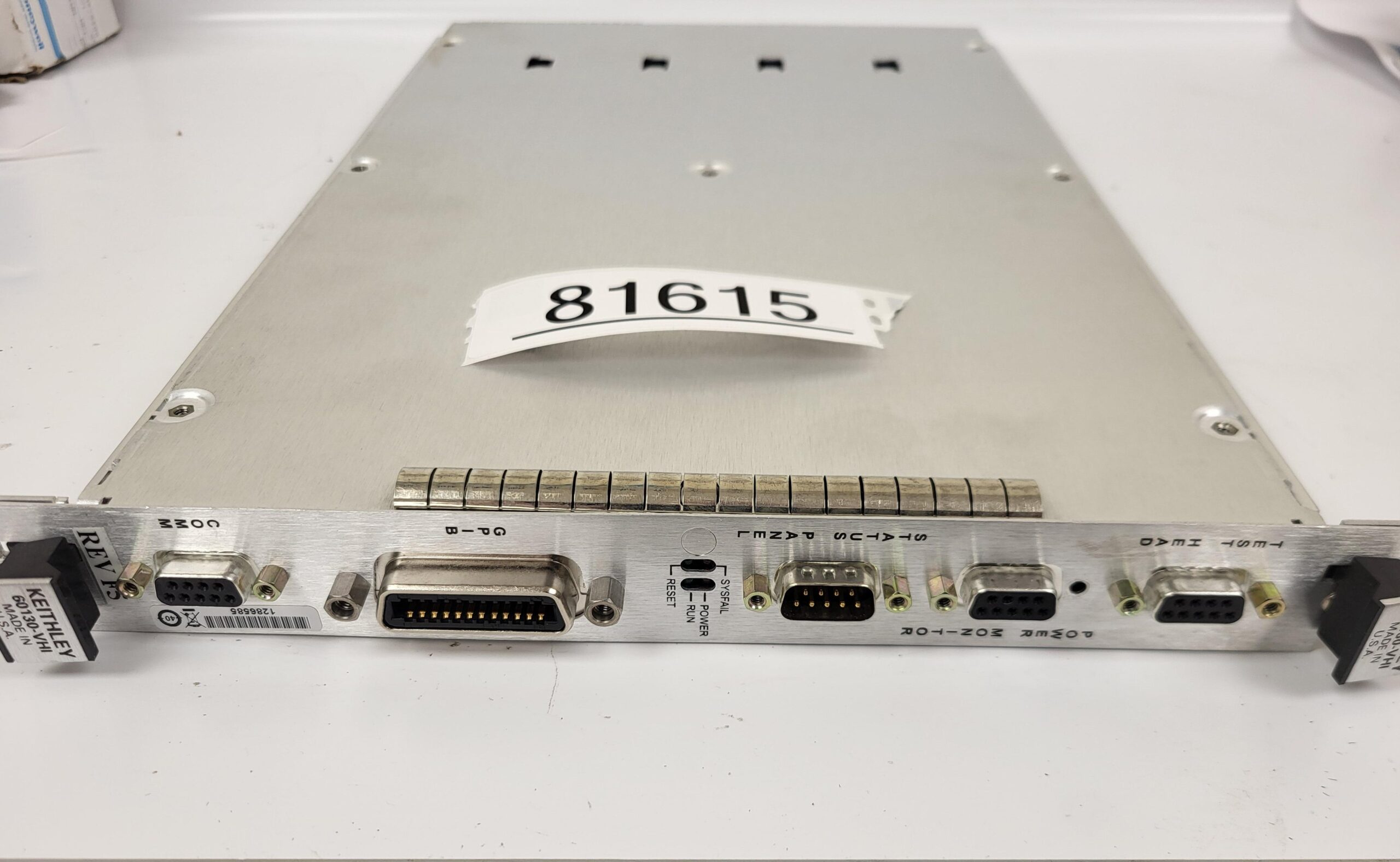

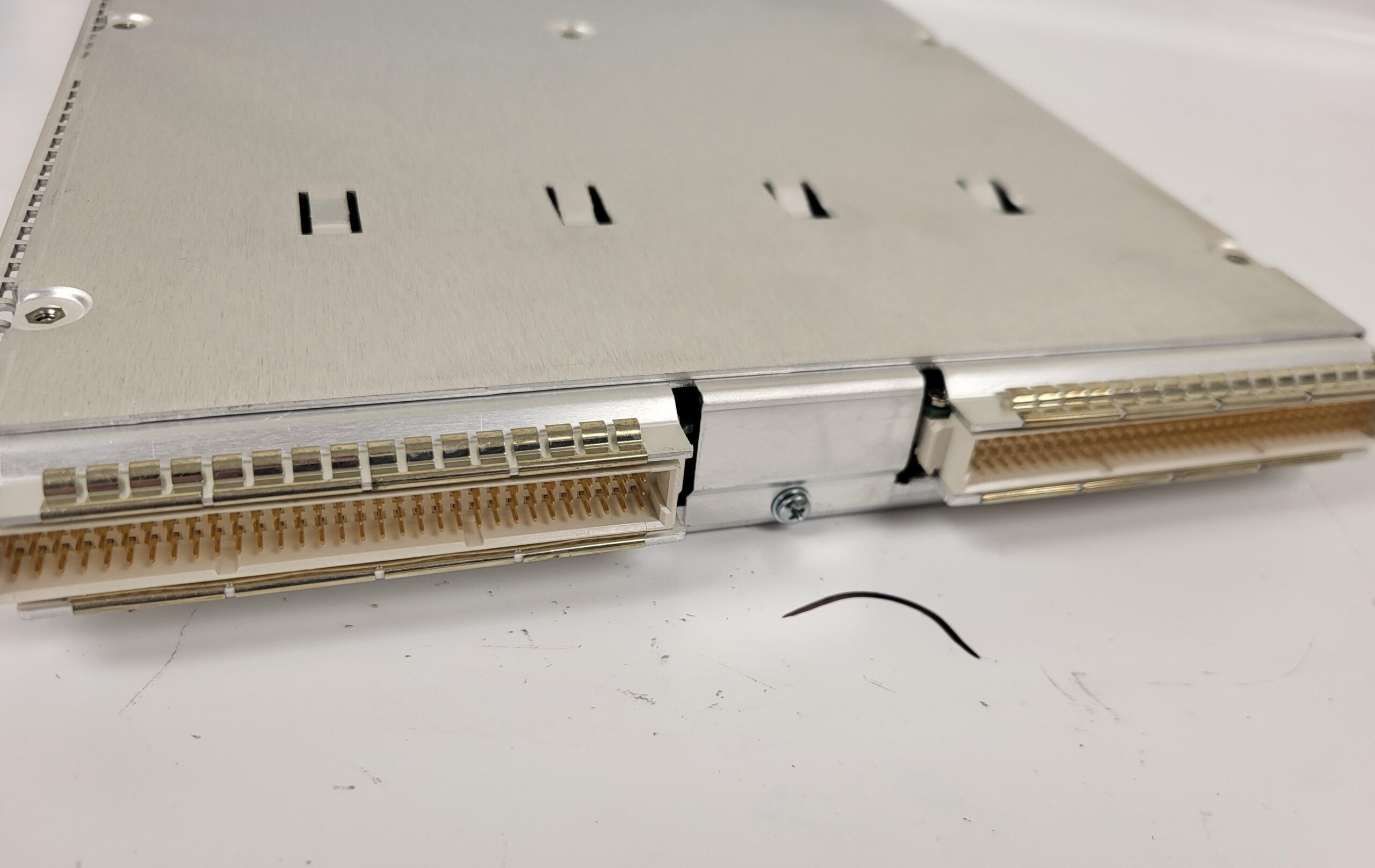

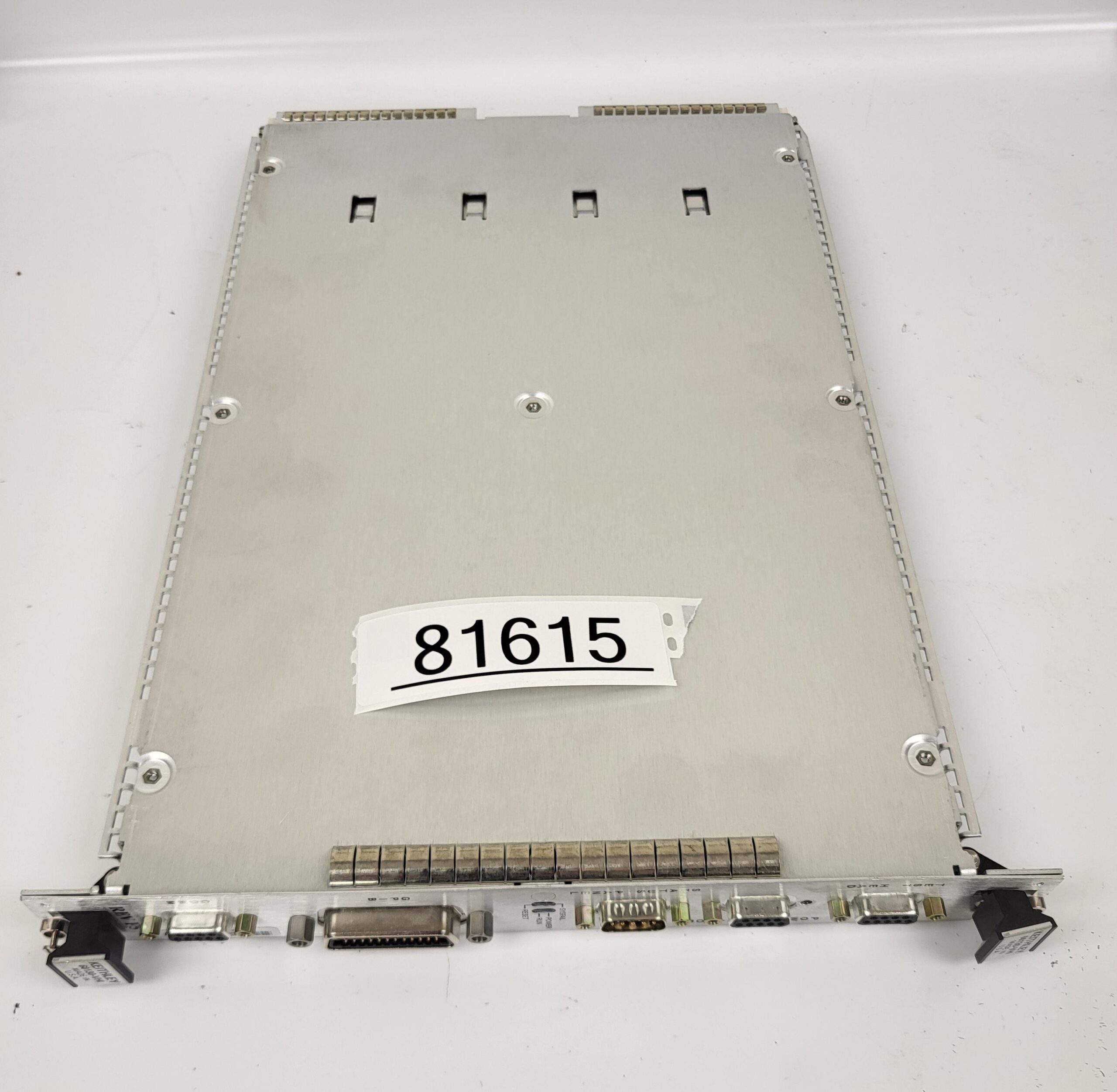

Keithley 60130-VHI (S600 Series Module)

This item was removed from a working environment but we are unable to test this.

The Keithley 60130-VHI (Voltage/High-current Interface) module is a critical component of the S600 Series Parametric Test System, designed to interface between the core instrumentation and the test head. It serves as both a voltage interface and a high-current delivery module—ensuring power delivery and signal integrity during parametric testing of semiconductor devices.

Functionality Highlights

• Test Head Integration: It acts as a bridge between the system’s processing electronics and the test head, facilitating robust power switching and signal routing during measurement operations .

• Voltage & Power Handling: The VHI supports high-current operations, presumably enabling accurate voltage sourcing and measurement under load conditions.

• System Compatibility: Built for seamless interfacing with other modular components like the 60101-VCM, 60110-SMU, and broader S600 infrastructure .

Use Cases

• Deployed in high-throughput wafer-level parametric testing, especially where devices require stable voltage and current supply during characterization.

• Key to production, yield monitoring, and IC parametric evaluation in analog, mixed-signal, and BiCMOS fabrication environments.

• Component	Description
  60130-VHI	Voltage/High-current Interface module for the S600 Series
  Primary Role	Interface between core electronics and test head; handles voltage/current distribution
  Applications	Semiconductor parametric testing, high-throughput wafer characterization
