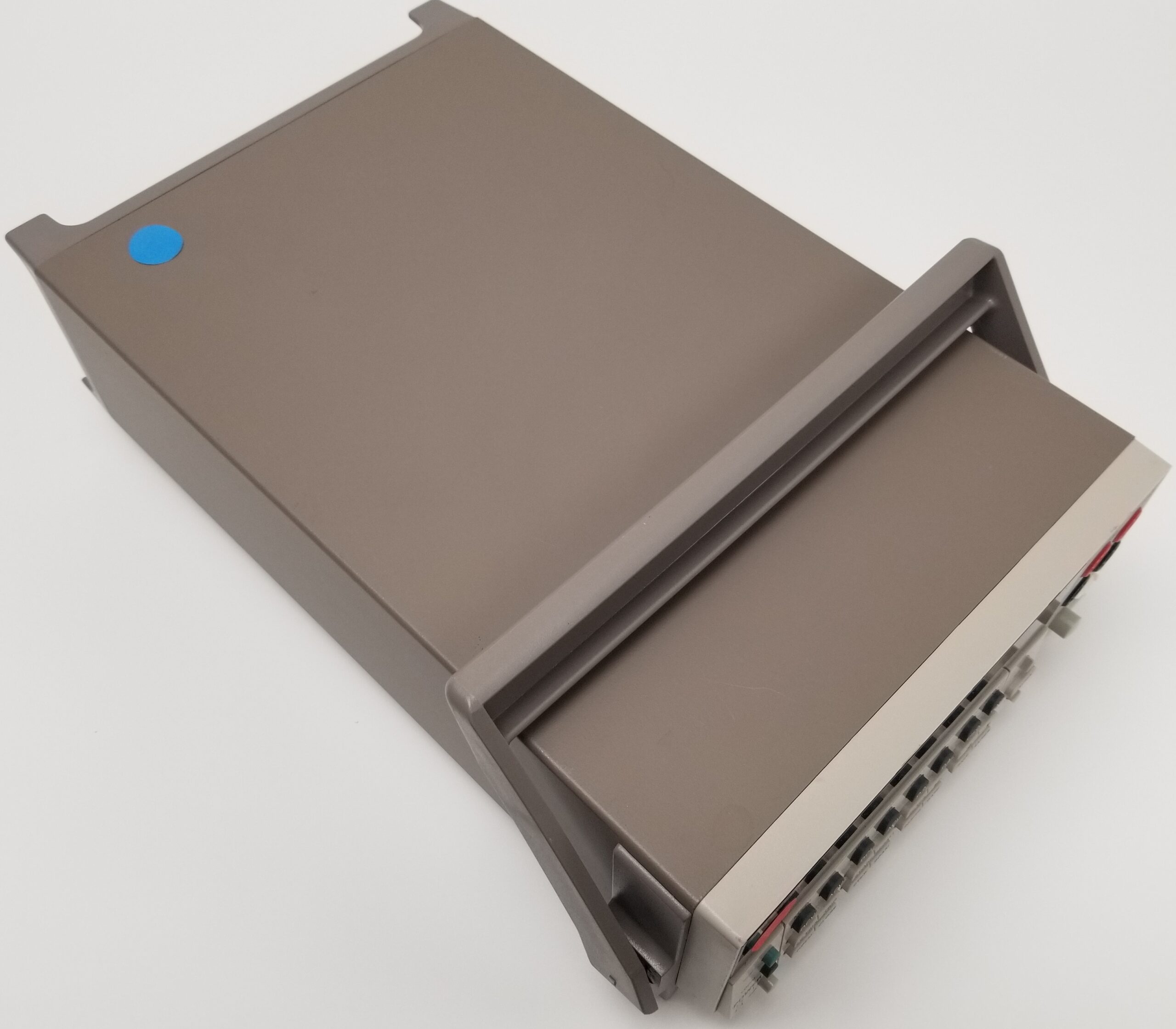

Keithley 2010 Digital Multimeter

Keithley 2010 7.5-Digit High-Precision Digital Multimeter. Unit powers on. Display bright. Basic check with lab power supply and decade resistor O.K. No test leads, manual or other accessories. As shown. Purchaser responsible for any calibration, certification or maintenance.



Product Description:

The Keithley 2010 Digital Multimeter (DMM) is a high-performance, 7.5-digit precision instrument designed for applications requiring ultra-accurate voltage, current, and resistance measurements. Featuring exceptional sensitivity, low-noise performance, and advanced measurement capabilities, the Keithley 2010 is widely used in laboratories, R&D environments, and industrial testing setups.

This versatile multimeter includes low-resistance measurement capabilities with offset-compensated ohms, making it an ideal tool for testing high-precision electronic components and materials. It also supports built-in scanner control, allowing easy integration into automated test systems.

---

Key Features:

✅ 7.5-Digit Resolution – Provides ultra-precise measurements for high-accuracy applications.
✅ Low-Noise Design – Ensures stable and repeatable measurements, even in sensitive applications.
✅ Wide Measurement Range – Measures DC voltage, AC voltage, current, resistance, and temperature.
✅ Built-in Scanning Capabilities – Supports automated multi-point measurements.
✅ High-Speed Measurement Mode – Fast reading rates for production and industrial testing.
✅ Low-Resistance Measurement with Offset Compensation – Ideal for testing conductors, connectors, and PCB traces.
✅ IEEE-488 and RS-232 Interfaces – Easy integration into automated test systems.
✅ Industry-Leading Accuracy – Best-in-class low-level signal measurement performance.

---

Applications:

✔ R&D and Engineering – Essential for precision electronic design and component testing.
✔ Quality Control & Manufacturing – Used in industrial testing and automated inspection systems.
✔ Semiconductor & Materials Research – Supports low-resistance and sensitive material testing.
✔ Metrology & Calibration Labs – Ensures high-precision calibration and measurement verification.
✔ Scientific Research – Ideal for academic and government laboratories requiring high-accuracy data collection.

---

Specifications:

Specification	Details
Model	Keithley 2010 Digital Multimeter
Digits of Resolution	7.5
DC Voltage Range	100nV to 1000V
AC Voltage Range	100nV to 750V
DC Current Range	10pA to 3A
AC Current Range	1nA to 3A
Resistance Measurement	10µΩ to 1GΩ
Temperature Measurement	Supports thermocouples and RTDs
Interfaces	IEEE-488 (GPIB), RS-232
Scanning Capabilities	Built-in scanner control
Measurement Speed	Up to 2000 readings per second
Operating Temperature	0°C to 50°C

---

Why Choose the Keithley 2010?

✔ Exceptional Measurement Accuracy – Industry-leading 7.5-digit resolution for high-precision applications.
✔ Versatile & Reliable – Suitable for laboratory, production, and metrology applications.
✔ Advanced Scanning & Automation – Built-in scanner control allows multi-channel testing.
✔ Robust & Durable – Engineered for long-term reliability in demanding environments.

The Keithley 2010 Digital Multimeter is the ideal choice for professionals seeking high-precision, low-noise, and highly reliable measurement capabilities for scientific research, R&D, and industrial testing.
