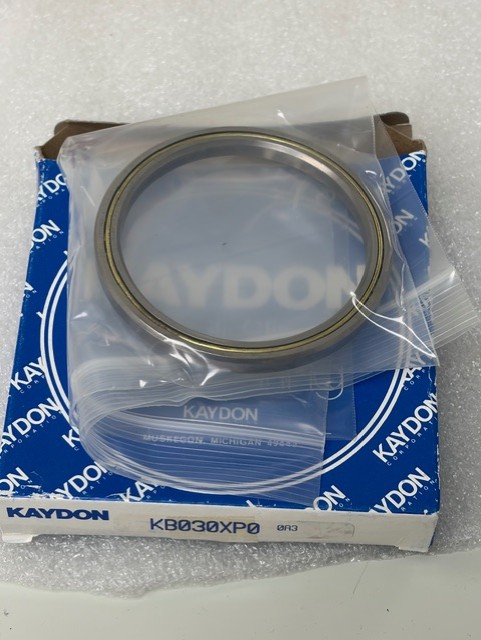

The KB030XP0 KAYDON is a Kaydon Reali-Slim thin section four-point contact ball bearing designed for applications requiring compact size, low weight, and the ability to handle combined radial, axial, and moment loads. It belongs to the KB series with an open design and Type X four-point contact geometry.
Key Specifications
- Bore (ID): 3.000 in
- Outside Diameter (OD): 3.625 in
- Width: 0.3125 in
- Bearing Type: Four-point contact (Type X)
- Dynamic radial capacity: 933 lbs
- Dynamic thrust capacity: 1,440 lbs
- Static radial capacity: 1,340 lbs
- Approximate weight: 0.24 lbs
Common Applications
- Robotics and automation systems
- Optical and semiconductor equipment
- Aerospace assemblies
- Medical imaging devices
- Rotary indexing tables
- Compact motion-control systems
| Weight | 2 lbs |
|---|---|
| Dimensions | 8 × 6 × 4 in |
