Product Description

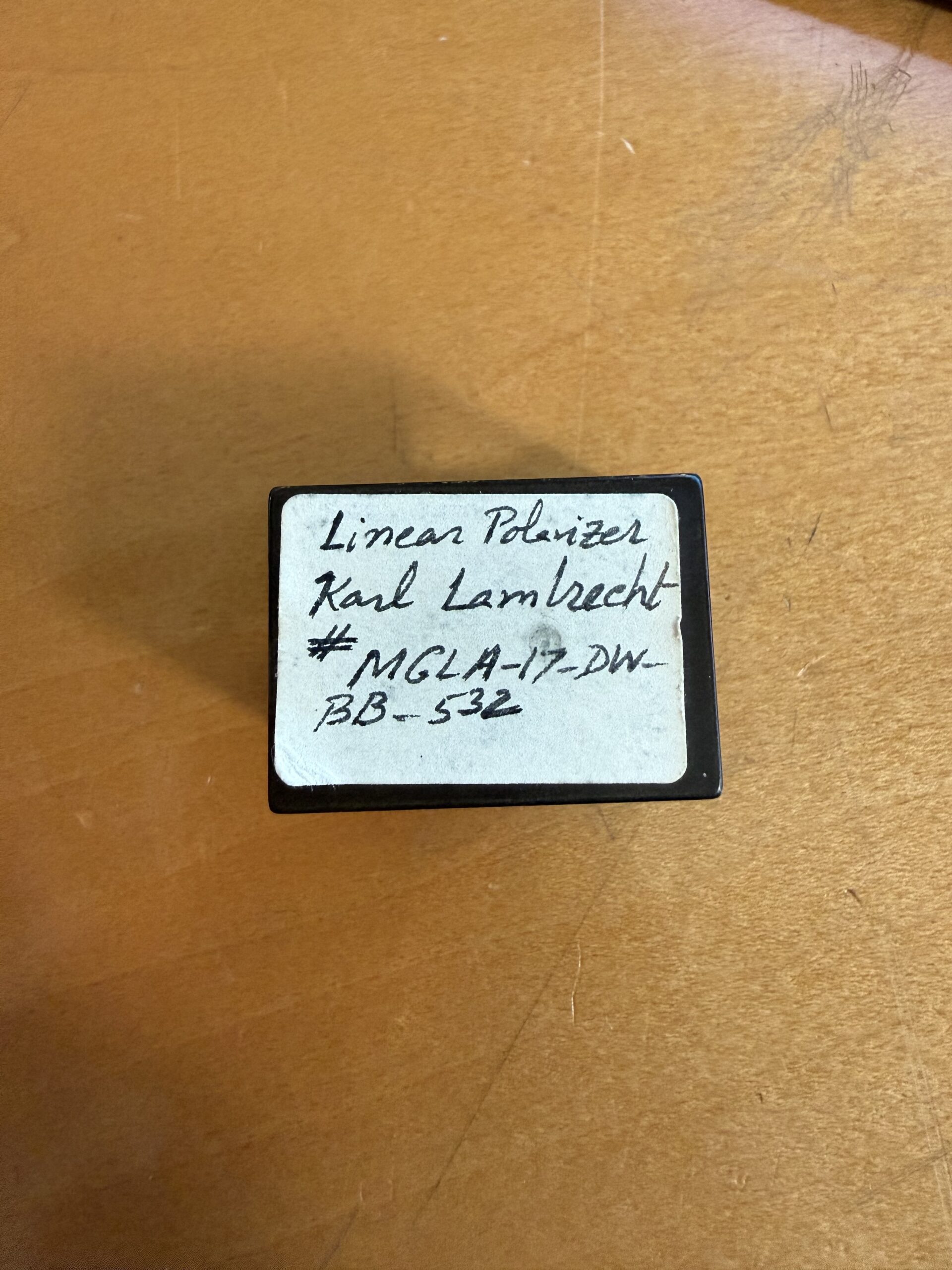

Karl Lambrecht MGLA-17-DW-BB-532 Glan-Laser Polarizer – High Extinction Ratio, 532nm Wavelength

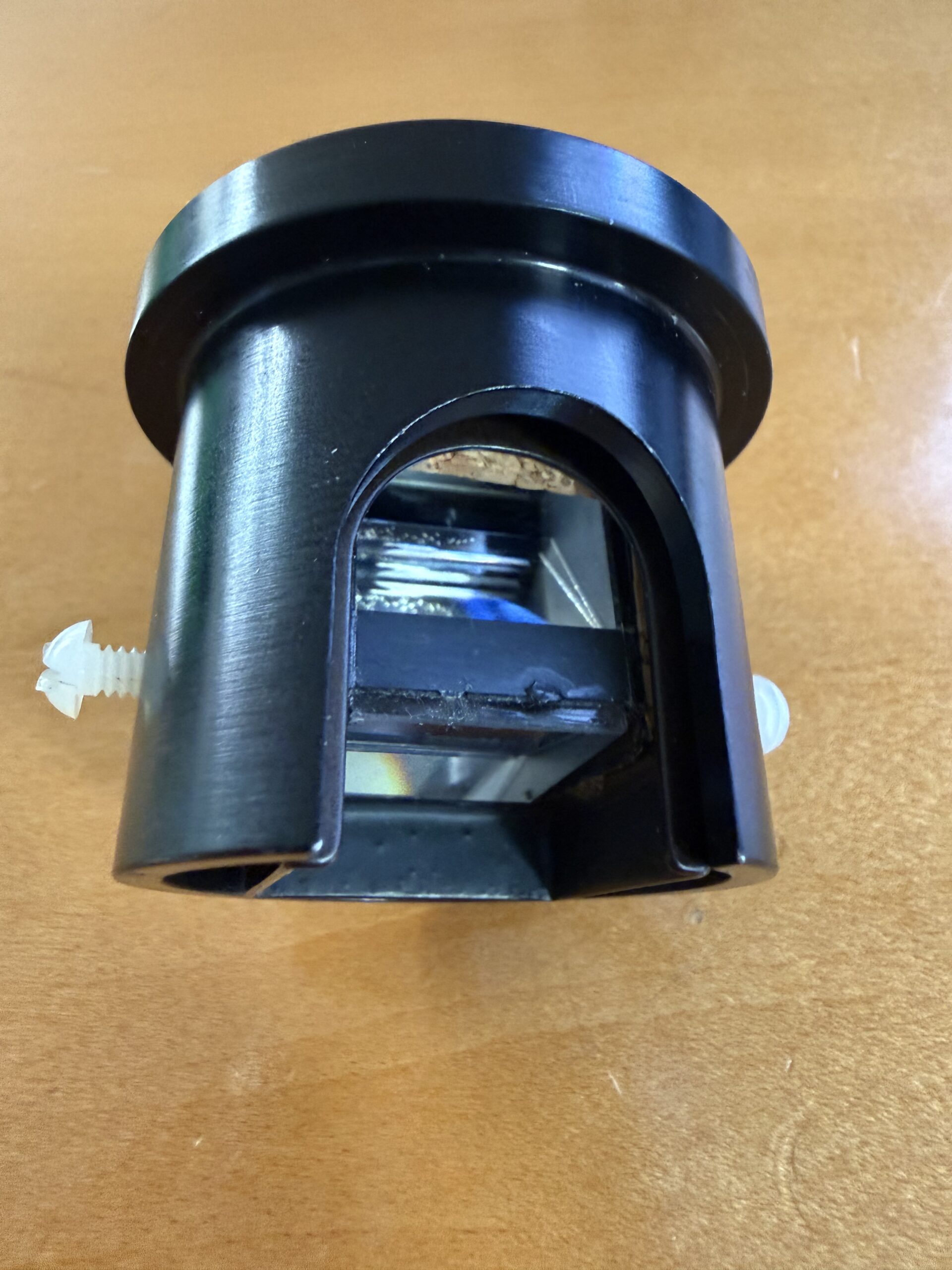

This used Karl Lambrecht MGLA-17-DW-BB-532 is a precision Glan-Laser polarizer designed for demanding laser applications. The MGLA series typically consists of two high-grade calcite prisms optically cemented or air-spaced to produce a highly collimated beam of linearly polarized light.
The “MGLA” designation generally indicates a Glan-Laser polarizer in a protective aluminum housing for high damage threshold. The “17” typically indicates a 17mm clear aperture, making it suitable for medium to large diameter beams.
Condition Note: This unit is used and sold as-is. It should be inspected for optical clarity and coating integrity.
Key Specifications (Decoded from Model)
| Specification | Details |
|---|---|
| Manufacturer | Karl Lambrecht Corporation (Moleciron Detector Inc.) |
| Model | MGLA-17-DW-BB-532 |
| Type | Glan-Laser Polarizer |
| Clear Aperture | 17 mm (inferred from “17”) |
| Wavelength | 532 nm (Nd:YAG frequency doubled, Green) |
| Coating | BB-532 (Broadband Anti-Reflection at 532nm) |
| Extinction Ratio | Typically >100,000:1 (Standard for Glan-Laser type) |
| Beam Deviation | < 3 arc minutes (Typical) |
| Damage Threshold | High (Suitable for pulsed Q-switched lasers) |

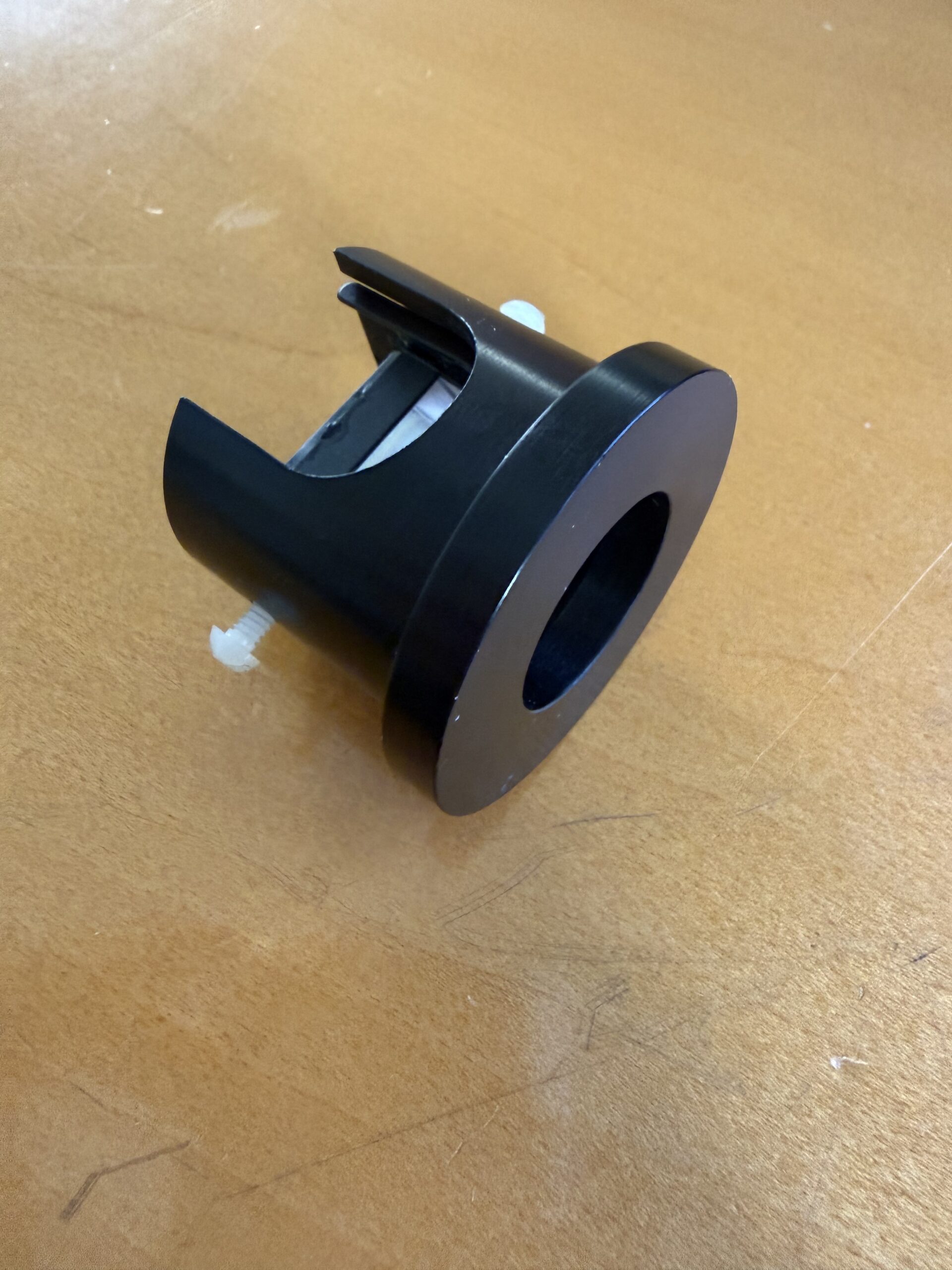

| Construction | Encased in rigid aluminum housing with mounting flats |
Decoding the Model Number
This specific part number reveals key technical specifications:
| Code | Interpretation |
|---|---|
| MGLA | Mounted Glan-Laser Polarizer (Air-spaced for high damage threshold) |
| 17 | Clear Aperture Diameter – 17 mm |
| DW | Dual Wavelength or specific design configuration |
| BB | Broadband Anti-Reflection Coating |
| 532 | Optimized for 532 nm (Green light, frequency-doubled Nd:YAG) |
Applications
-
Nd:YAG Laser Systems: Isolating linearly polarized output from frequency-doubled green lasers
-
Scientific Research: Polarization extinction measurements in optics labs
-
Optical Pumping: High-power laser cavity design
-
Electro-Optics: Modulation and Q-switching setups
-
Metrology: High-precision calibration systems
Condition
SOLD AS IS
USED – SHOWS NORMAL LAB WEAR
FUNCTIONALITY NOT TESTED
NO MOUNTING HARDWARE INCLUDED
⚠ HANDLING NOTE: Calcite is a soft, birefringent material. Handle with care. Do not touch optical surfaces. Use gloves to avoid contamination. Clean only with approved optical methods if absolutely necessary.
| Weight | 2 lbs |
|---|---|
| Dimensions | 6 × 3 × 3 in |
