Ion Beam Source Assembly Aluminum Port Plate

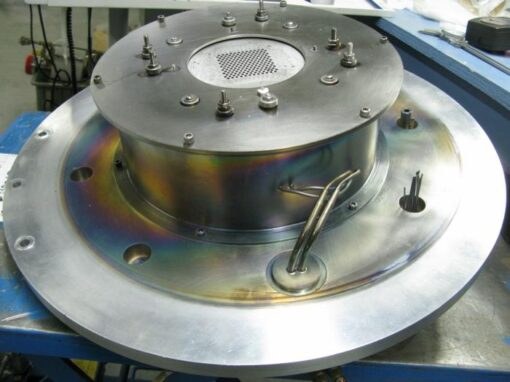

This is an Ion Beam Source Assembly Aluminum Port Plate.

Ion Beam Source Assembly is aluminum port plate mounted (21″ OD) and equipped with numerous feedthrus including:

– (3) multi pin electrical feedthrus
– (1) water cooling feedthru
– (1) gas inlet feedthru with manual .25″ Nupro valve
– (1) .25″ shaft rotary motion feedthru
– Granville Phillips 275 convectron gauge tube
– (1) 1.5″ viewable sight port
– (1) .75″ compression fitting
– (2) spare blank ports.

The assembly can be used as a start for installing a Ion Source in an existing vacuum chamber.
External connections power supplies etc. must be sourced through an alternate supplier.
***MPN
***OEM Custom
***SKU*** CM240
