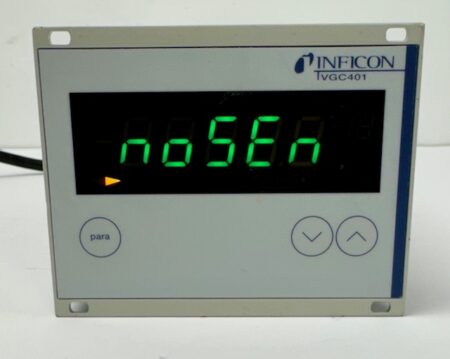

INFICON VGC401 Vacuum Controller

Overview

The INFICON Type VGC401 is a high-precision vacuum gauge controller designed for monitoring and controlling vacuum pressure in various industrial, scientific, and research applications. Known for its reliability and accuracy, the VGC401 is compatible with multiple vacuum gauge types, making it a versatile solution for complex vacuum systems.

---

Key Features

1. Wide Pressure Range
   • Supports monitoring from atmospheric pressure to ultra-high vacuum.
2. Multi-Gauge Compatibility
   • Works with a variety of vacuum gauges, including pirani, capacitance manometers, and cold cathode gauges.
3. Digital Display
   • Easy-to-read numeric and graphical pressure readouts.
4. Compact Design
   • Small footprint for seamless integration into laboratory or industrial setups.
5. User-Friendly Interface
   • Intuitive controls and programmable settings ensure ease of operation.
6. High Reliability
   • Built with durable materials to withstand demanding environments.
7. Advanced Communication Options
   • Includes analog output, RS232/485 interfaces for remote monitoring and control.

---

Specifications

Feature	Details
Pressure Range	Atmospheric pressure to ~10⁻⁹ mbar
Compatible Gauges	Pirani, cold cathode, thermocouple, etc.
Display Type	Backlit digital LCD or LED
Input Power	100-240V AC, 50/60Hz
Communication	RS232/485, analog output (0-10V)
Dimensions	Compact and rack-mountable
Weight	~2.5 kg (5.5 lbs)

---

Applications

1. Vacuum Coating Systems
   • Ensures optimal vacuum levels for thin-film deposition.
2. Semiconductor Processing
   • Monitors critical vacuum parameters in wafer fabrication.
3. Scientific Research
   • Used in laboratory experiments requiring precise vacuum control.
4. Industrial Vacuum Systems
   • Tracks performance in leak detection and gas handling systems.
5. Mass Spectrometry
   • Regulates vacuum levels for accurate ion measurement.

---

Advantages

1. High Accuracy
   • Delivers precise pressure readings across a wide range.
2. Multi-Gauge Support
   • Reduces the need for multiple controllers.
3. Customizable Settings
   • Programmable alarms and thresholds enhance operational safety.
4. Ease of Use
   • Simple interface and versatile connectivity simplify system integration.
5. Robust Design
   • Withstands harsh environments and long-term use.

---

Limitations

1. Cost
   • Premium functionality may result in a higher initial investment.
2. Gauge Dependency
   • Requires compatible gauges for full functionality.
3. Learning Curve
   • Advanced features may need operator training for effective use.

---

Technical Summary

Attribute	Details
Response Time	Fast and reliable updates
Operating Temperature	10°C to 50°C (50°F to 122°F)
Calibration	Periodic calibration recommended
Mounting Options	Desktop or rack-mounted
Safety Features	Overpressure alarms, error diagnostics
