Product Description

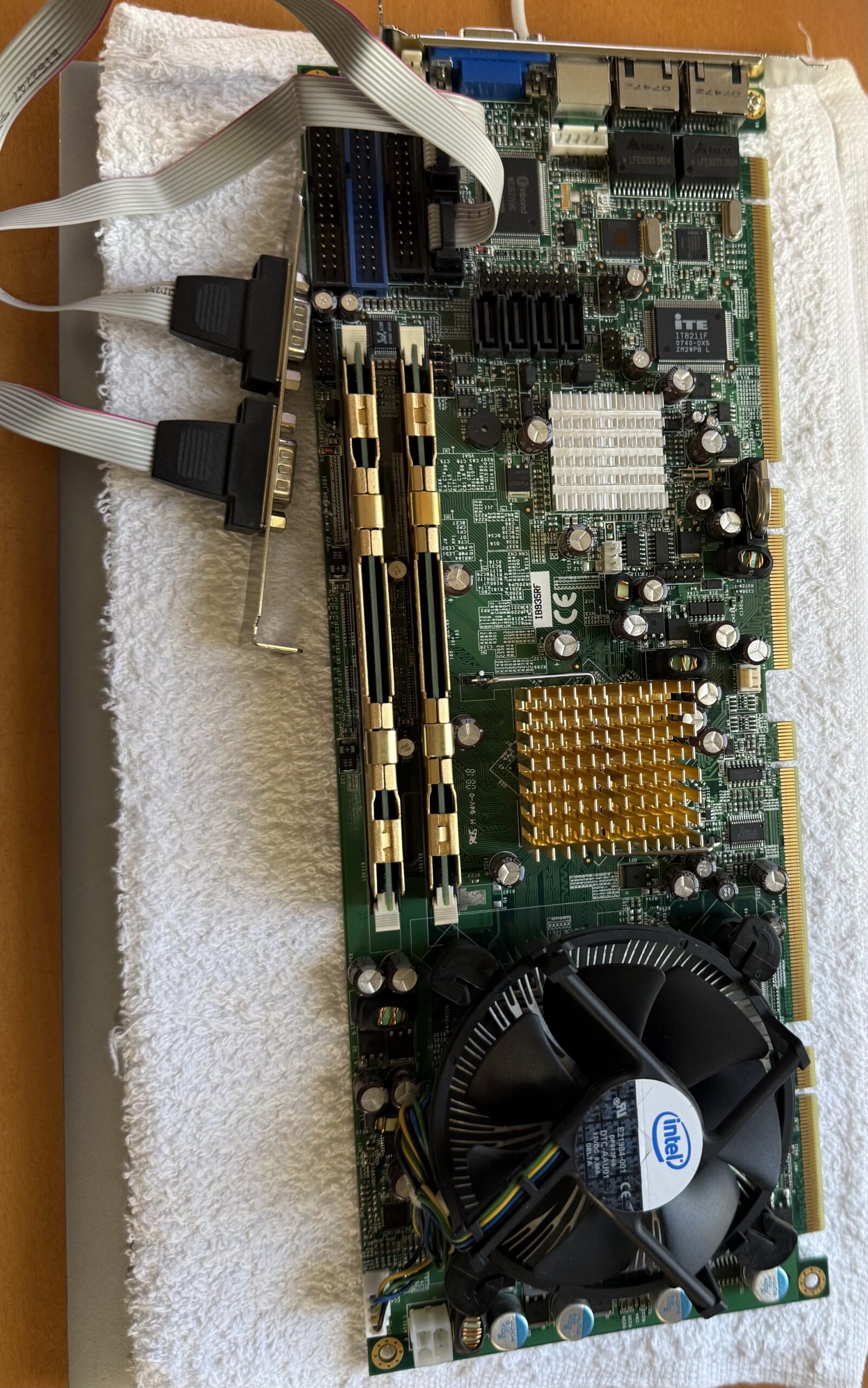

iBASE IB935RF PICMG 1.3 Full-Size CPU Card – LGA775 for Intel Core 2 Duo/Quad, Q35 Chipset, Dual Gigabit LAN, SATA RAID
This used iBASE IB935RF is a high-performance PICMG 1.3 (SHB Express) full-size single-board computer designed for industrial and embedded applications requiring robust expansion capabilities . It is a full-size CPU card (338mm x 126mm) that plugs into a PICMG 1.3 backplane, providing access to PCI Express and PCI expansion slots.
Powered by the Intel Q35 Express Chipset with the ICH9R I/O Controller Hub, this board supports a wide range of LGA775 processors, including Intel Core 2 Quad, Core 2 Duo, Pentium Dual-Core, and Celeron 400 Sequence CPUs on an 800/1066/1333 MHz front-side bus.
This card is the “RF” variant of the IB935 series, which distinguished itself from the standard IB935 (ICH9) by utilizing the advanced ICH9R south bridge. This upgrade provides support for RAID 0, 1, 0+1, and 5 across its four SATA II ports, as well as an additional second Intel Gigabit Ethernet controller . This makes the IB935RF a superior choice for applications requiring high data availability or dual network redundancy.
Condition Note: This unit is untested and sold as-is. It is a legacy component for industrial system repair or vintage computing projects. No CPU, RAM, I/O shield, cables, or backplane are included unless specified.
Key Specifications
| Specification | Details |
|---|---|
| Manufacturer | iBASE Technology |
| Model | IB935RF |
| Form Factor | PICMG 1.3 (SHB Express), Full-Size |
| Dimensions | 338mm x 126mm |
| Processor Socket | LGA775 |
| Supported CPUs | Intel Core 2 Quad / Core 2 Duo / Pentium DC / Celeron 400 (800/1066/1333 MHz FSB) |
| Chipset | Intel Q35 + ICH9R |
| Memory | 2x DDR2 DIMM (667/800MHz), Max 4GB, Dual-Channel |
| Integrated Graphics | Intel GMA 3100 (CRT support) |
| Ethernet | 2x Gigabit LAN (Intel 82566DM & 82574L) |
| Storage | 4x SATA II (3.0 Gb/s, RAID 0,1,5,10), 1x IDE (ITE IT8211F) |
| Rear I/O (Edge) | VGA, 2x RJ-45, PS/2 (KB/Mouse), 2x USB 2.0 |
| Onboard Headers | 4x USB 2.0, 2x COM (1x RS-232, 1x RS-232/422/485), LPT, FDD, IrDA, Audio |
| Expansion (via Backplane) | 1x PCIe x16, 4x PCIe x1, 4x PCI (via PCIe-to-PCI bridge) |
| Watchdog Timer | Yes, 256 segments, software programmable |
| Digital I/O | 4-in / 4-out |
| Power Requirement | ATX (via backplane), +5V, +3.3V, +12V |
| Operating Temperature | 0°C to 60°C |
| Condition | Used – Untested |
Key Features & Differentiation
| Feature | Benefit |
|---|---|
| PICMG 1.3 SHB Express Standard | Allows for high-speed PCIe expansion via a passive backplane, offering flexibility for custom I/O configurations . |
| Advanced ICH9R South Bridge | Differentiates the IB935RF from the standard IB935. Provides RAID support and a second GbE LAN port, making it ideal for server or gateway applications . |
| Dual Gigabit Ethernet | Supports dual network interfaces for gateway, security appliance, or redundant network connectivity . |
| Core 2 Quad / Duo Support | Supports the powerful Intel Core 2 Quad processors, offering significant processing power for legacy industrial applications . |
| Legacy & Modern I/O | Retains legacy ports (LPT, FDD, COM) while integrating modern high-speed interfaces (PCIe, SATA II, USB 2.0), providing bridging capability for system upgrades . |
| Hardware Monitoring & Watchdog | Built-in Winbond W83627EHG I/O chip ensures system reliability through voltage/temperature monitoring and a hardware watchdog timer for unattended operation . |
Applications
-
Industrial Automation: As a replacement or upgrade for the main computing core in industrial control systems .
-
Network Security Appliances: Dual GbE ports make it suitable for legacy firewalls, VPN gateways, or network intrusion detection systems .
-
Server & Storage: The ICH9R RAID controller allows for configuration as a legacy RAID server for data redundancy .
-
Test & Measurement: Powerful Core 2 Quad support provides a robust platform for data acquisition and analysis systems.
-
Digital Signage & KIOSK: Integrated GMA 3100 graphics and dual display support for public information systems.
-
Legacy System Support: Serves as a direct replacement for failed cards in existing mission-critical industrial infrastructure.
| Weight | 7 lbs |
|---|---|
| Dimensions | 16 × 10 × 3 in |
