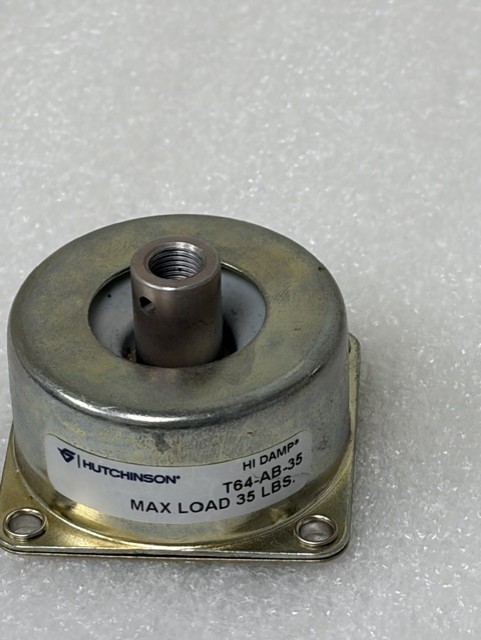

The Hutchinson (Barry Controls) T64-AB-35 is a T-Mount series vibration isolation mount designed to protect sensitive electronic, avionics, shipboard, vehicular, and industrial equipment from shock and vibration. It uses a Hi-Damp silicone resilient element to reduce vibration transmission and extend equipment life.
Key Specifications
| Specification | Value |
|---|---|
| Manufacturer | Hutchinson Aerospace / Barry Controls |
| Model | T64-AB-35 |
| Series | T64 T-Mount |
| Maximum Load | 35 lb (15.9 kg) per isolator |
| Natural Frequency | 15–40 Hz |
| Resilient Element | Hi-Damp Silicone |
| Maximum Transmissibility at Resonance | 4.0 |
| Approx. Free Height | 1.62 in |
| Compressed Height | 1.25 in |
| Extended Height | 1.94 in |
Applications
- Avionics and aerospace electronics
- Military and defense equipment
- Shipboard instrumentation
- Vehicle-mounted electronics
- Industrial control systems
- Sensitive test and measurement equipment
The T64 series is designed for all-attitude mounting and provides effective vibration isolation at frequencies above approximately 40 Hz while meeting demanding shock and vibration requirements.
| Weight | 1 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
