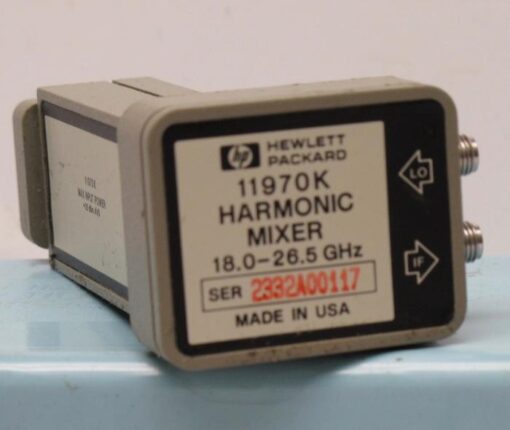

HP Agilent 11970K Harmonic Mixer, 18.0-26.5
$225.00
The Agilent 11970K waveguide mixer is a general-purpose harmonic mixer employing a dual-diode design to achieve flat frequency response and low conversion loss. These are achieved without external dc bias or tuning stubs. Manual operation and computer-controlled hardware operation are simplified because mixer bias and tuning adjustment are not required.
The 11970K extends the frequency range of the Agilent E4407B ESA-E series portable spectrum analyzer, the Agilent 8560 E-series portable spectrum analyzers, the Agilent 8566B spectrum analyzer (used with the Agilent 11975A amplifier), and the Agilent 70000 modular measurement system (used with the Agilent 70907A/B external mixer interface modules).
This unit has the following features:
Flat frequency response
Low conversion loss
No bias or tuning adjustments
100 mW safe input level
Serial #’s available upon request.
***MPN 11970K
***OEM Hewlett Packard ( HP ) / Agilent
***SKU*** 14275
2 in stock
CompareThe Agilent 11970K waveguide mixer is a general-purpose harmonic mixer employing a dual-diode design to achieve flat frequency response and low conversion loss. These are achieved without external dc bias or tuning stubs. Manual operation and computer-controlled hardware operation are simplified because mixer bias and tuning adjustment are not required.
The 11970K extends the frequency range of the Agilent E4407B ESA-E series portable spectrum analyzer, the Agilent 8560 E-series portable spectrum analyzers, the Agilent 8566B spectrum analyzer (used with the Agilent 11975A amplifier), and the Agilent 70000 modular measurement system (used with the Agilent 70907A/B external mixer interface modules).
This unit has the following features:
Flat frequency response
Low conversion loss
No bias or tuning adjustments
100 mW safe input level
Serial #’s available upon request.
***MPN 11970K
***OEM Hewlett Packard ( HP ) / Agilent
***SKU*** 14275
| Dimensions | 16 × 10 × 1 in |
|---|
