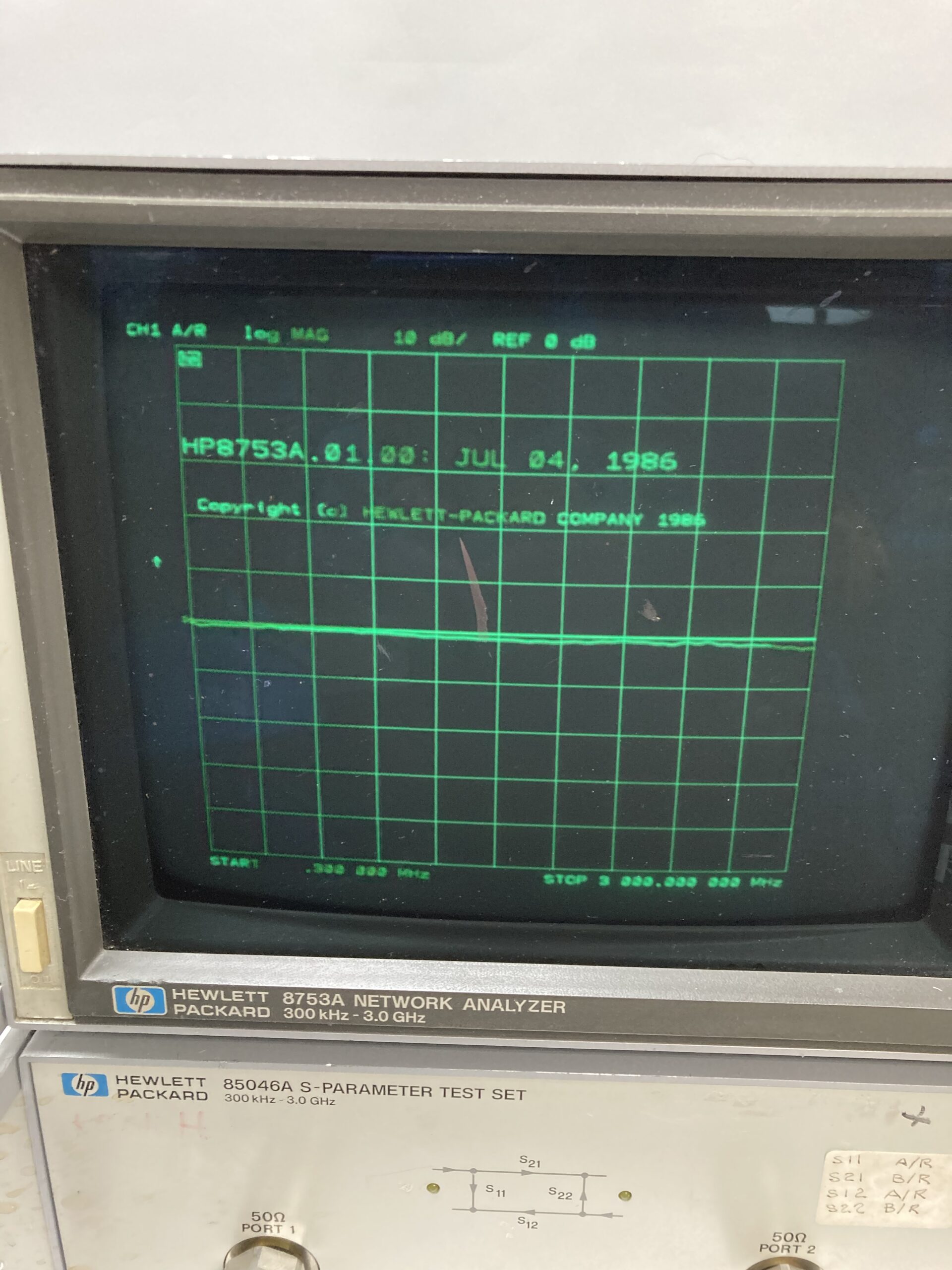

Hewlett Packard 8753A Network Analyzer with 85046A S-Parameter Test Set; 300kHz – 3.0GHz

The Hewlett Packard (HP) 8753A Network Analyzer is a versatile instrument designed for RF and microwave network analysis. It provides a wide range of measurement capabilities, including impedance, insertion loss, return loss, and S-parameters. This analyzer is a reliable solution for engineers working in research, development, and production environments.

Key Specifications:

• Frequency Range: 300 kHz to 3 GHz.
• Dynamic Range: Greater than 100 dB.
• Measurement Parameters: S-parameters (S11, S21, S12, S22), return loss, insertion loss, and phase.
• Output Power Range: -10 dBm to +10 dBm.
• Display: Built-in CRT with dual-channel display for simultaneous parameter visualization.
• Interfaces:
  • GPIB for remote control and data logging.
  • Printer and plotter support.

Features and Benefits:

1. Comprehensive Network Analysis:
   • Measures a wide range of parameters, including S-parameters and impedance.
2. Wide Frequency Coverage:
   • Ideal for applications across the RF and microwave spectrum.
3. High Dynamic Range:
   • Enables accurate measurements even in challenging environments with high noise levels.
4. Built-in Display:
   • CRT screen provides clear and simultaneous visualization of multiple measurement parameters.
5. Marker Functions:
   • Multiple markers for detailed analysis of specific frequency points or ranges.
6. Automation Support:
   • GPIB interface allows for seamless integration into automated test setups.
7. Calibration Capability:
   • Supports calibration techniques to ensure high measurement accuracy.

Applications:

• Component Characterization:
  • Measurement of filters, amplifiers, and other RF components.
• Antenna Testing:
  • Analysis of antenna performance and impedance matching.
• System Debugging:
  • Troubleshooting and optimizing RF and microwave systems.
• Production Testing:
  • Automated testing of RF components for quality assurance.

Why Choose the HP 8753A Network Analyzer?

The HP 8753A is a proven tool for accurate and reliable RF network analysis. With its robust features, broad frequency range, and high dynamic range, it is an excellent choice for engineers in design, development, and manufacturing environments.
