HP 5086-7314 Yig Tuned Oscillator 2.3-6.1GHz

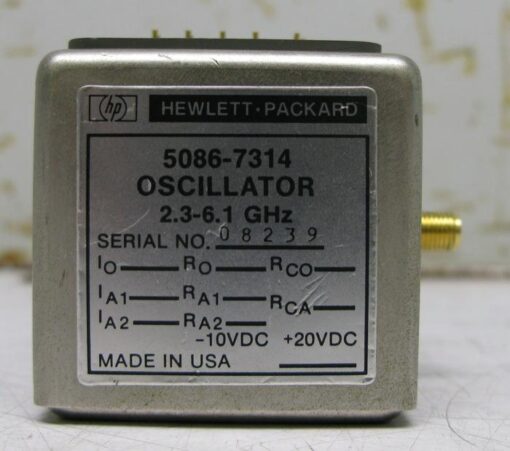

Hewlett Packard 5086-7314 Yig Tuned Oscillator

Specs on this unit are:

Absolute Maximum Ratings:
Supply Voltage, V+ = 22 Volts
Supply Voltage, V- = 12 Volts
Tuning Coil Current = 500 mA
FM Coil Current = 500 mA
Oscillator Current, Io = 30 mA
Amplifier Current, Ia1 = 36 mA
Amplifier Current, Ia2 = 36 mA

Electrical Characteristics:
V+ = 20 +/- 0.25 Volts
V- = 10 +/- 0.25 Volts

FM Coil Sensitivity = 180 – 220 kHz/mA
Tuning Coil Sensitivity = 23 – 25 mA/GHz
***MPN 5086-7314
***OEM Hewlett Packard ( HP ) / Agilent
***SKU*** 13214
