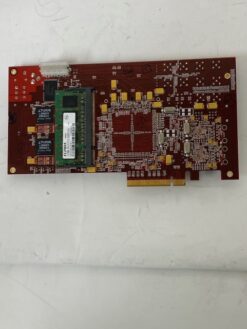

HiTech Global HTG-V5-PCIe Board

The HTG-V5-PCIe is a PCI Express FPGA development platform from HiTech Global, built around a Xilinx Virtex-5 FPGA. It is typically used for high-speed digital design, prototyping, and signal processing applications.

Key Features (based on visuals and typical specs for HTG-V5-PCIe):

• Main FPGA: Xilinx Virtex-5 (likely an FX70T, FX130T, or similar depending on variant)

• Interface: x8 PCI Express edge connector

• Memory: Onboard DDR2/DDR3 SODIMM slot

• I/O:

  • Multiple SMA connectors for high-speed I/O or clocking

  • USB connectors (possibly for JTAG or communication)

  • ATX power input

• Power Regulation: Uses Linear Technology power modules (visible LT parts)

• Expansion: Likely includes FMC or HiTech’s custom I/O headers

Applications:

• High-speed data acquisition

• Digital signal processing

• Custom PCIe card prototyping

• Communication systems (e.g., SDR, protocol emulation)

• Hardware acceleration and co-processing

*****SOLD AS IS.  We are unable to test.
