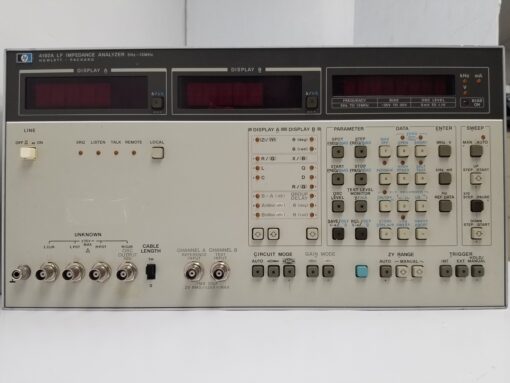

Hewlett Packard Impedance Analyzer 4192A for PARTS/REPAIR

The Hewlett Packard 4192A Impedance Analyzer is a precision instrument designed to measure impedance, admittance, and related parameters of electronic components and circuits. Renowned for its accuracy and versatility, the 4192A is ideal for R&D, production testing, and quality control in the electronics industry.

Key Specifications:

• Manufacturer: Hewlett Packard (HP)
• Model Number: 4192A
• Frequency Range: 5 Hz to 13 MHz
• Impedance Measurement Range:
  • 10 mΩ to 10 MΩ (typical)
• Basic Accuracy: ±0.1%
• Measurement Parameters:
  • Impedance (Z), Admittance (Y), Capacitance (C), Inductance (L), Resistance (R), Conductance (G), Quality Factor (Q), Dissipation Factor (D), Phase Angle
• Measurement Speed: Up to 10 measurements per second
• Display:
  • Digital display with numeric and graphical outputs
• Interfaces: GPIB (General Purpose Interface Bus)
• Power Requirements: 100-240V AC, 50/60 Hz

Features and Benefits:

1. Wide Frequency Range:
   • Covers 5 Hz to 13 MHz, enabling analysis of a wide range of components.
2. High Accuracy:
   • ±0.1% basic accuracy ensures precise and reliable measurements.
3. Comprehensive Parameter Measurement:
   • Measure impedance, capacitance, inductance, resistance, and related parameters in one instrument.
4. Fast Measurement Speed:
   • High-speed capabilities make it suitable for production environments.
5. User-Friendly Interface:
   • Intuitive controls and clear display for easy operation.
6. GPIB Connectivity:
   • Facilitates data logging and remote operation for automated testing.

Applications:

• Component Testing:
  • Characterize capacitors, inductors, resistors, and other passive components.
• Circuit Analysis:
  • Measure and analyze circuit impedance and admittance.
• Material Science:
  • Study dielectric and magnetic material properties.
• Production Testing:
  • Verify the quality of components and assemblies during manufacturing

Why Choose the HP 4192A?

The Hewlett Packard 4192A Impedance Analyzer combines precision, flexibility, and ease of use, making it a trusted tool for engineers, researchers, and technicians. Its broad frequency range and comprehensive parameter measurement capabilities ensure it meets the demands of various applications.
