Hewlett Packard 8664A Signal Generator 0.1-3GHz for PARTS/REPAIR

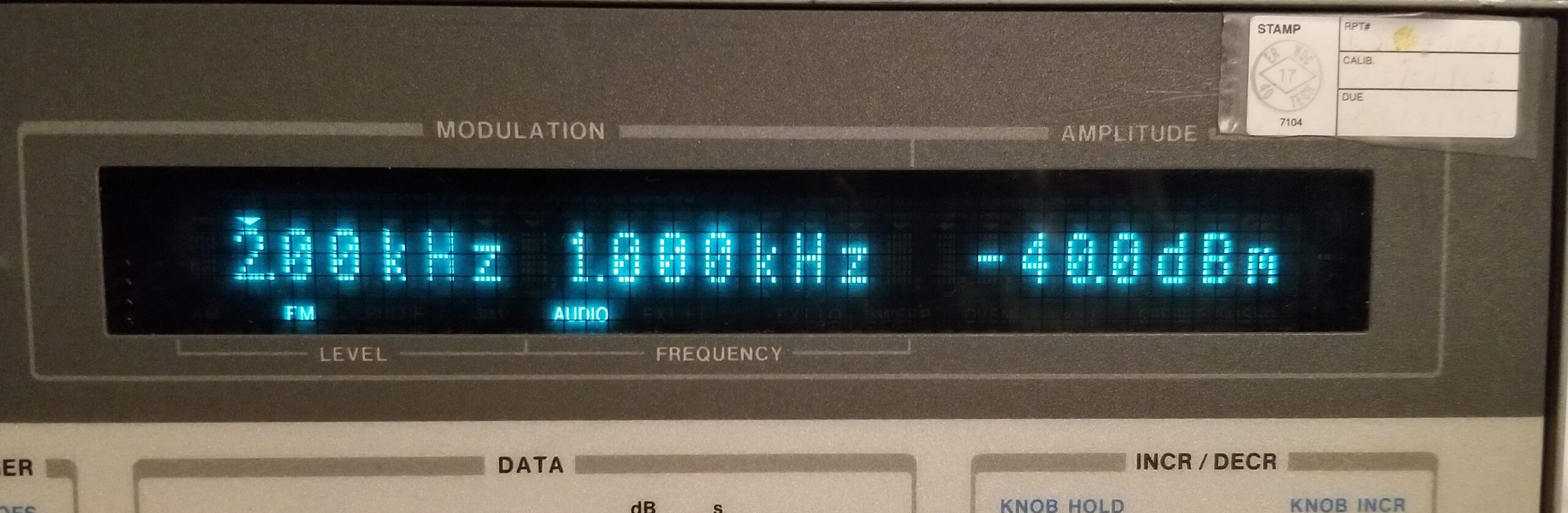

Hewlett Packard 8664A Signal Generator 0.1-3GHz for PARTS/REPAIR. Unit powers on. Display slightly dim. Fan clean and quiet. Unit remains in calibration mode for an extended period (10-15 minutes) warm or cold and will not accept any keystrokes during that time. After all calibration sequences are complete, the display shows : Result Code 2404311 but no error codes. The unit will then accept keystrokes for all data entry and the rotary encoder functions well. Basic signal generator functionality: RF output (attenuator action good), AM internal modulation, FM internal modulation all appear to be O.K. throughout the instrument’s bandwidth. Other repair/maintenance related issues may be present. This item will require an oversized box and extra packing to avoid possible transit damage. Shipping cost may be high. In person pick up or arrange your own transportation is preferred. As shown.

OPT.004

The HP 8664A is a high-performance synthesized signal generator, designed for RF and microwave testing applications requiring low phase noise, high output power, and precise frequency control. With a frequency range of 0.1 Hz to 3.0 GHz, this signal generator is widely used in communications, radar, electronic warfare (EW), and component testing.

Key Features:

• Frequency Range: 0.1 Hz to 3.0 GHz
• Frequency Resolution: 0.1 Hz steps
• Output Power Range: -140 dBm to +17 dBm (typical)
• Phase Noise: Ultra-low phase noise for precision testing
• Modulation Capabilities:
  • AM, FM, and Pulse Modulation
  • External and internal modulation sources
  • High-accuracy modulation depth and deviation
• Spectral Purity: Low spurious and harmonic distortion
• Output Impedance: 50Ω (Type N connector)
• User Interface: Digital display with soft key navigation
• Remote Control & Automation: GPIB (IEEE-488) interface for automated testing

Applications:

• RF and Microwave Component Testing
• Receiver Sensitivity and Performance Evaluation
• Military and Aerospace Signal Simulation
• Phase Noise Testing
• Radar and Communications System Development

The HP 8664A delivers exceptional signal purity and precision, making it a trusted tool in R&D, production, and maintenance environments where high-stability signal generation is required.
