HP 85110A S-parameter test set

Product Description

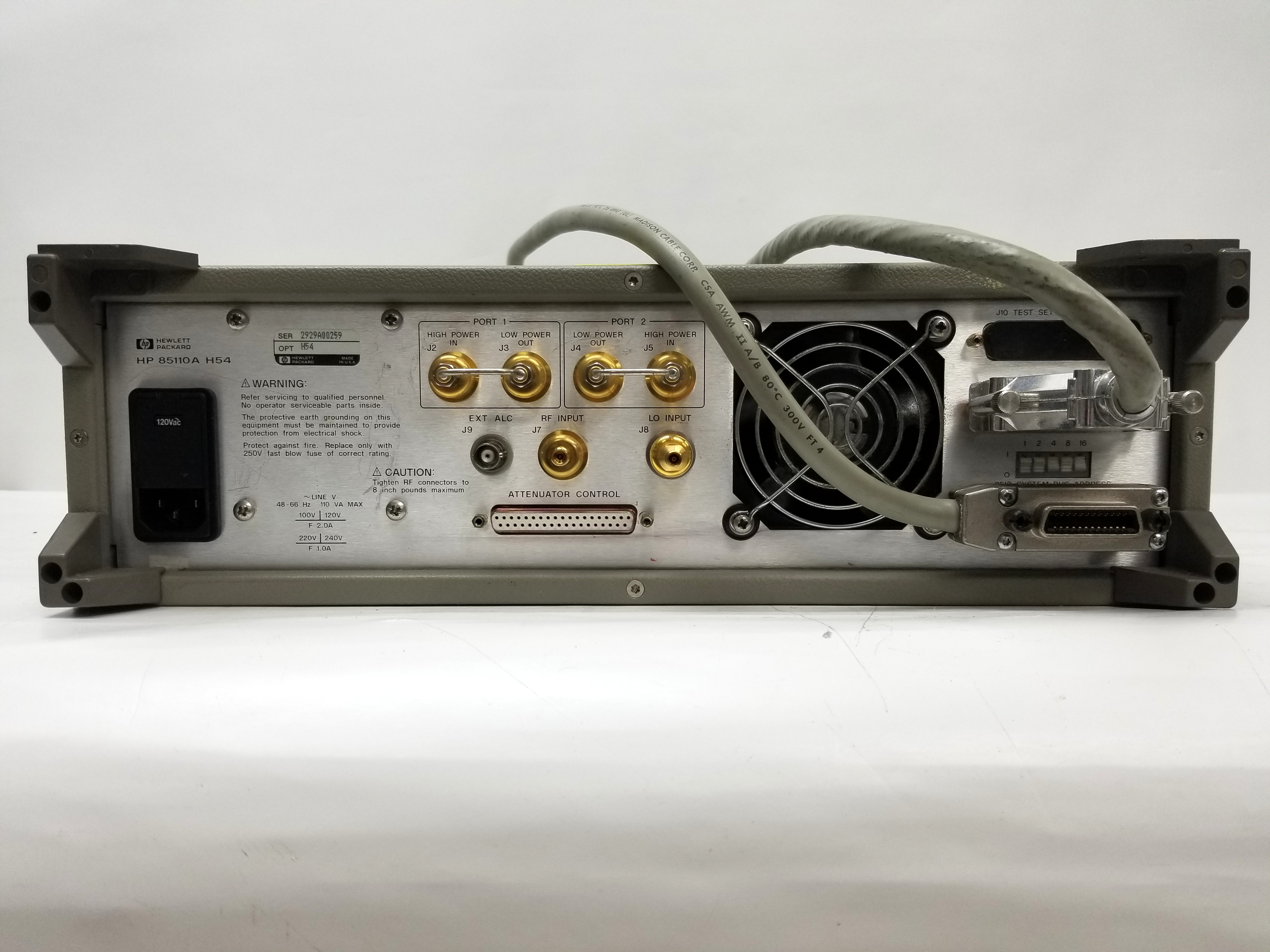

Hewlett Packard 85110A S-Parameter Test Set (Option H54)

This is a critical modular component for the renowned HP 8510 Vector Network Analyzer (VNA) system. The 85110A test set, when combined with a mainframe and signal source, enables full two-port S-parameter measurement of RF and microwave devices.

Key Features (with Option H54):

• Function: Enables full 2-port S-parameter testing (S11, S21, S12, S22)

• Frequency Range: Dependent on mainframe & source (typically up to 26.5 GHz or higher)

• Option H54: Likely includes high-frequency or enhanced performance components

• Compatibility: Requires HP 8510 series mainframe (e.g., 8510B/C), synthesizer source, and controller

• Measurement Types: Reflection & Transmission, Gain/Loss, Phase, Group Delay

Applications:

• Complete a legacy HP 8510 VNA system for R&D or production test

• Characterize filters, amplifiers, cables, and other RF components

• Maintain calibration and measurement capabilities for older, high-value test systems
