Hewlett Packard 548A I.C. Logic Clip

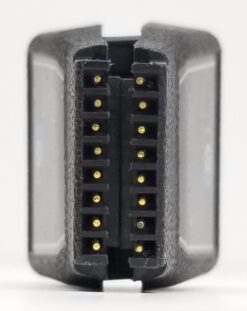

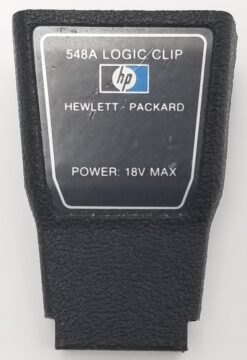

Hewlett Packard 548A I.C. Logic Clip. Powers on and checks O.K. *Vintage and rare. Originally introduced in 1977. Highly sought after by collectors and technicians alike. No copies or imitations are available at this time.



Product Overview:

The Hewlett Packard 548A I.C. Logic Clip is a precision test tool designed for in-circuit evaluation of integrated circuits. Engineered for high-impedance, non-intrusive testing, this logic clip offers reliable detection of digital logic levels in TTL and CMOS circuits. Its robust construction and ease of use make it an essential accessory for electronics troubleshooting, repair, and educational applications.

---

Key Specifications:

• Compatibility: Designed for integrated circuit (I.C.) testing in TTL and CMOS technologies
• Input Impedance: *High impedance to minimize circuit loading – exclusive circuitry engineered by H.P.
• Indicator: Provides clear visual feedback for logic state detection
• Connection Method: Secure clip mechanism for direct attachment to circuit pins up to 18 simultaneously
• Power Supply: 18V max or from D.U.T. power supply
• Form Factor: Compact, lightweight design for ease of use in the lab or field

---

Key Features:

• Precision Testing:
  • Accurately detects logic levels on integrated circuits without disturbing circuit operation.
• High Impedance Operation:
  • Minimizes loading effects, ensuring reliable readings in sensitive digital circuits.
• Robust Build:
  • Durable construction for long-term use in both laboratory and field environments.
• User-Friendly Design:
  • Simple clip mechanism allows quick and secure attachment for fast diagnostics.
• Versatile Application:
  • Ideal for troubleshooting, repair, and educational demonstrations in digital electronics.

---

Applications:

• Digital Circuit Troubleshooting:
  • Quickly diagnose logic faults on I.C. devices in circuit boards.
• Electronics Repair & Maintenance:
  • Essential for in-circuit testing without disassembling the device.
• Educational Laboratories:
  • A practical tool for teaching integrated circuit testing and digital logic fundamentals.

---

What’s Included:

• 1 x Hewlett Packard 548A I.C. Logic Clip

---

Why Choose the HP 548A I.C. Logic Clip?

The HP 548A I.C. Logic Clip provides a reliable, high-precision solution for integrated circuit testing. Its high-impedance design ensures accurate logic level detection without interfering with circuit operation, making it an indispensable tool for engineers, technicians, and educators in the field of digital electronics.

Originally introduced in 1977. Highly sought after by collectors and technicians alike. No copies or imitations are available at this time.
