Product Overview

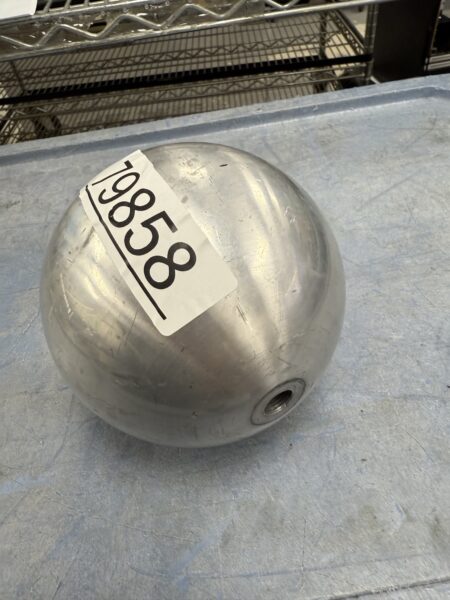

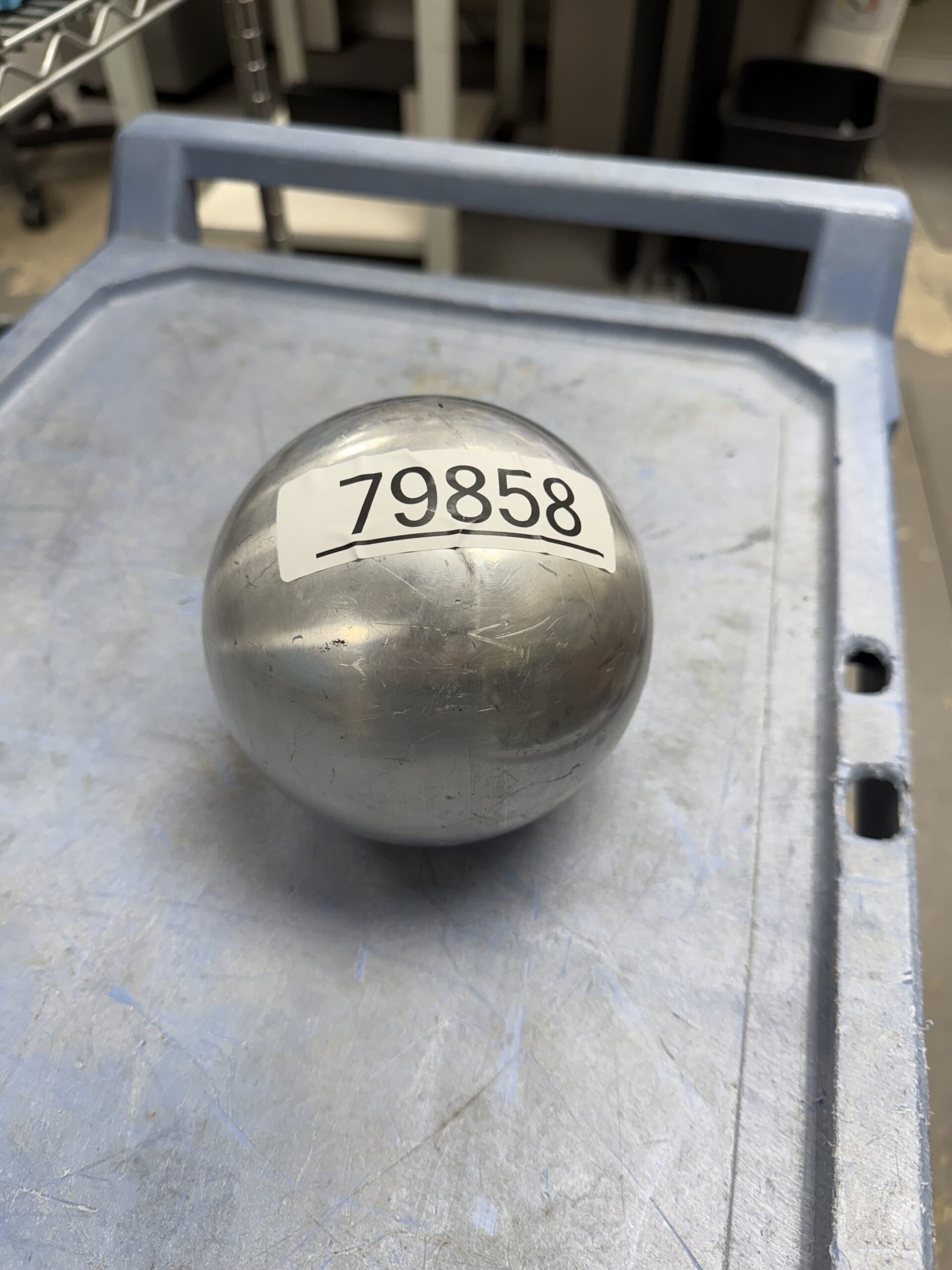

The Heavy-Duty Aluminum Vacuum Sphere is a precision-engineered chamber designed for high and ultra-high vacuum (UHV) applications critical to the electronics and semiconductor industries. Its robust aluminum construction provides a lightweight, corrosion-resistant, and contamination-free environment essential for processing and testing electron-sensitive components and materials.
Key Specifications
| Specification | Details |
|---|---|
| Material | High-grade aluminum (lightweight, excellent thermal conductivity, corrosion-resistant) |
| Vacuum Range | Capable of achieving ultra-high vacuum (UHV) levels, down to 10⁻⁹ Torr |
| Ports & Interfaces | Multiple access ports for vacuum gauges, electrical feedthroughs, gas inlets, and sensors |
| Sealing Mechanism | High-integrity, leak-proof flanges with Viton or metal seals |
| Mounting & Support | Heavy-duty base or custom mounting options available |
Key Features for Electronics Applications
-
Ultra-High Vacuum Performance: Essential for applications requiring contaminant-free environments, such as electron beam lithography and surface analysis.
-
Electrical Feedthrough Compatibility: Multiple ports allow for easy integration of high-voltage, signal, and thermocouple feedthroughs for powering and monitoring internal electronics.
-
Lightweight Aluminum Construction: Easier to handle and integrate into existing lab setups compared to heavier stainless steel chambers.
-
Leak-Tight Sealing: Ensures process integrity for sensitive electronic material processing.
-
Customizable Port Configuration: Can accommodate specific needs for sensor placement, gas delivery, or viewing windows.
Applications in Electronic Supplies & Related Fields
-
Electron Microscopy (SEM/TEM): As a sample chamber or vacuum housing for electron optics.
-
Vacuum Tube Processing: Degassing, evacuation, and testing of vacuum tubes, CRTs, and other electron devices.
-
Semiconductor R&D: Thin-film deposition (CVD, PVD), etching, and surface analysis requiring UHV.
-
Failure Analysis: Examining electronic components in a contaminant-free environment.
-
High-Voltage Testing: Testing insulators and other components in vacuum to prevent arcing.
-
Sensor Development: Housing and testing of vacuum-based sensors (e.g., MEMS, pressure sensors).
-
Space Hardware Simulation: Testing electronics and materials under space-like vacuum conditions.
Condition
SOLD AS IS
USED – SHOWS NORMAL WEAR (scuffs, minor surface marks)
VACUUM INTEGRITY NOT VERIFIED – may require leak testing
NO PUMPS, GAUGES, OR ACCESSORIES INCLUDED
PICTURE MAY NOT MATCH PRODUCT
⚠ VACUUM SYSTEM NOTE: This chamber requires proper pumping systems, gauges, and leak checking before use. Vacuum integrity cannot be guaranteed on used chambers without testing.
