Hartmann Electronic Open Frame 3U 34HP Chassis
Original price was: $4,200.00.$1,550.00Current price is: $1,550.00.
SKU: 83482
Open Frame cPCI, Serial, PXI, VME, VPX Chassis
1 in stock

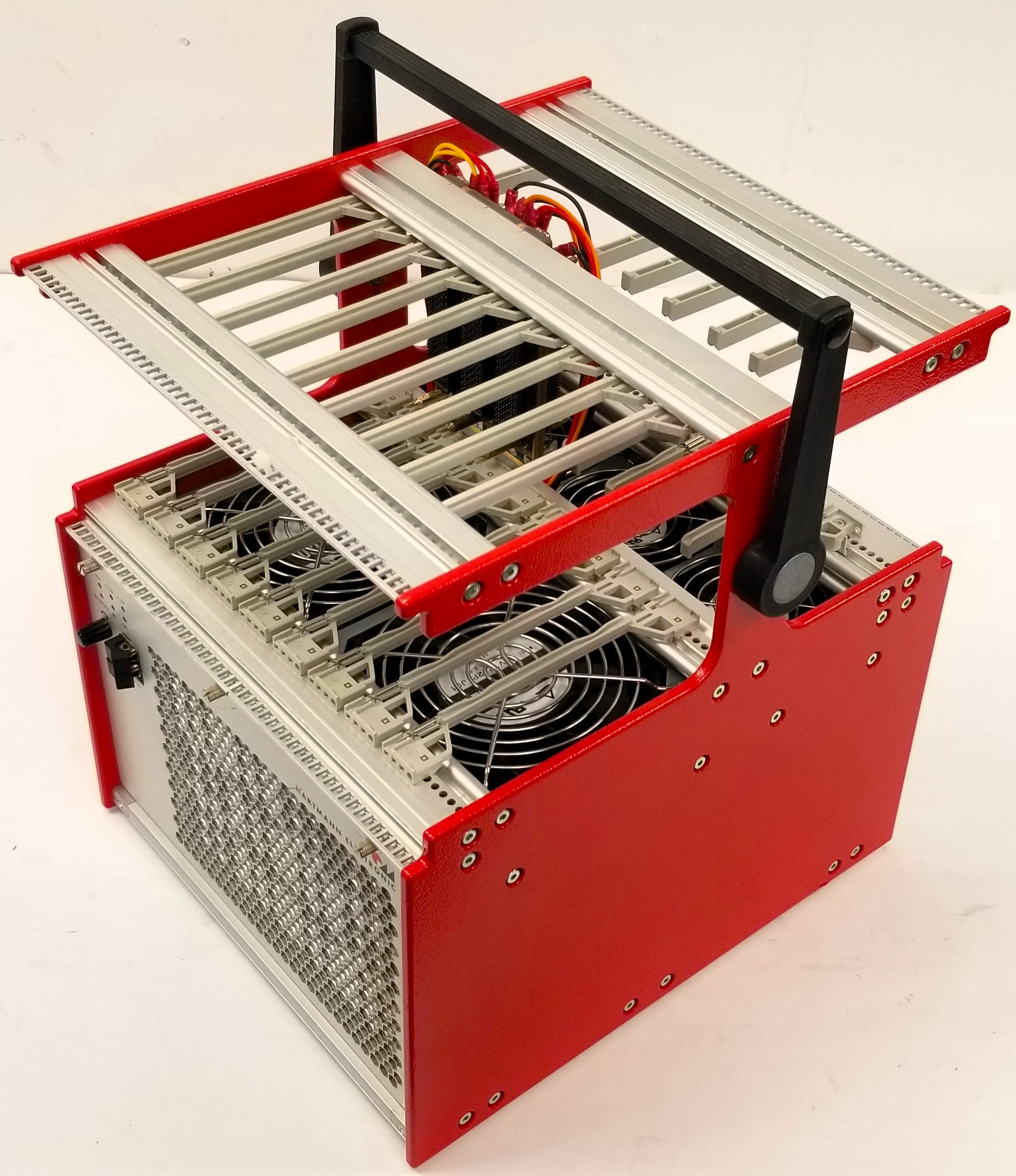

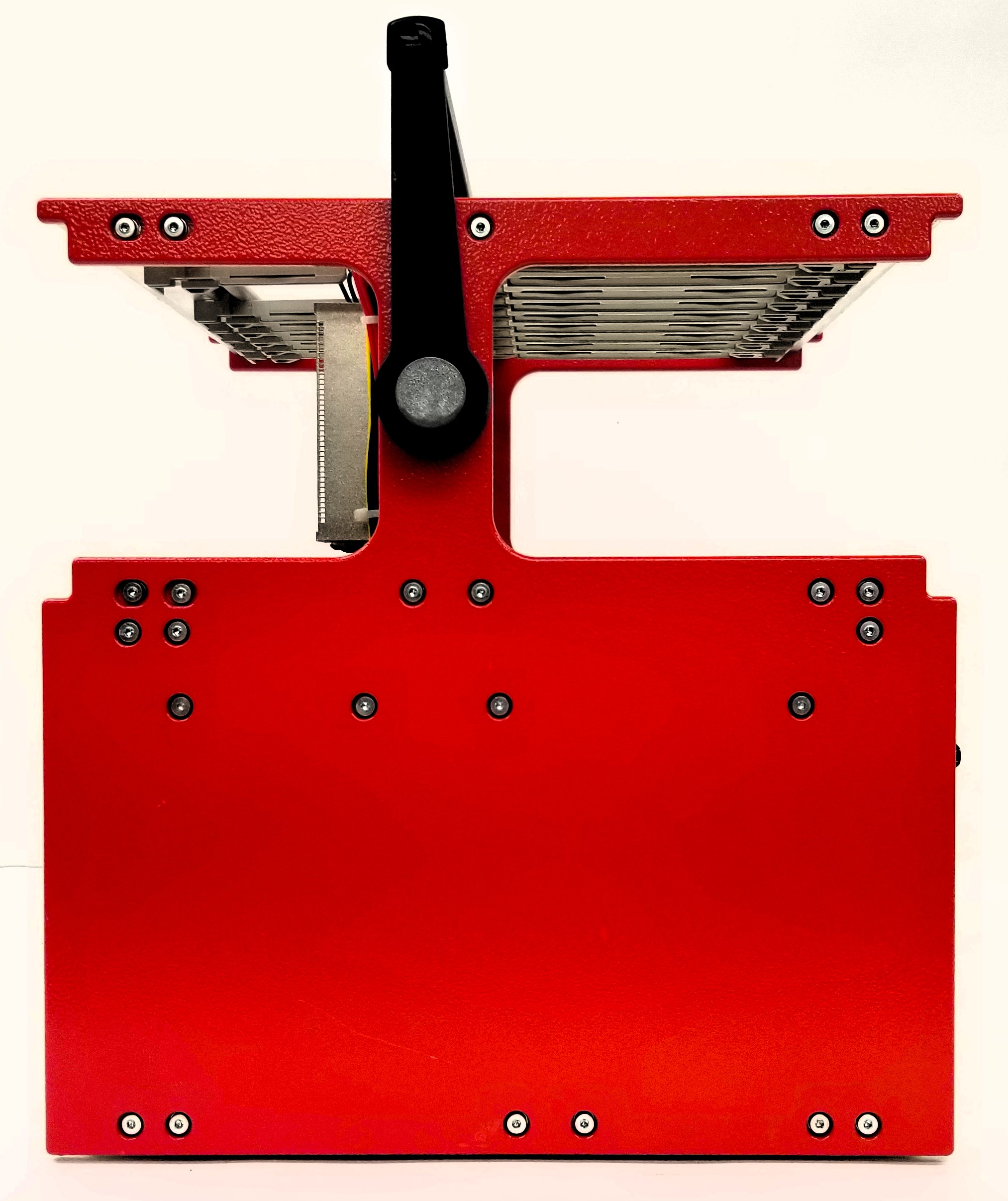

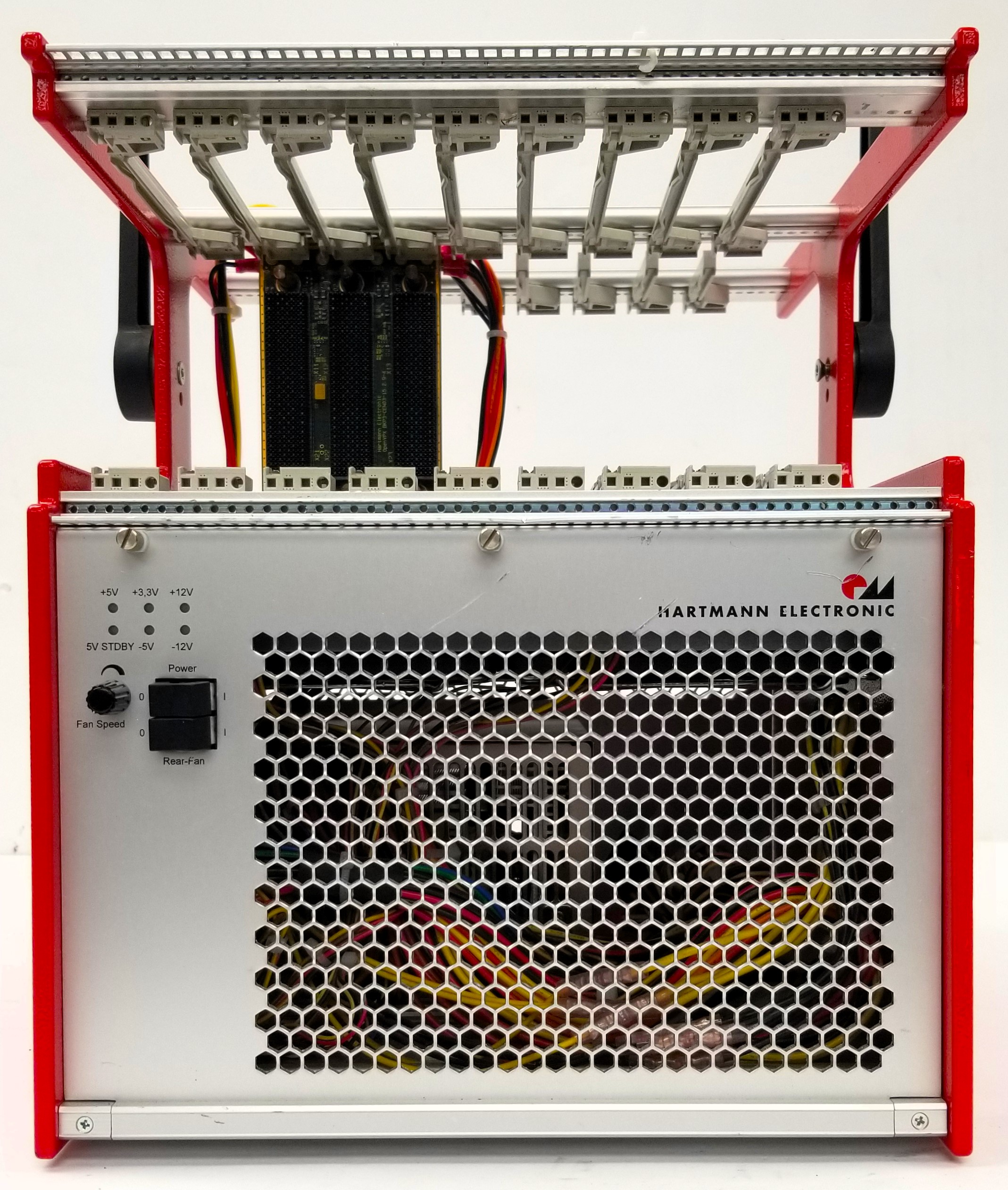

CompareHartmann Electronic Open Frame 3U 34HP Chassis. Very good condition. Powers on, fans clean and quiet. 3 Slots. Expandable up to 8. Extremely versatile multi-format compatible. No manual, cards, cables or other accessories. Purchaser responsible for system compatibility, any maintenance and proper set-up/use. As shown.
| Mounting | Desktop |
|---|---|
| Backplane | 3U, up to 8 slots (cPCI, Serial, PXI, VME, VPX) |
| Fan Tray | Internal with adjustable fan speed |
| No. of Fans | 1 front side fan 224CFM, 64dB(A), 3A, 2 rear side fans 80x80x25mm, 39CFM, 34dB(A), 0.23A |
| Airflow | Bottom to top |
| Power Supply Type | 300W ATX |
| Power Input | 90 – 264Vac |
| No. of Supplies | 1 |
| Output Voltages | 12V/22A, 3.3V/28A, 5V/35A, -12V/0.8A, minimum load: 5V/0.5A, 12V/0.5A |

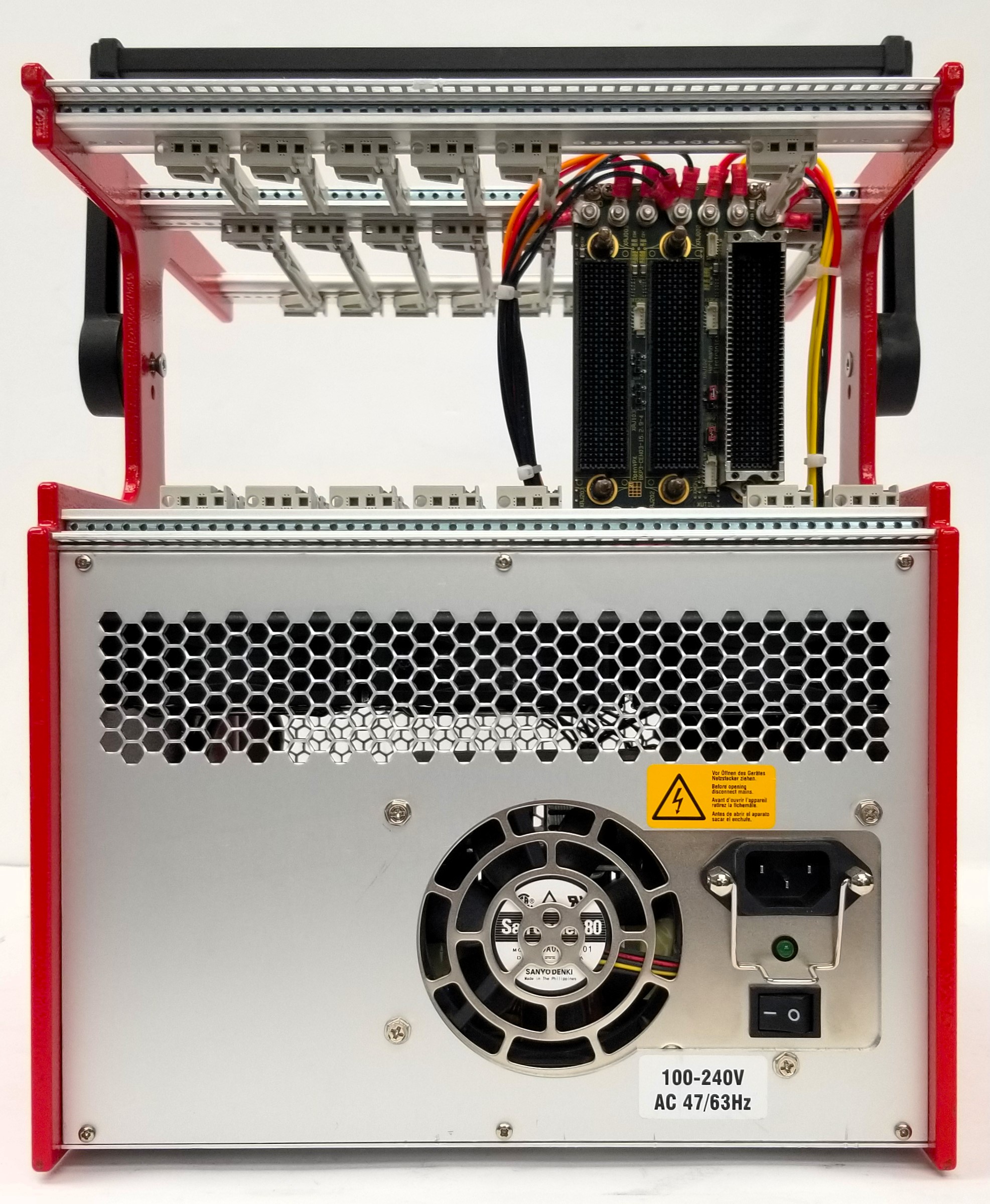

| Power Supply Connector | Rear side with switch |
| Chassis Height | 317 mm |
| Chassis Width | 34HP |
| Chassis Depth | 302 mm |
| IEEE | 1101.1 and 1101.10/11 |
| IEC | 60297-3-101, -102, -103 |
| Military Shipboard | MIL-STD-810F: 514.5C-15 (vibration) |
| Military Highway | MIL-STD-810F: 514.5 C-1 (vibration), 515.5-10 (shock) |
| Railway | EN 50155-EN 1373 class 1 B, rolling stock (shock/vibration) |
| Weight | 22 lbs |
|---|---|
| Dimensions | 14 × 14 × 14 in |
