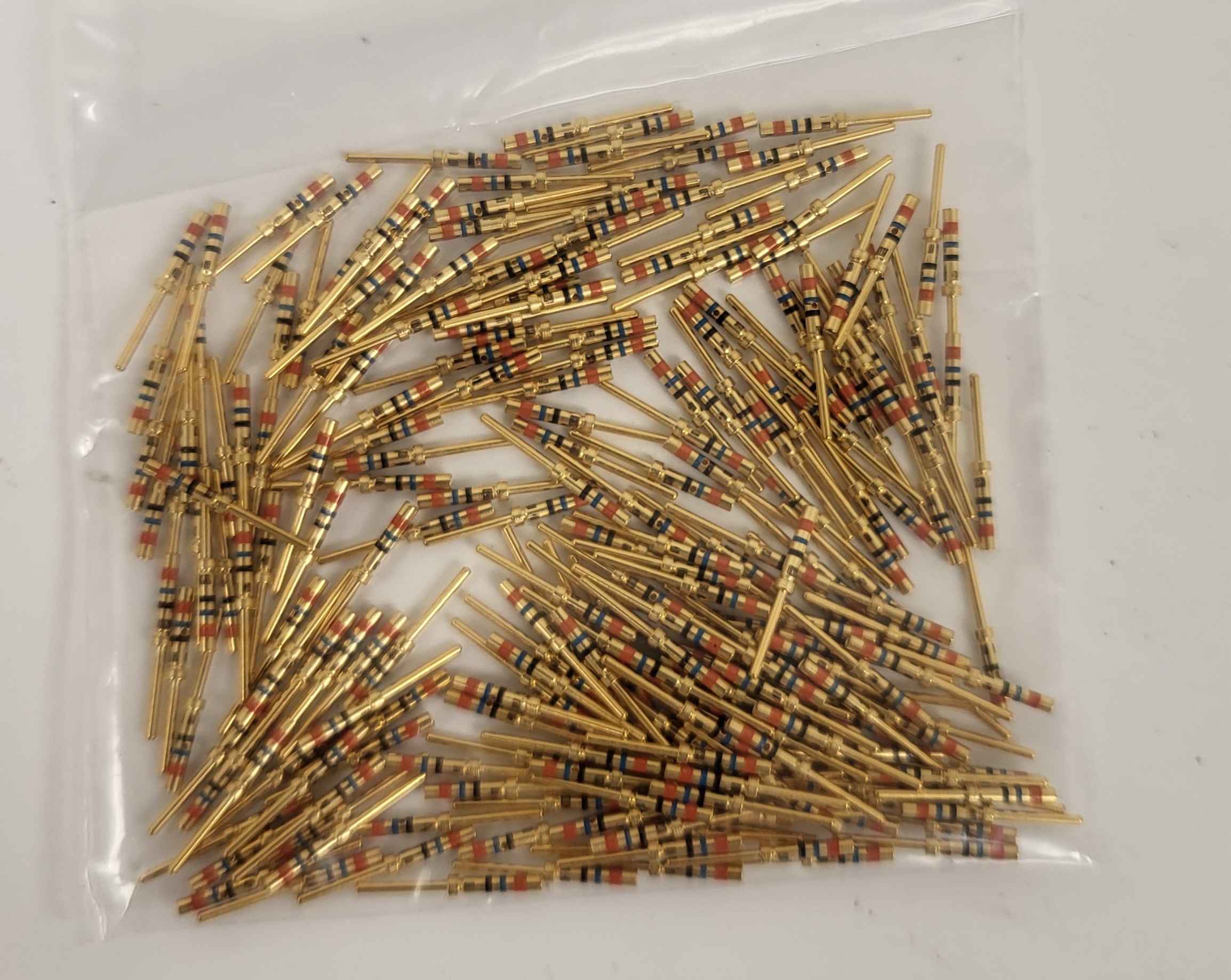

Glenair Mil Spec Contact Pin M39029/58-360 (LOT of 240)

The M39029/58‑360 (also Glenair 850‑002‑22‑360) is a standard‑duty, MIL‑C‑39029‑compliant 22D pin contact for use in MIL‑DTL‑38999 Series I, III & IV circular connectors.

🔧 Key Specifications

• Contact Type: Pin, crimp termination

• Contact Size: #22D (for 22–28 AWG wire)

• Material & Finish: Copper-alloy body with gold plating (~50 µ″ gold over 50–100 µ″ nickel, per Glenair spec)

• Compliance: MIL‑C‑39029/58; qualifies to MIL‑DTL‑38999 I–IV connector series

• Durability: Rated for 500 mating cycles; intended for defense, military, and aerospace use

🛠️ Mechanical & Dimensional Highlights

From Glenair and TE data:

• Wire Accommodation: 22–28 AWG (0.34–0.08 mm²)

• Contact Dimensions (approx):

  • Tip diameter ~0.041″, crimp section ~0.062″

  • Flat width ~0.011″ max; overall length ~0.300

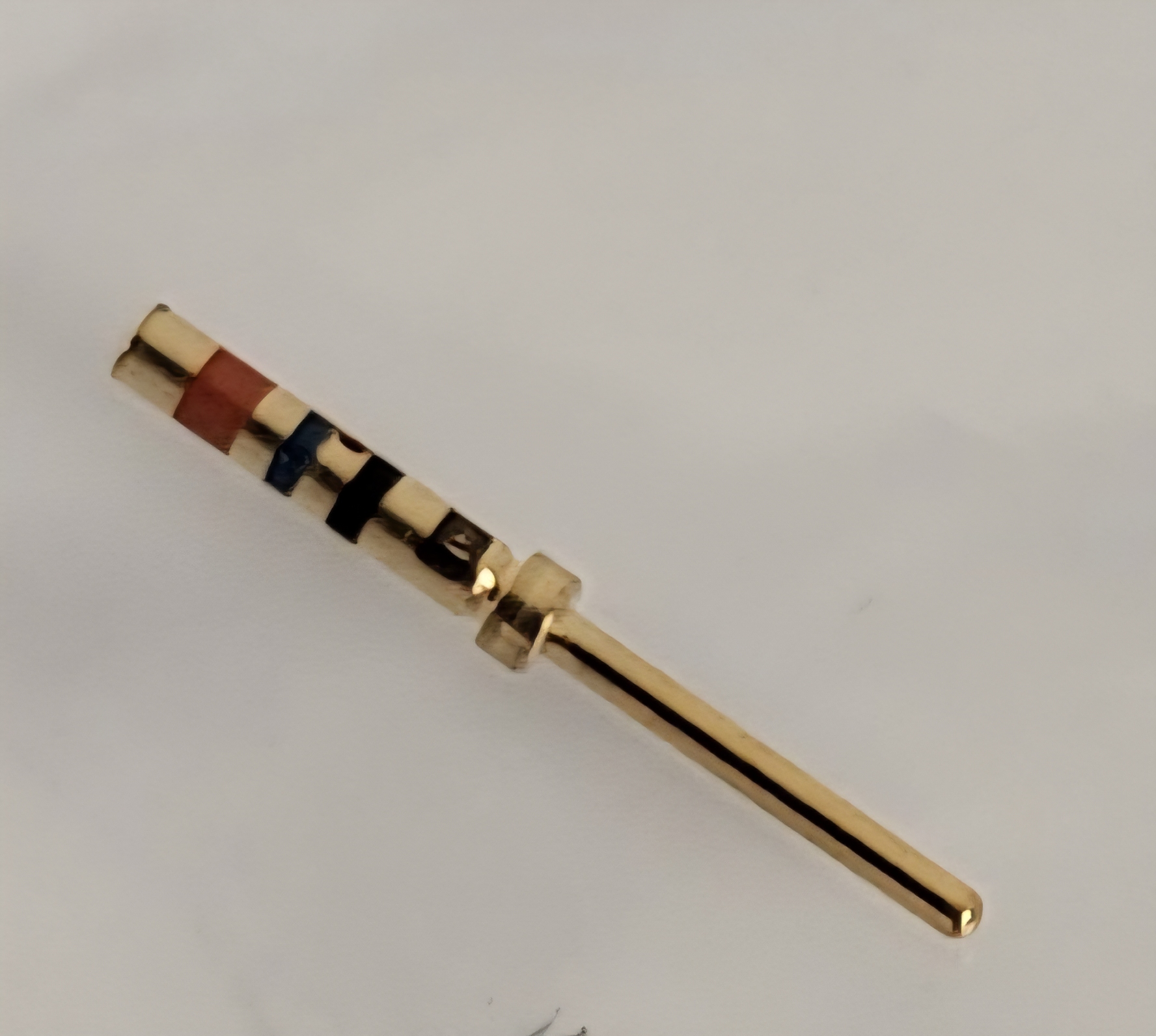

• Color coding (bands): Orange/Blue/Black for size 22

🛠️ Tool Compatibility

Crimp and insertion/extraction tooling per MIL standards:

• Crimp Tools: M22520/2‑01 or M22520/7‑01; die/positioner M22520/2‑09 or K42 (Daniels)

• Insertion Tool: M81969/14‑01 or M81969/8‑01

• Extraction Tool: M81969/14‑01 or M81969/8‑02

• The M39029/58‑360 is a MIL‑C‑39029-qualified, gold-plated, #22D pin contact for 22–28 AWG wires. Built for rugged, vibration-resistant MIL-DTL-38999 connector systems, it’s rated for ~500 mating cycles and uses standard MIL tooling.
