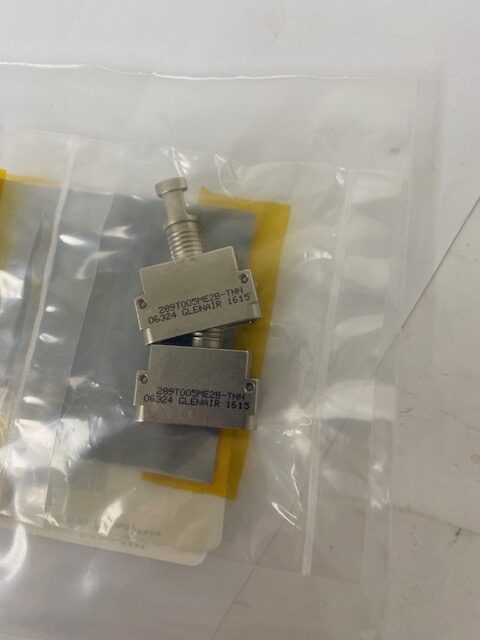

Glenair 289T005ME2B-TNN EMI Backshell – LOT OF 2

🔍 What It Is

• This is a top-entry, split-shell, low-profile EMI backshell designed for HiPer‑D rectangular connectors (Series 28: 280‑018P, 280‑019S, 280‑046P, 280‑047S)

• Lightweight machined aluminum alloy housing with stainless steel screws and overlapping seam for enhanced EMI shielding

• Non-environmental, elliptical cable entry aimed at space/aviation applications

🛠️ Decoding the Part Number: 289T005ME2B‑TNN

• 289T005 – Top-entry variant (as opposed to side-entry 289S005)

• ME – Electroless nickel finish (RoHS compliant)

• 2 – Shell size #2 (approx. 1.218″ × 0.550″)

• B – Cable entry size “B” (≈0.256″ × 0.256″) per specification table

• T – Strain relief “Qwik‑Ty” included

• NN – No slots and no EMI band included (standard configuration)

✅ Typical Applications

• Used for terminating braided cable shields to connector backshells.

• Widely utilized in aerospace and defense systems where EMI control and weight reduction are crucial.

• Compatible with optional Band‑Master™ ATS clamping band and Series 77 lipped heat‑shrink boots
