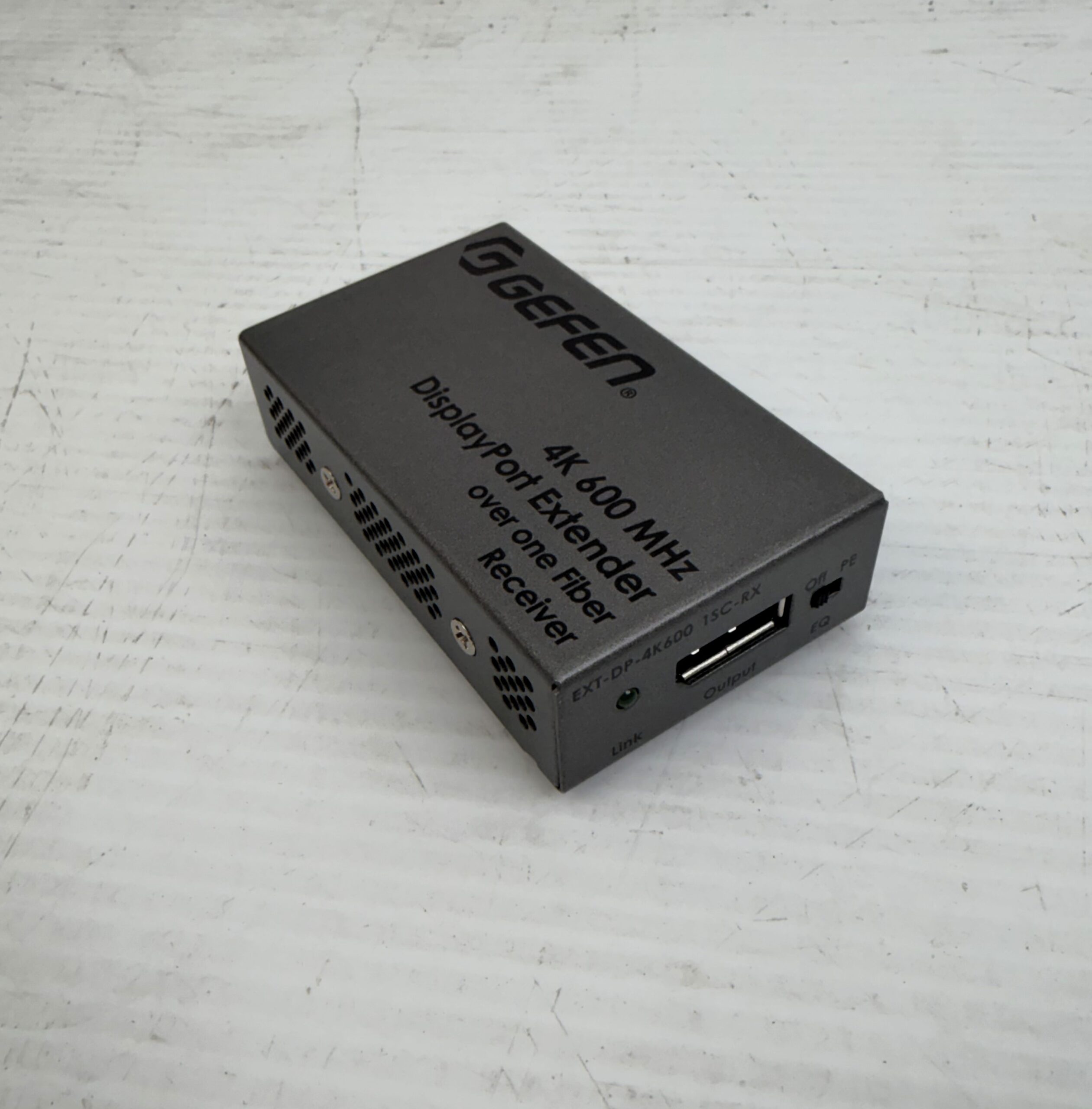

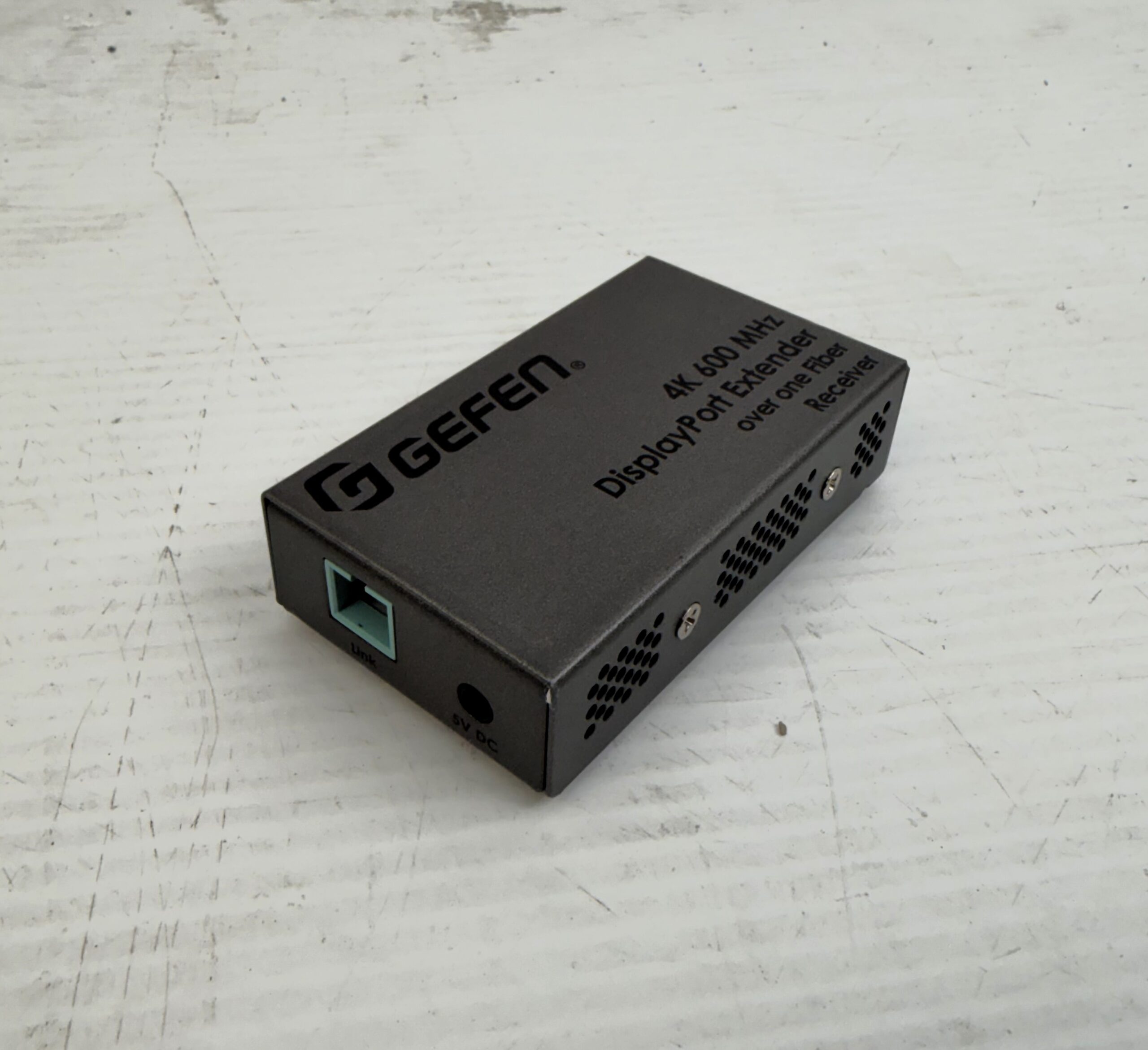

Gefen EXT-DP-4K600-1SC 4K 600 MHz DisplayPort 1.2
$800.00
Gefen 4K 600 MHz DisplayPort 1.2 fiber optic extender set.
1 in stock
CompareGefen EXT-DP-4K600-1SC 4K 600 MHz DisplayPort 1.2 Fiber Optic Extender Set is a professional AV signal extension solution designed to transmit uncompressed DisplayPort 1.2 video over a single multimode fiber optic cable. It supports full-bandwidth 4K video and is ideal for medical imaging, command and control centers, digital signage, industrial visualization, engineering workstations, and other applications requiring long-distance, high-quality video transmission. The extender consists of a transmitter and receiver that convert DisplayPort signals for transmission over fiber, allowing video, audio, and DisplayPort auxiliary data to travel up to 660 feet (200 meters) without signal degradation.
CONDITION: This unit is untested and sold as-is. Cosmetic wear may be present from previous use. Fiber optic cable, DisplayPort cables, power supplies, mounting hardware, manuals, and original packaging are included only if shown in the listing photos.
We have over 40 years of experience shipping sensitive scientific instruments & industrial equipment! Need help? Give us a call at 781-871-8868.
Key Specifications
| Specification | Details |
|---|---|
| Manufacturer | Gefen |
| Model | EXT-DP-4K600-1SC |
| Product Type | DisplayPort Fiber Optic Extender |
| Video Standard | DisplayPort 1.2 |
| Maximum Resolution | 4096 × 2160 @ 60 Hz (4:4:4) |
| Bandwidth | 600 MHz / 21.6 Gbps |
| Maximum Distance | Up to 660 ft (200 m) |
| Transmission Medium | Single SC-Terminated OM3/OM4 Multimode Fiber |
| HDCP Support | HDCP 2.2 / HDCP 1.4 |
| Additional Support | DisplayPort MST, Auxiliary Channel, DPCP |
| Applications | Medical Imaging, Digital Signage, Industrial Control, Broadcast, Command Centers |
| Dimensions | 1.75 × 0.87 × 3.13 in (each unit) |
| Weight | Approx. 4.8 oz (each unit) |
| Weight | 1 lbs |
|---|---|
| Dimensions | 9 × 7 × 1 in |
