Galleon Embedded Computing XSR-NAS-0201 Rugged NAS

Galleon Embedded Computing XSR-NAS-0201 Rugged NAS. No Drive, Cables, Manual or other accessories. Purchaser responsible for system compatibility, proper installation and any certification if required.



The Galleon XSR Rugged NAS offers superior performance
in an ultra-small form factor. Removable storage ensures
short ground times for airborne applications. Industry
standard solid-state drives are used to benefit from the
ever increasing storage densities and cost reductions as
the technology evolves.
The XSR NAS is capable of handling a high number of
simultaneous connections without compromising system
performance. Both optical 10Gb and traditional Gigabit
Ethernet optical or copper connections are available to suit
existing infrastructure.
Small Rugged NAS
The unit can be delivered with Windows Embedded
Storage Server, Linux Enterprise Server or FreeNAS SW
preconfigured to suit your application needs. An optional
AES 256-bit hardware encryption module provides a high
level of data security with flexible key loading options,
including physical key tokens through front panel key
loading port and remote loading over a secure network
connection.
Galleon Embedded Computing’s quality management
system is certified to Aerospace Standard AS/EN
9100:2016 and ISO 9001:2015.

KEY FEATURES:

 Small: 156 x 175 x 103mm (conduction cooled)

 Up to 13 GbE ports (or 1000Base-T)

 Up to 8 10Gbit Ethernet ports (optical)

 SMB/CIFS, NFS, AFP, FTP, HTTP and rsync

 RAID 0, 1 and 5 support

 Optional hardware AES-256 encryption

 GPS unit for date and time synchronization

 Up to 40TB SLC or 80TB MLC removable solid-state storage

 Wide input 16-40V DC input power

 Rugged conduction or air cooled designs

 Windows, Linux or BSD

APPLICATIONS:

 UAVs, UGVs

 Surveillance

 Flight management

 Map systems

 Cockpit information systems

BENEFITS:

 SWaP optimized

 High performance

 Flexible and scalable

 Rugged design

Network:

 Up to 13 GbE ports (1000Base-T)
 Up to 8 10Gbit Ethernet ports (optical) Storage
 Up to 40TB SLC removable SSD
 Up to 80TB MLC removable SSD
 RAID modes 0, 1 and 5
 Supported file systems: EXT4, UFS, FAT, NTFS
 Exported file systems: SMB/CIFS, NFS, AFP, FTP, HTTP and rsync
 Certified FIPS 140-2 encryption (AES-256)

Monitoring:

 SMART
 SNMP
 Syslog Front Panel Interfaces

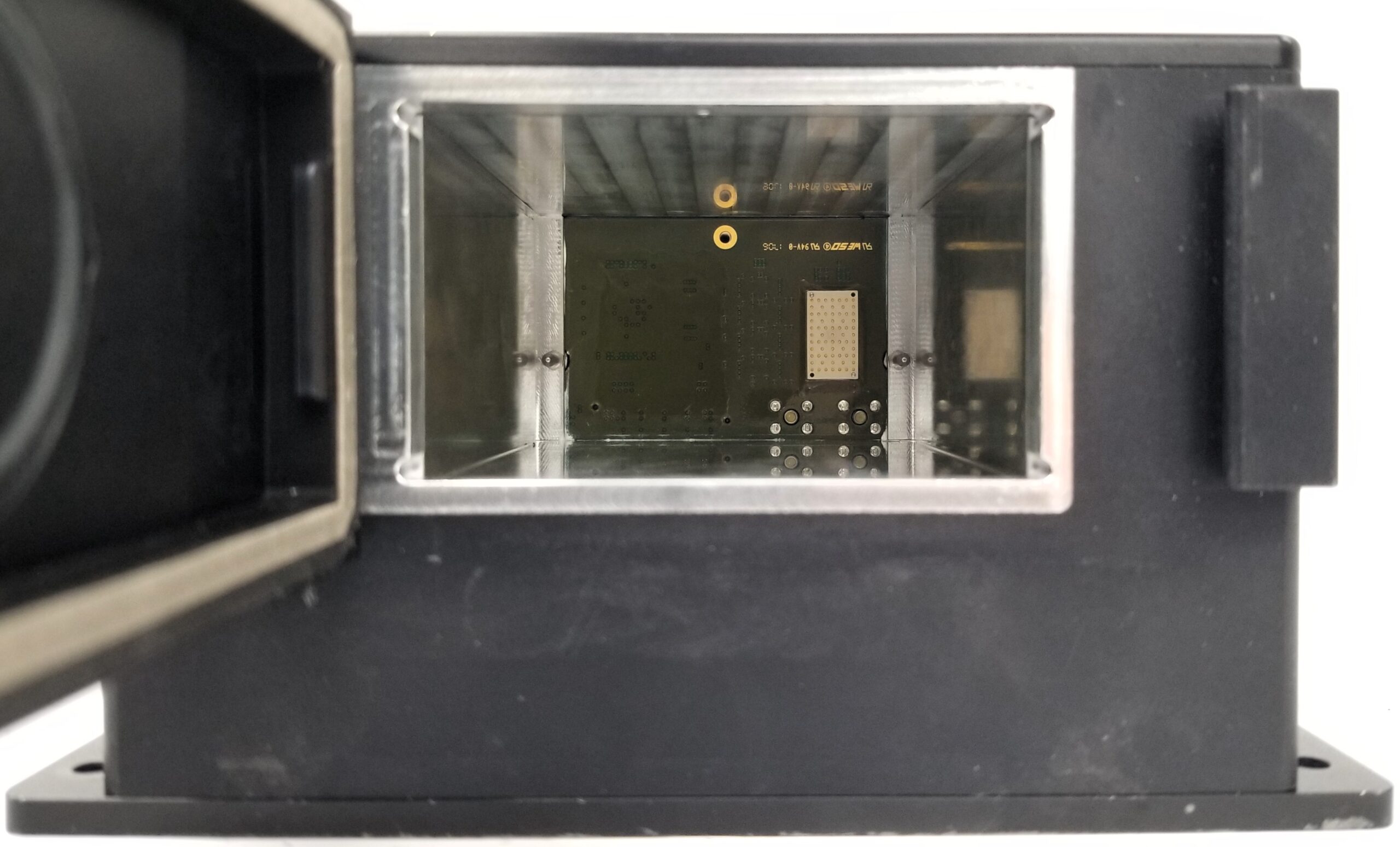

 Removable storage bay

ABOUT GALLEON:

Galleon Embedded Computing is an innovative
leader in development of high-performance,
high-quality storage solutions and small rugged
data recorder systems, servers and NAS devices.
Galleon’s offerings span from commercial grade
products for benign environments to ruggedized
conduction-cooled products for deployed systems
in severe environments.

Humidity:

 Up to 100%, condensing Rear Panel

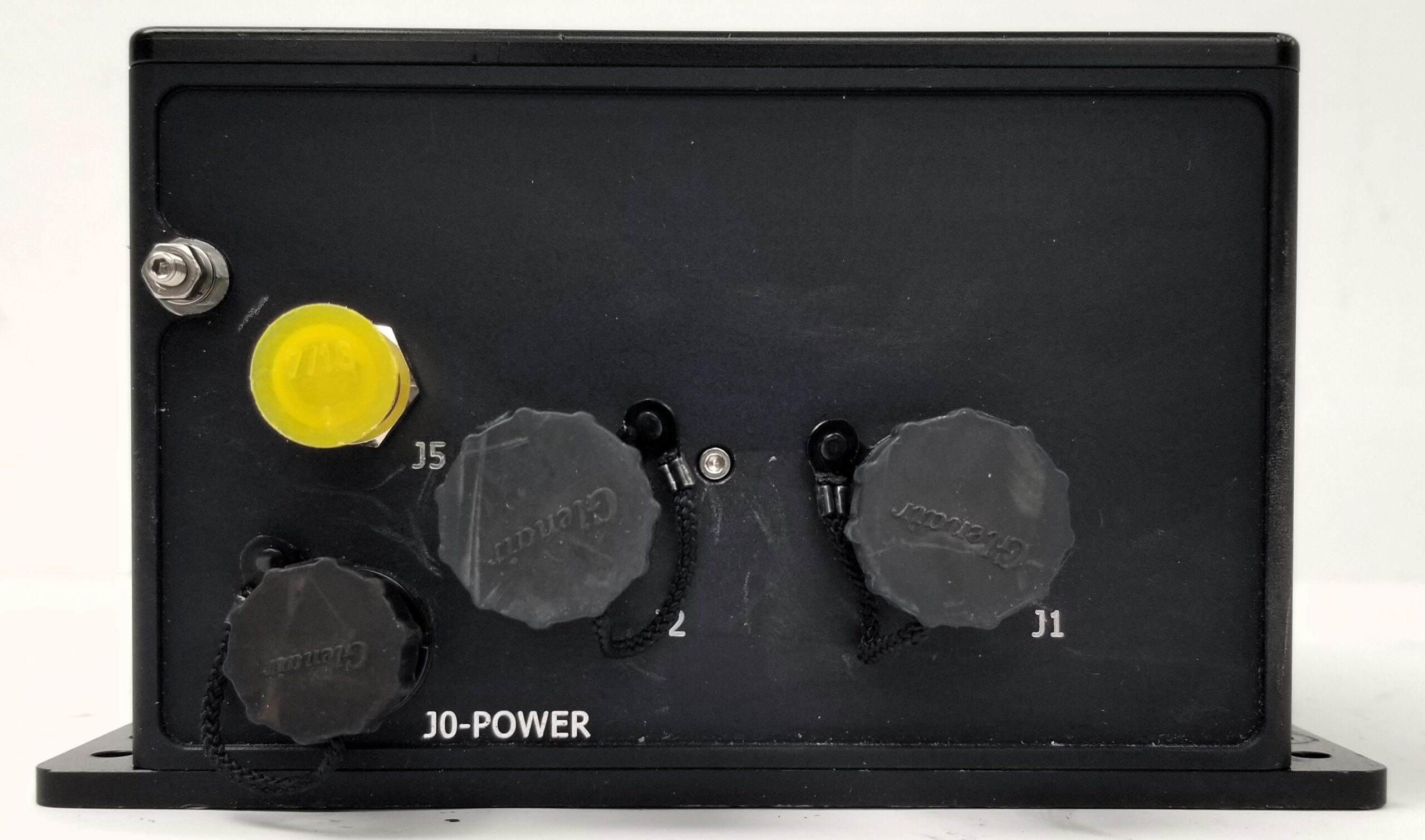

Interfaces:
 5x 1000Base-T GbE
 8x 1000Base-T or 1000Base-X GbE (optional)
 8x 10GbE (optional)
 1x Power
 1x GPS antenna input

Operating Temperature:
 0°C to +50°C standard temp.
-20°C to +65°C extended temp. (AC)
-40°C to +71/75°C extended temp. (CC)

Shock and Vibration:
 Tested to MIL-STD-810 EMI/RFI
 Tested to MIL-STD-461 Altitude
-1500 to 40 000 ft (AC)*
-1500 to 60 000 ft (CC)*

Size, Weight & Power:
 157 x 201 x 103mm (6.2 x 7.9 x 4.1″)**
 194 x 341 x 89mm (7.6 x 13.4 x 3.5″)***
 Power: from 5W idle (configuration dependent)

The XSR NAS Dock is built in a small form factor server chassis, and it provides a powerful solution for making the data available to the end user. Data can be accessed directly by read/write to the RDM or it can be copied to a connected external network or server. The built-in RDM docking station provides direct access to the four SSDs in the RDM through individual 6.0 Gbps SATA links for over 1500MB/s sustained read/write speeds.



Intel Xeon processor options, including the latest 9th generation, are supported with 4x 16GB SDRAM supporting ECC.



The XSR Removable Data Module (RDM) fits all of Galleon’s XSR data recorders, NAS and servers, thus providing an extremely flexible storage solution to suit the target application. The RDM can be exchange in the field in seconds, with no tools required.



The XSR NAS Dock is capable of handling a high number of simultaneous connections without compromising system performance.



The unit can be delivered with Linux Enterprise Server or FreeNAS SW preconfigured to suit your application needs.



The XSR NAS Dock can perform full disk encryption in software to access RDMs encrypted on XSRs with the Galleon hardware encryption module. This feature is only available on systems running Linux Enterprise Server.



Galleon Embedded Computing’s quality management system is certified to Aerospace Standard AS/EN 9100 and ISO 9001.
