🎥 Overview & Key Specs
-

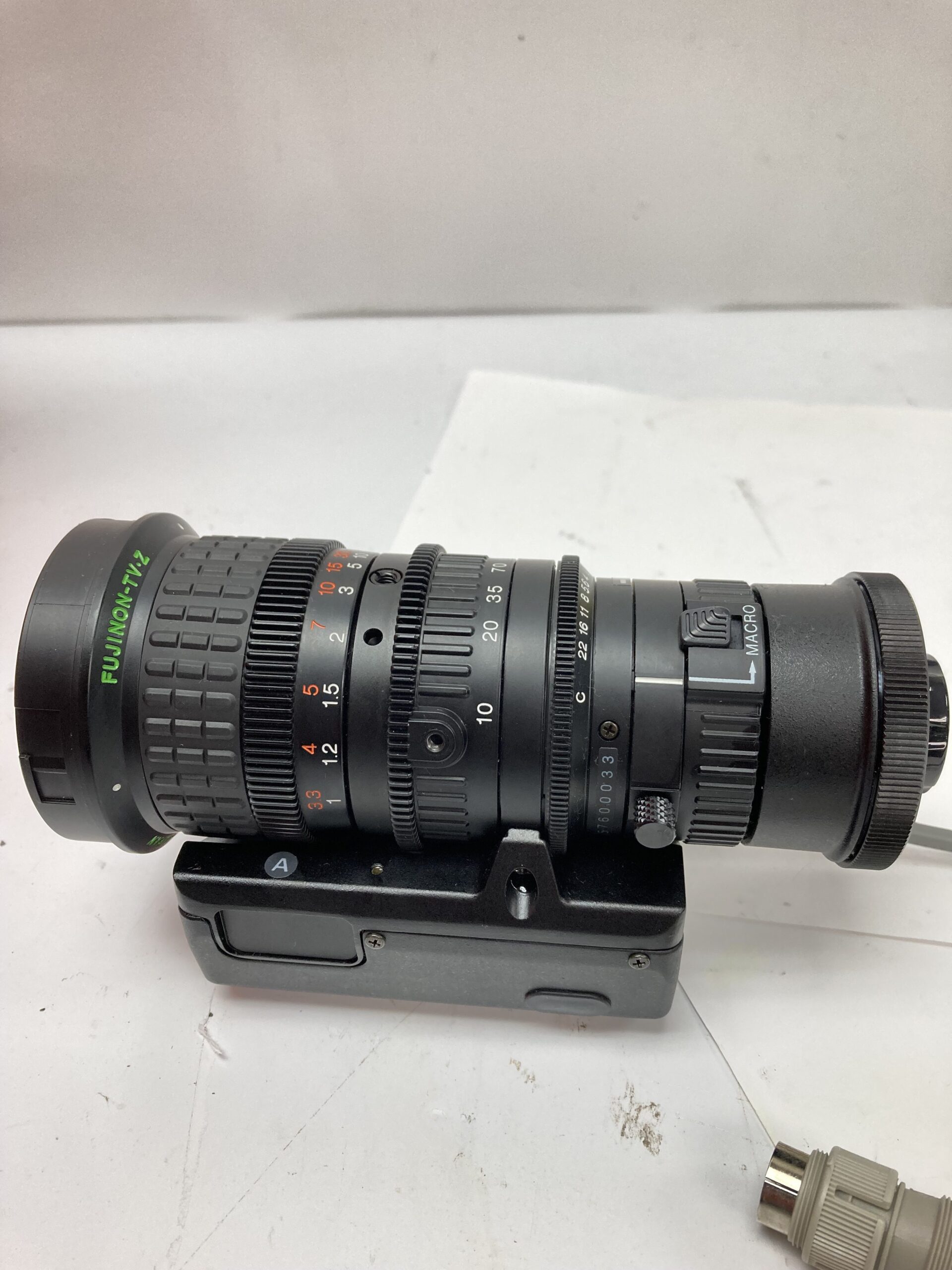

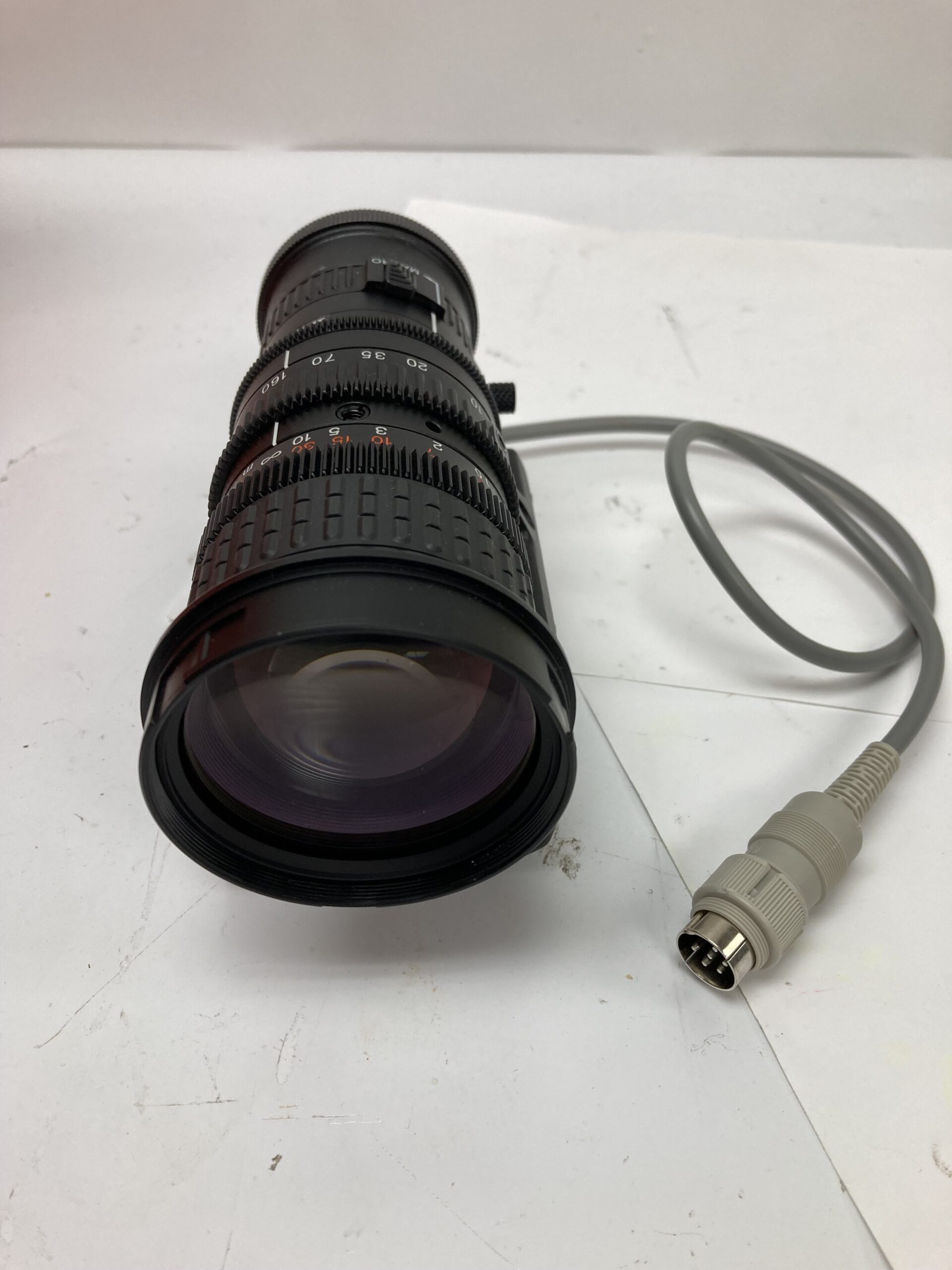

Model: Fujinon H16x10A‑M41, a discontinued 16× zoom CCTV lens with advanced features
-

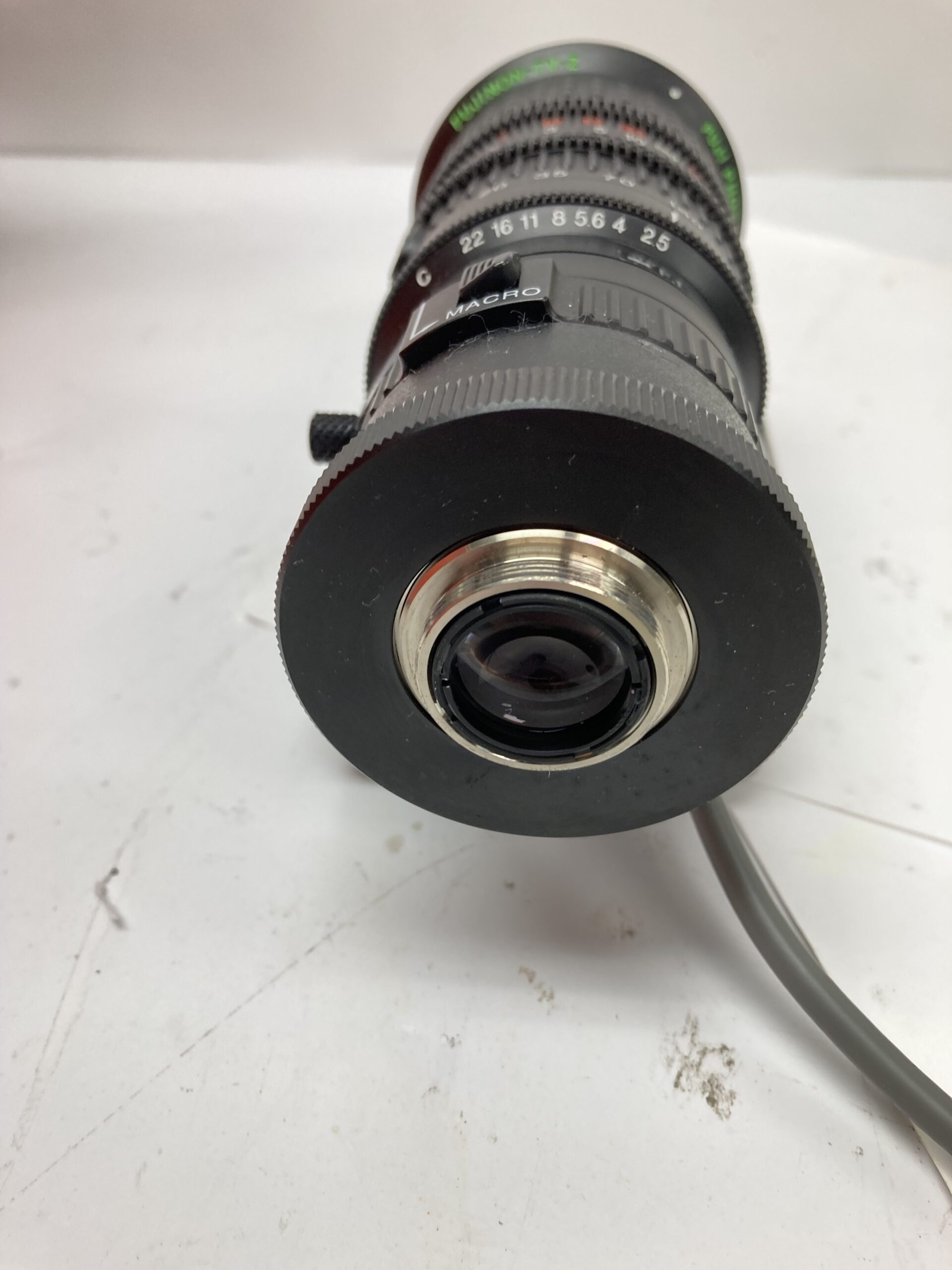

Mount & Format: C‑mount designed for 2/3″ image sensors
-
Focal Length: 10 – 160 mm (16× zoom ratio)
-
Maximum Aperture: f/2.5 (full open) to f/22 (closed)
-
Drive System: 3‑motor drive system for fully motorized control of zoom, focus, and iris
-
Iris Type: Motor-driven iris, typically manually closed to f/22
🔍 Optical Performance & Field of View
-
Image Coverage:
-
On 2/3″ sensors: ~47.5° × 36.5° (wide) down to ~3° × 2.4° (tele)
-
-
Minimum Focusing Distance: Typically 1 m to infinity
