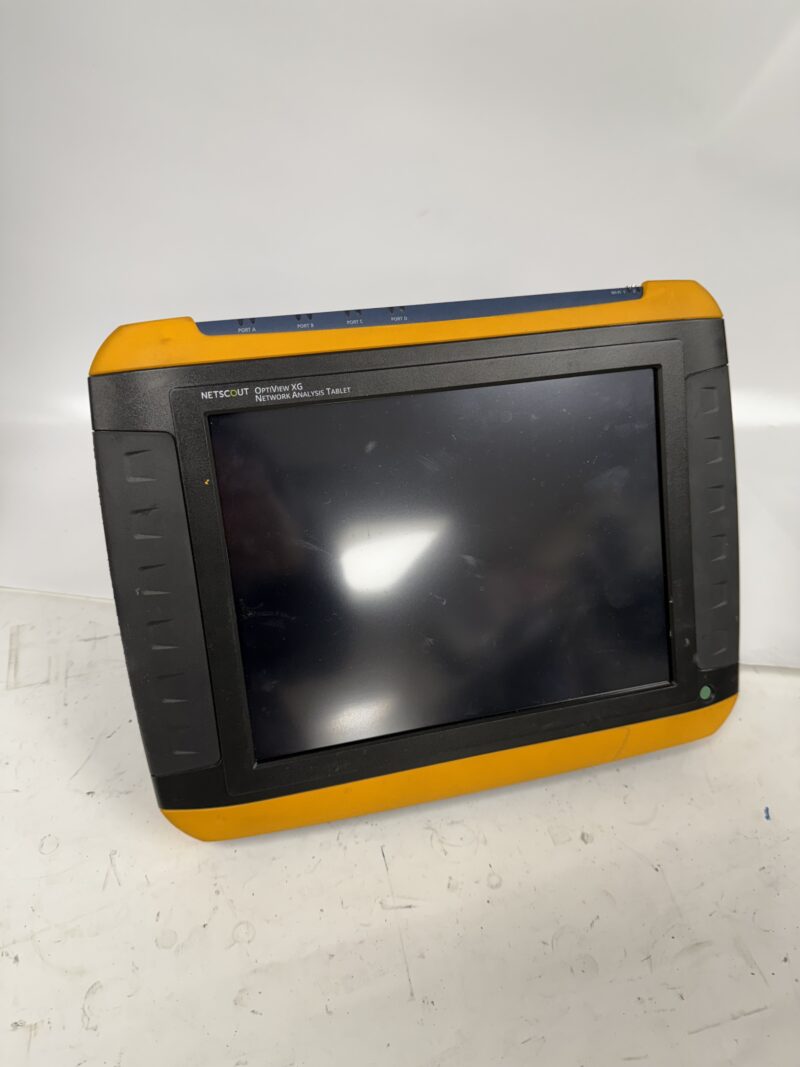

FLUKE OPVXG-EXPT-OPTIVIEW XG

​The Fluke Networks OptiView XG OPVXG-EXPT is a sophisticated network analysis tablet designed for comprehensive wired and wireless network diagnostics. It offers network engineers and IT professionals an integrated solution for troubleshooting, performance testing, and infrastructure validation across various network environments.

Key Features:

• Comprehensive Network Analysis: Supports 10/100 Mbps, 1/10 Gbps Ethernet, and 802.11a/b/g/n wireless LANs, enabling versatile deployment in diverse network scenarios.

• Automated Discovery and Mapping: Automatically discovers devices on the network by monitoring traffic and actively querying hosts, providing instant visibility into network topology.

• Intuitive User Interface: Features customizable dashboards and guided problem-solving workflows, allowing users to tailor the interface to their specific needs for efficient navigation and analysis.

• Wireless Analysis Capabilities: Includes internal wireless adapters and spectrum analyzer, compatible with Fluke Networks AirMagnet applications for comprehensive WLAN analysis and troubleshooting.

• Remote User Interface: Supports remote access via a web browser or dedicated application, facilitating collaborative troubleshooting and network monitoring from multiple locations. ​

Specifications:

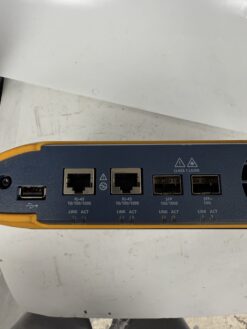

• Network Ports:

  • 2 x RJ-45 10/100/1000BASE-T Ethernet

  • 1 x SFP 100/1000BASE-X Ethernet​

  • 1 x SFP+ 10GBASE-X Ethernet

• Management Port: RJ-45 10/100/1000BASE-T Ethernet ​

• Wireless Connectivity:

  • Internal antennas: Seven internal 2.4 GHz, 1.1 dBi peak; 5 GHz, 3.2 dBi peak​

  • External omni-directional and directional antennas included

• Physical Dimensions: 9.45″ x 12.43″ x 2.03″ (240 mm x 315.7 mm x 51.6 mm)

• Weight: 5.6 lb. (2.5 kg) with batteries; 4.5 lb. (1.8 kg) without batteries ​

Applications:

• Network Deployment and Troubleshooting: Facilitates the rollout of new technologies and quick resolution of network issues.

• Performance Testing: Validates network performance with throughput analysis up to 10 Gbps.​

• Wireless Network Analysis: Assesses WLAN environments for coverage, interference, and security concerns.​

• Infrastructure Optimization: Identifies and addresses device misconfigurations and performance bottlenecks.​

Why Choose the OptiView XG OPVXG-EXPT?

The OptiView XG OPVXG-EXPT stands out for its all-in-one approach to network analysis, combining wired and wireless testing capabilities in a portable tablet form factor. Its automated features and user-friendly interface streamline the process of identifying and resolving network issues, making it an invaluable tool for maintaining optimal network performance.
