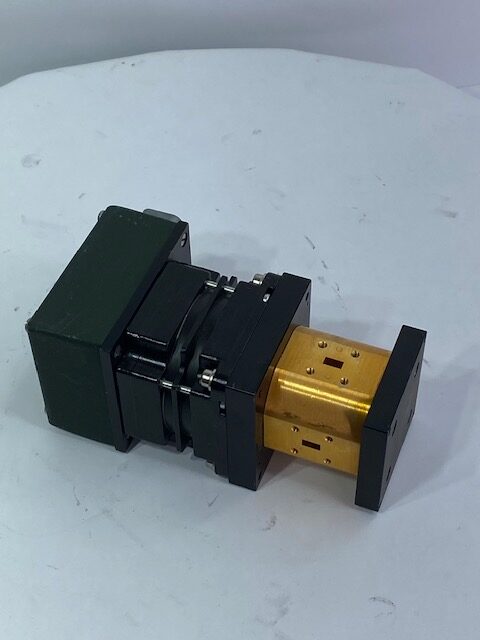

Flann Microwave 22333-2E Waveguide Switch

The Flann Microwave 22333-2E is a high-performance waveguide switch designed for precise microwave signal routing applications. Known for its reliability and mechanical precision, this switch offers excellent repeatability and low insertion loss. It is commonly used in test systems, radar, and communication applications where rapid switching between waveguide paths is required.

• Manufacturer: Flann Microwave Ltd.

• Model: 22333-2E

• Type: Waveguide Switch

• Waveguide Size: WR-229 (approx., based on model series)

• Frequency Range: Typically covers 3.3–4.9 GHz (WR-229 band range)

• Actuation: Electromechanical

• Connector Type: Waveguide flange interface

• Power Supply: 28 VDC (standard for this model series)

• Material: Precision-machined aluminum housing

• Applications:

  • RF and microwave test systems

  • Radar and telemetry systems

  • Communication equipment

  • Laboratory measurement setups
