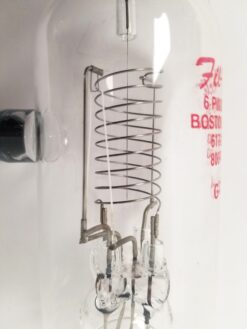

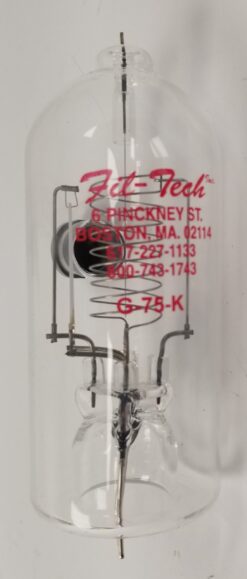

Fil-Tech G-75-K Ionization Gauge Tube

The Fil-Tech G-75-K Ionization Gauge Tube is a high-precision vacuum measurement device designed for ultra-high vacuum (UHV) applications. This ionization gauge tube provides accurate pressure readings in a broad vacuum range, ensuring optimal monitoring and control for sensitive processes.

Key Specifications:

• Manufacturer: Fil-Tech
• Model Number: G-75-K
• Type: Ionization Gauge Tube
• Vacuum Measurement Range: 10⁻⁴ to 10⁻¹⁰ Torr
• Filament Material: Tungsten (standard)
• Base Configuration: 4-pin, Bayonet-type mount
• Connector Type: Compatible with industry-standard controllers
• Operating Voltage: As specified by the connected controller

Features and Benefits:

1. Wide Measurement Range:
   • Suitable for ultra-high vacuum (UHV) environments, covering pressures from 10⁻⁴ to 10⁻¹⁰ Torr.
2. Durable Filament Design:
   • Tungsten filaments provide reliable performance and long life in vacuum environments.
3. Standardized Mounting:
   • Bayonet-type mount ensures compatibility with common vacuum gauge controllers.
4. Precision Monitoring:
   • Delivers accurate and consistent readings critical for maintaining vacuum conditions in sensitive applications.
5. Robust Construction:
   • Engineered to withstand demanding conditions in UHV systems.

Applications:

• Vacuum Systems:
  • Monitoring pressure in research laboratories, particle accelerators, and UHV chambers.
• Semiconductor Manufacturing:
  • Ensures precise vacuum levels for thin-film deposition and etching processes.
• Surface Science:
  • Used in scanning electron microscopes (SEM) and other analytical tools.
• Cryogenics:
  • Monitors vacuum conditions in cryogenic equipment and systems.

Why Choose the Fil-Tech G-75-K?
The G-75-K Ionization Gauge Tube from Fil-Tech is a reliable choice for demanding vacuum measurement applications. Its precision, durability, and wide compatibility make it a preferred option for professionals working in UHV environments.
