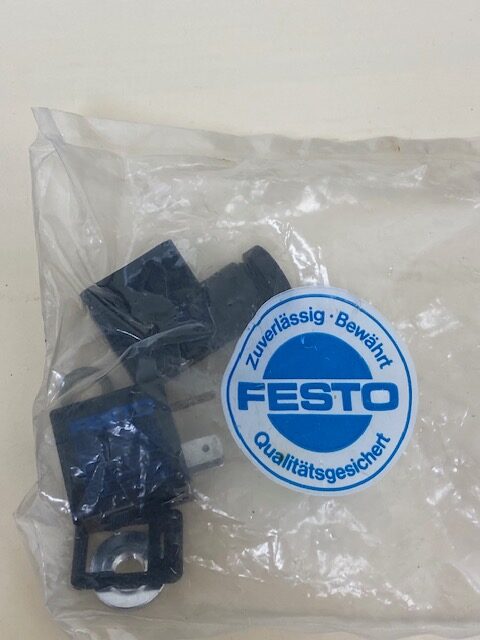

Festo MSFG-24 Solenoid Coil

The Festo MSFG-24 Solenoid Coil is a highly efficient, reliable component designed for various industrial and automation applications. With a 24 V DC power rating and a 4.5 W power consumption, this solenoid coil ensures efficient performance with a min. pick-up time of just 10 ms. Ideal for use in environments requiring high performance, it boasts a 100% duty cycle and a power factor (cos phi) of 0.7.

Key Features:

• Voltage Options: 24 V DC (4.5 W) and 42 V AC (50/60 Hz) with 9.0 VA pick-up power and 7.0 VA holding power
• Environmental Durability: IP65 rating ensures robust protection against dust and water, making it suitable for challenging industrial environments
• Temperature Range: Operates effectively within an ambient temperature range of -5 °C to 40 °C
• Electrical Connection: Equipped with a 3-pin electrical connection and plug pins that adhere to the Festo standard for MSSD-F
• Mechanical Specifications: Maximum tightening torque for socket 0.4 Nm and a compact weight of 55 g
• Compliance & Safety: Meets VDMA24364-C1-L for PWIS conformity
