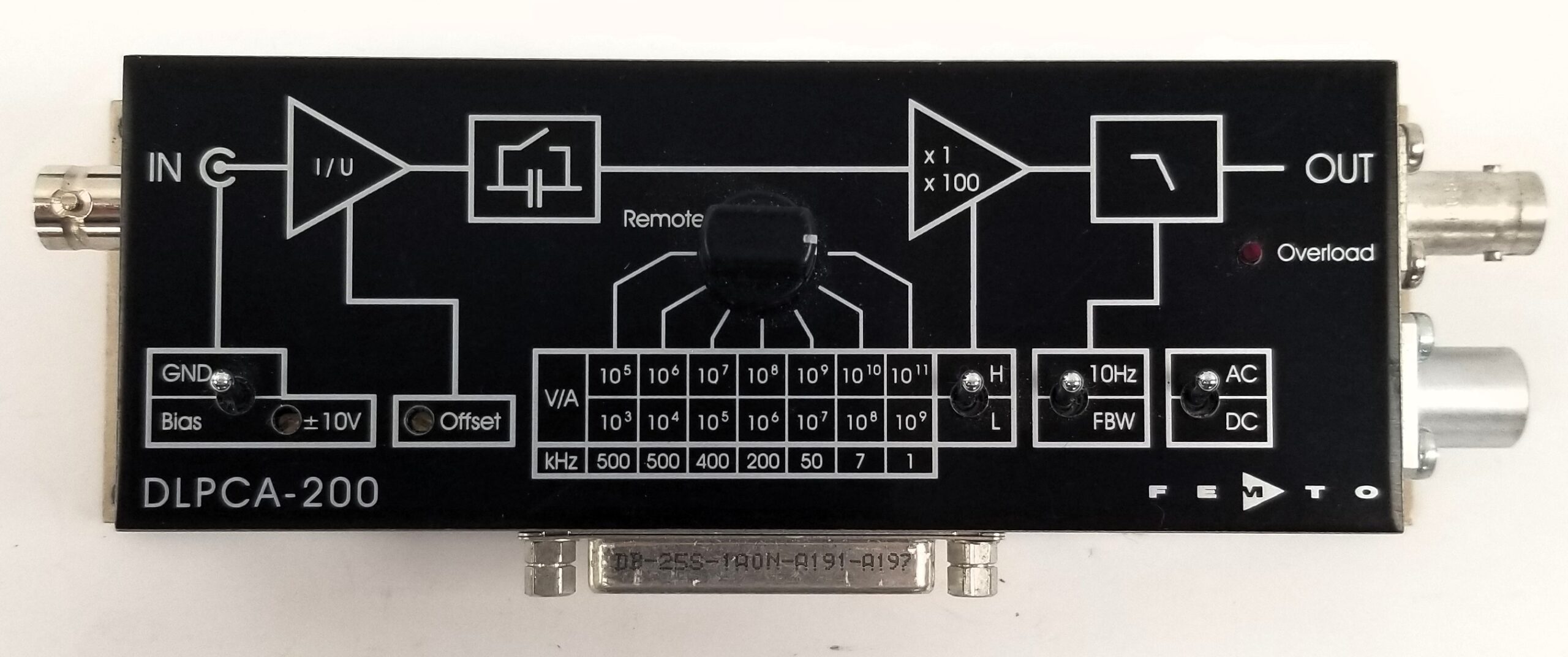

Femto DLPCA-200 Transimpedance Amplifier

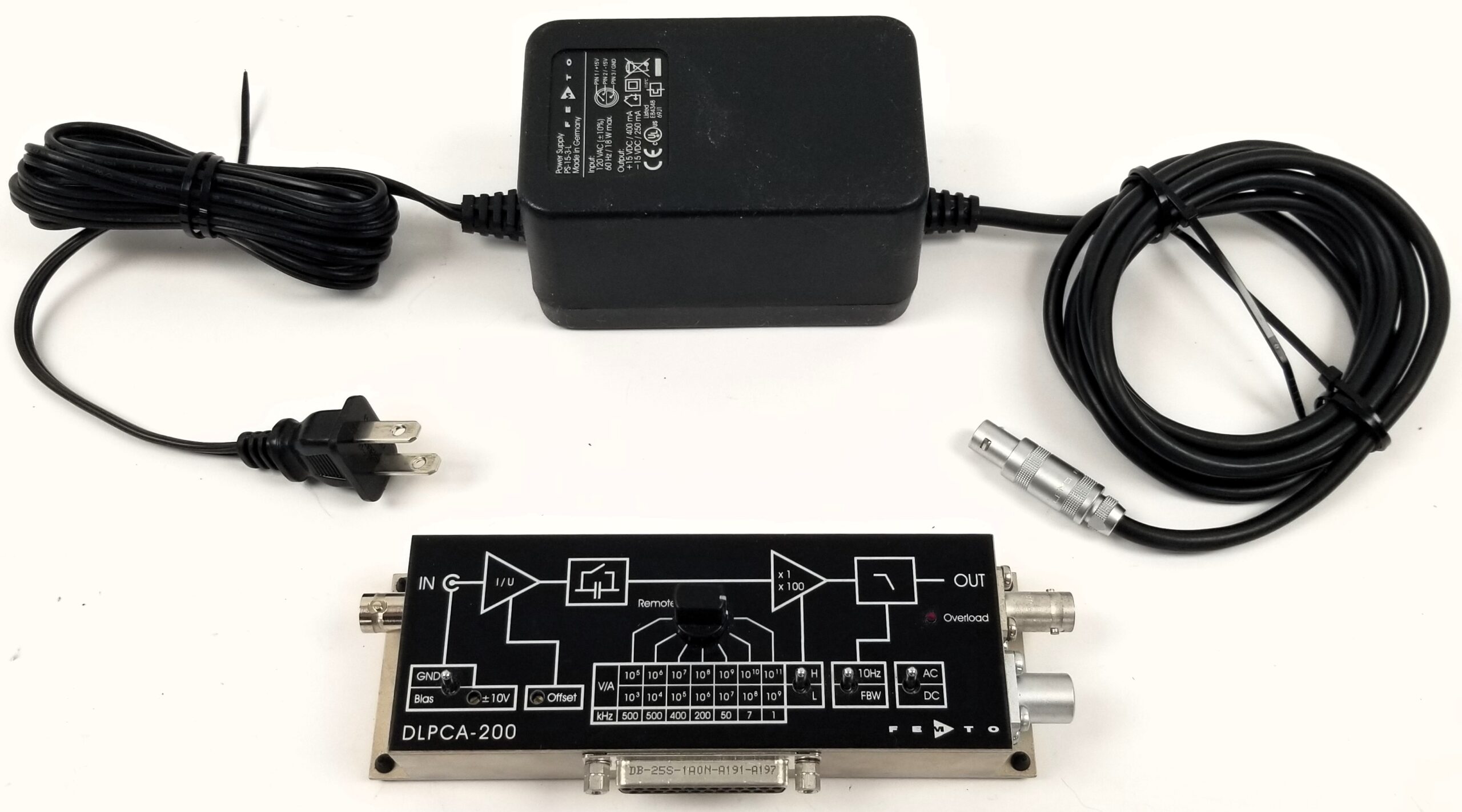

Femto DLPCA-200 Transimpedance Amplifier. Very good condition. With power supply. Unit powers on. Basic check O.K. No manual or other accessories. Purchaser responsible for proper use. As shown.

Brief description

The DLPCA-200 is an adjustable transimpedance amplifier for measuring very small currents with bandwidths in the kHz range. It is a highly versatile amplifier with a wide dynamic range.

Features

• Transimpedance amplifier with gain from 10³ to 10¹¹ V/A
• Input noise down to 4.3 fA/√Hz
• Bandwidth up to 500 kHz
• Rise time down to 700 ns
• Adjustable bias voltage
• Manual and remote control
