Product Description
Extron VSC 700 High-Performance Scan Converter – Converts Computer RGB to Standard Definition Video with Genlock

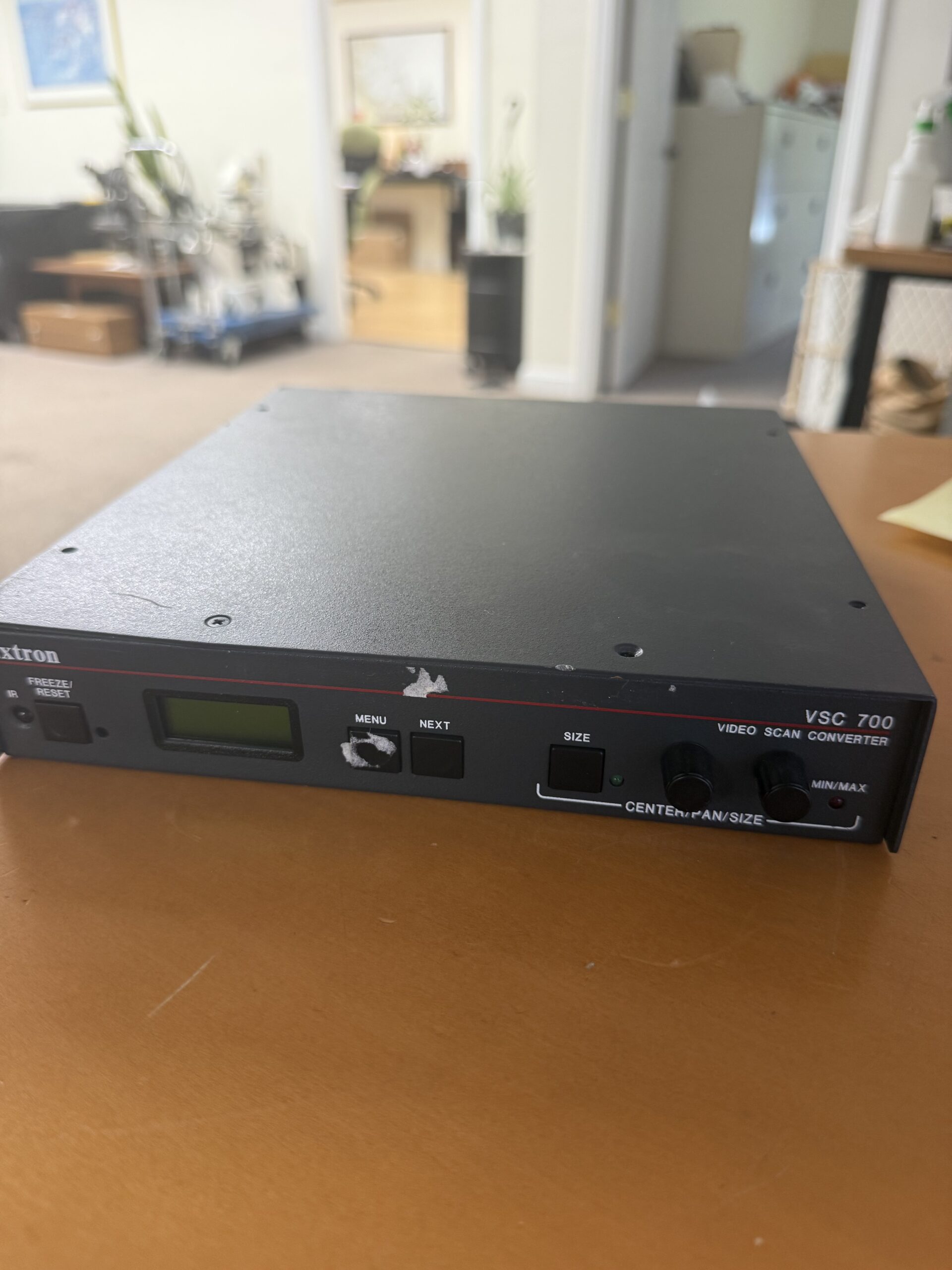

This used Extron VSC 700 is a professional-grade scan converter designed to convert high-resolution computer video signals (up to 1920×1200) to standard definition video formats including composite video, S-video, component video, and RGB video . The VSC 700 is ideal for integrating computer sources into broadcast environments, video conferencing systems, and professional AV installations.
Unlike the VSC 500, the VSC 700 features genlock capability, allowing it to synchronize with an external blackburst reference signal for seamless integration into broadcast and production workflows . The unit also includes horizontal filtering (four selectable settings) in addition to vertical filtering, which helps reduce jitter and maintain picture detail during the scan conversion process .
The VSC 700 has been discontinued by Extron and is no longer in production .
Condition Note: This unit is used and sold as-is. It may show signs of prior use such as rack rash or minor cosmetic wear. Power cord, IR remote, and cables are not included unless specified. The unit has been discontinued and is sold without warranty .
Key Specifications
| Specification | Details |
|---|---|
| Manufacturer | Extron Electronics |
| Model | VSC 700 |
| Part Number | 60-477-01 |
| Type | Video Scan Converter / Downscaler |
| Input Resolutions | 560×384 to 1920×1200, 480p, 720p, 1080i, 1080p (RGB only) |
| Horizontal Frequency | Autoscan 24 kHz to 100 kHz |
| Vertical Frequency | Autoscan 50 Hz to 120 Hz |
| Output Formats | Composite video, S-video, component video, RGB video |
| Genlock | Yes (external blackburst sync input) |

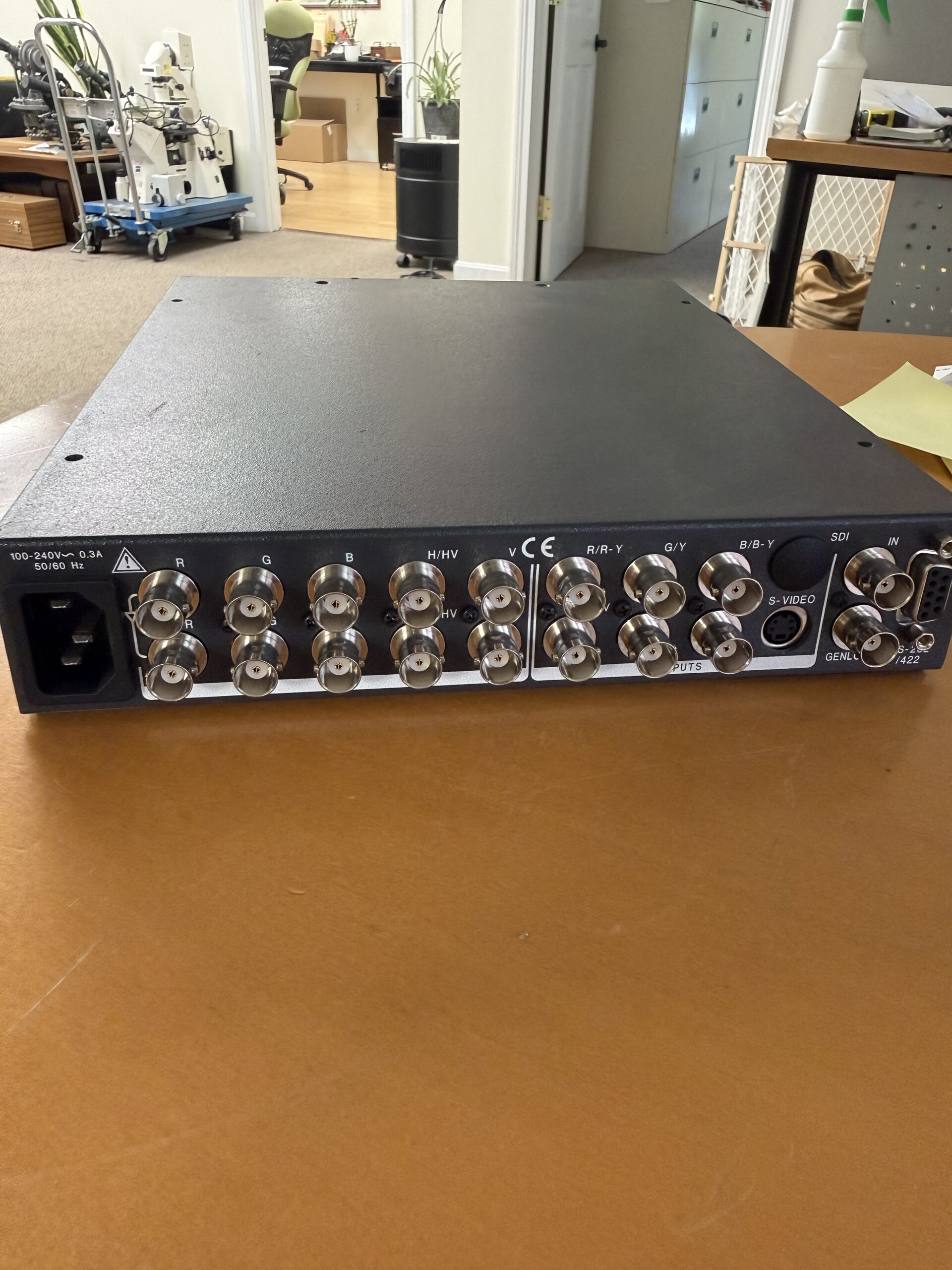

| Input Connectors | 2x 5 BNC female (input + buffered loop-through) |
| Output Connectors | 5 BNC (RGB/component), 1 BNC (composite), 4-pin mini DIN (S-video) |
| Control Interface | RS-232 / RS-422, IR remote |
| Power | 100-240 VAC, 50/60 Hz, 30W internal |
| Dimensions | 1.75″ H x 8.75″ W x 10.5″ D (1U half-rack) |
| Weight | 2.8 lbs (1.3 kg) |
| Rack Mountable | Yes (with optional RSU 129 rack shelf) |
| Status | Discontinued |
| Condition | Used – Untested |
Key Features & Benefits
| Feature | Benefit |
|---|---|
| High Resolution Input Support | Accepts resolutions up to 1920×1200, 1080p, and 720p |
| Genlock (External Sync) | Locks output to blackburst reference for broadcast integration |
| Horizontal & Vertical Filtering | Reduces jitter and preserves picture detail |
| Auto-Image Setup | Automatically adjusts sizing, centering, and filtering |
| Multiple Output Formats | Composite, S-video, component, and RGB video simultaneously |
| Buffered Loop-Through Output | Allows daisy-chaining or local monitoring of input signal |
| 16 User Presets + 60 Factory Presets | Quick recall of configurations |
| Zoom Control (up to 200%) | Enlarges images with increased pixel clocking |
| Front Panel Controls | LCD display for intuitive menu navigation |
| RS-232 / RS-422 Control | Remote control and integration into automated systems |
Applications
-
Broadcast Integration: Convert computer graphics for SD broadcast insertion using genlock
-
Video Conferencing: Connect laptop or PC to SD conference room systems
-
Post-Production: Downconvert HD computer sources to SD for editing suites
-
Digital Signage: Convert PC outputs for standard definition displays
-
Retro Gaming / Emulation: Downscale modern PC outputs for CRT monitors and PVMs
-
Medical/Industrial Imaging: Integrate computer imaging into SD monitoring systems
-
A/V Archiving: Convert computer presentations to SD video for recording
