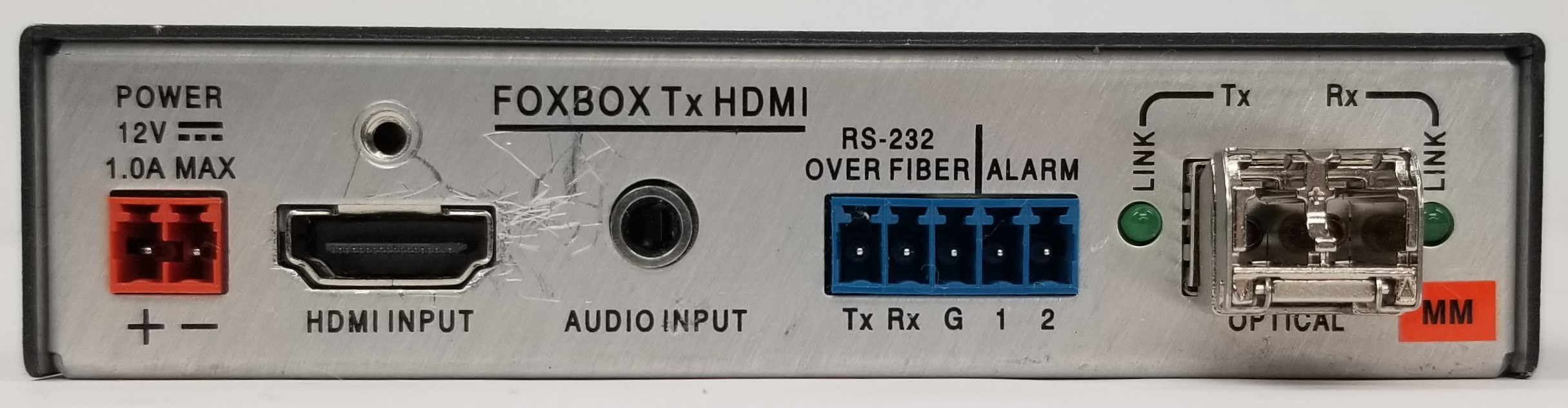

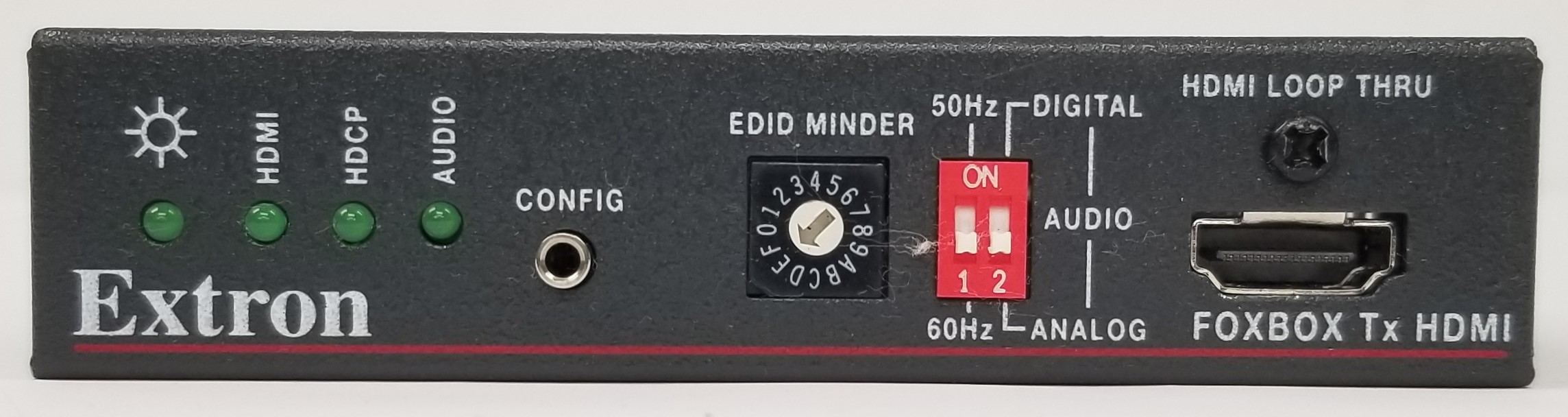

Extron Foxbox TX HDMI Fiber Optic Extender

Extron Foxbox TX HDMI Fiber Optic Extender. No power supply, manual or other accessories. As shown.

Product Description:

The Extron FOXBOX TX HDMI Fiber Optic Extender is a high-performance HDMI transmitter designed for long-distance, high-resolution video signal transmission over single-mode or multimode fiber optic cabling. Engineered to maintain exceptional image integrity, the FOXBOX TX HDMI is ideal for applications that require uncompromised digital video delivery over extended distances.

With support for resolutions up to 1920×1200 and HDTV 1080p, this transmitter utilizes Extron’s proprietary all-digital technology to ensure pixel-for-pixel image accuracy with no compression or latency. The compact form factor and advanced features make it the perfect solution for integration into AV systems in commercial, medical, government, and educational environments.

Key Features & Benefits:

• ✅ HDMI over Fiber Optic Transmission – Transmits HDMI video over long distances using single-mode or multimode fiber.
• ✅ Supports Resolutions Up to 1920×1200 / 1080p – Ideal for high-definition content in professional AV installations.
• ✅ Fully Digital, Uncompressed Signal Transmission – Maintains perfect image quality with zero latency.
• ✅ EDID Management and Audio Embedding – Ensures reliable signal negotiation and supports embedded audio transmission.
• ✅ Compact and Rack-Mountable Design – Fits easily in AV racks or behind displays for flexible deployment.
• ✅ Secure, EMI/RFI-Resistant Transmission – Fiber optic technology ensures secure data integrity and eliminates electrical interference.

Applications:

• Digital Signage Systems
• Command and Control Centers
• Medical Imaging Suites
• Secure Government Installations
• Higher Education Campuses
• Broadcast and Studio Environments
• AV Integration Projects requiring long-distance HDMI transmission

Technical Specifications:

• Video Input: HDMI Type A Female
• Max Supported Resolution: 1920×1200 @ 60Hz, HDTV 1080p
• Transmission Distance:
  • Multimode Fiber: Up to 2 km (1.25 miles)
  • Single-mode Fiber: Up to 30 km (18.6 miles)
• Audio Support: Embedded HDMI audio
• Control: RS-232 and IR pass-through capability
• Fiber Optic Connector: LC-type
• Power Supply: External 12 VDC, included
• Form Factor: FOXBOX compact enclosure; optional rack mounting
