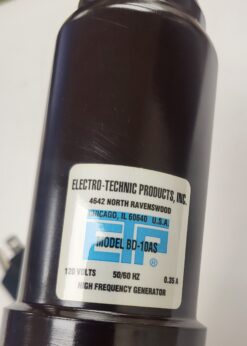

Electro Technic Products Inc. High Frequency Generator BD-10AS

The Electro Technic Products BD-10AS High Frequency Generator is a versatile, handheld device designed for applications such as leak detection, spark testing, and educational demonstrations.

It generates a high-voltage, high-frequency spark, making it suitable for identifying pinholes in linings, checking vacuum integrity, and igniting gases in various laboratory settings.

Key Features

• Adjustable Output Voltage: 20,000 to 50,000 volts

• Output Frequency: Approximately 500 kHz

• Output Current: Approximately 0.1 mA maximum

• Control Mechanism: Spring-loaded side switch for momentary high-voltage activation

• Voltage Adjustment: Knob on the handle to fine-tune output voltage

• Power Supply: Available in models for 115V or 230V, 50/60 Hz

• Dimensions: Approximately 11 inches in length and 2.5 inches in diameter

• Electrode Included: Standard 12101 Blunt Tip

• Typical Applications

  • Leak Detection: Identifying pinholes in plastic, glass, or rubber linings on metal tanks

  • Vacuum Integrity Testing: Checking neon signs, lamp bulbs, pharmaceutical vials, and double-pane glass windows

  • Educational Demonstrations: Igniting spectrum tubes, fluorescent lamps, and plasma displays

  • Electrostatic Discharge Testing: Assessing ESD susceptibility in various materials
