Sale!

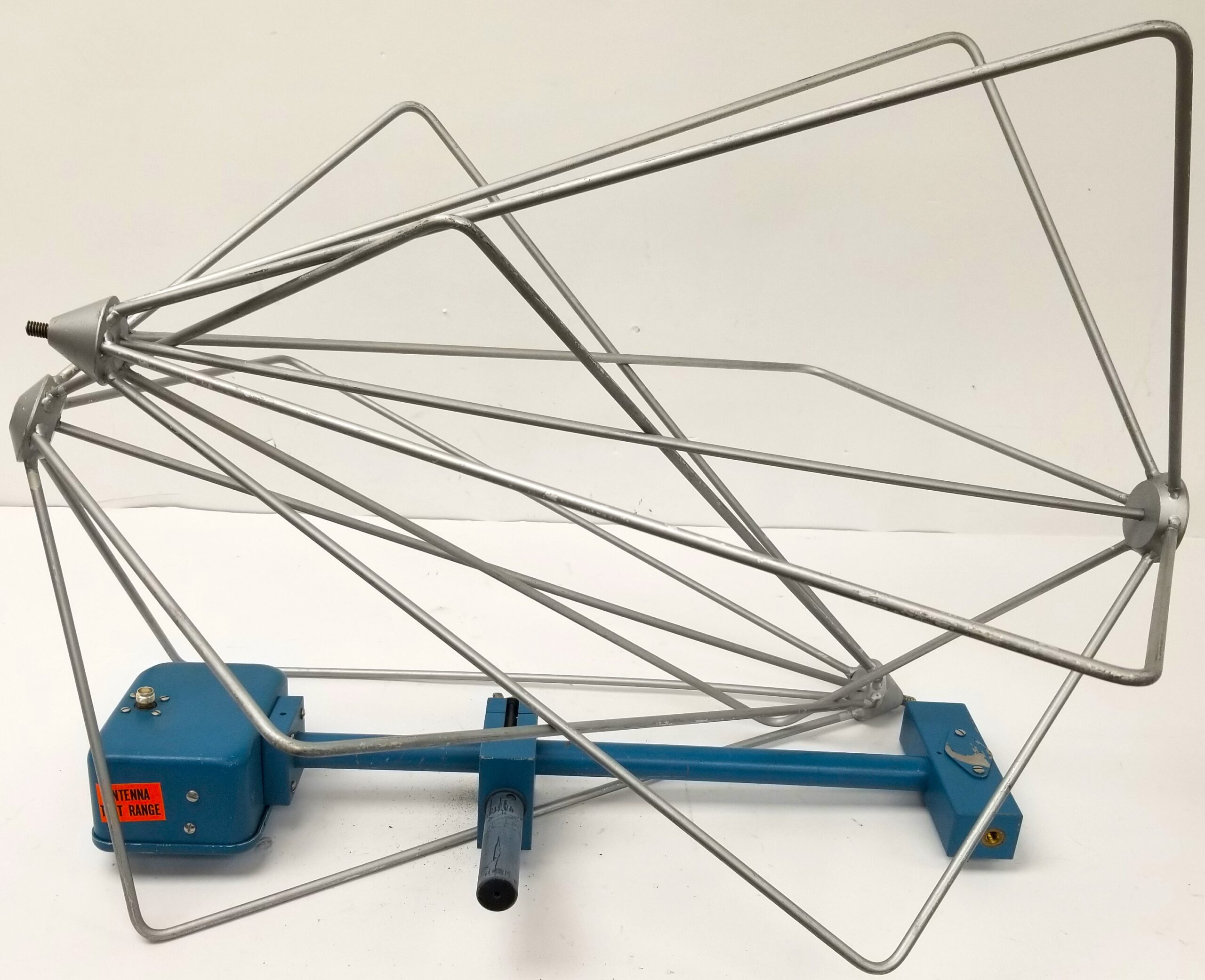

Electro-Metrics B1A-25 Biconical Antenna 30 MHz to 200 MHz
Original price was: $2,200.00.$1,750.00Current price is: $1,750.00.
SKU: 81216
1 in stock
CompareElectro-Metrics B1A-25 Biconical Antenna 30 MHz to 200 MHz. Engineered for precision and versatility, this biconical antenna is ideal for a wide array of industries. It features a meticulously designed balun, feedline, and element cage, which together deliver near-linear response curves, making it suitable for swept measurements. Explore the potential of the BIA 25 to enhance the testing processes.
| Frequency Range | 30 MHz – 200 MHz |
| VSWR | Average: 1.4:1 with 6 dB pad Maximum: 1.8:1 with 6 dB pad |
| Max Continuous Power | 0.5 W |
| Peak Power | 1.0 W |
| Input Impedance | 50 Ω |
| Output Connector | TNC |
| Length | 52.75 in |
| Diameter | 21 in |
| Depth | 32 in |
No manual, cable, mounting brackets or other accessories. As shown. *Antenna will ship disassembled.
| Weight | 7 lbs |
|---|---|
| Dimensions | 24 × 24 × 24 in |
