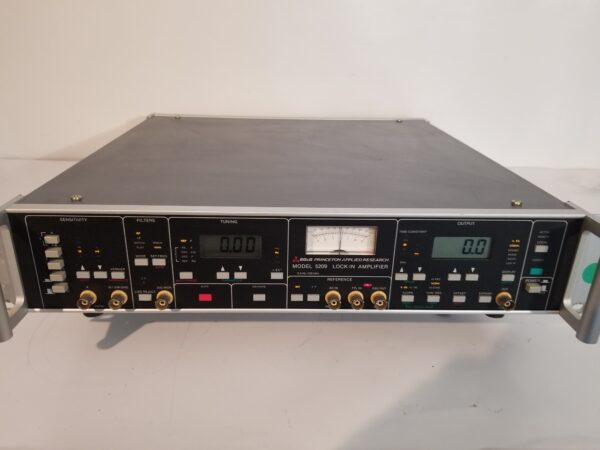

EG & G 5209 Single Phase Lock-In Amplifier 0.5 Hz – 120 kHz
$300.00

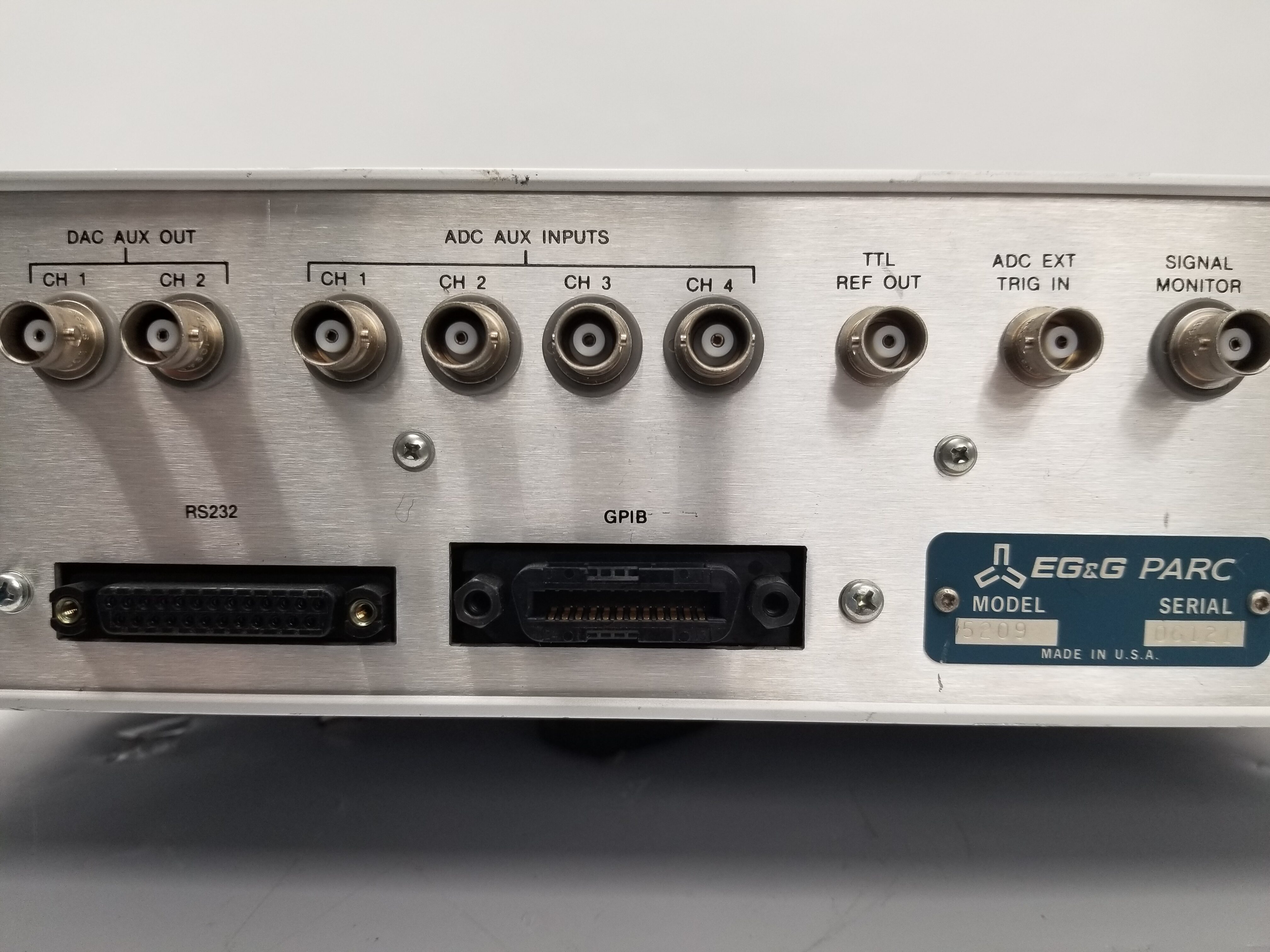

EG & G 5209 Single Phase Lock-In Amplifier 0.5 Hz – 120 kHz Features: Frequency range: 0.5 Hz to 120 kHz Voltage sensitivity: 100 nV to 3 V full-scale Current input mode sensitivities: 10 fA to 300 nA full-scale 10 fA to 3 μA full-scale Line frequency rejection filter Fundamental (sine wave) or square-wave response modes Very low phase noise of < 0.005° rms. 3½-digit output readings Oscillator with variable amplitude and frequency Output time constants from 1 ms to 3 ks with 6 or 12 dB/octave roll-off Four external auxiliary ADC inputs Two external auxiliary DAC outputs Full range of auto-modes Standard GPIB (IEEE-488) and RS232 interfaces Two liquid crystal displays (LCD) and an analog panel meter for control and display of instrument outputs. No manual, cables or accessories.
1 in stock
CompareEG & G 5209 Single Phase Lock-In Amplifier 0.5 Hz – 120 kHz Features: Frequency range: 0.5 Hz to 120 kHz Voltage sensitivity: 100 nV to 3 V full-scale Current input mode sensitivities: 10 fA to 300 nA full-scale 10 fA to 3 μA full-scale Line frequency rejection filter Fundamental (sine wave) or square-wave response modes Very low phase noise of < 0.005° rms. 3½-digit output readings Oscillator with variable amplitude and frequency Output time constants from 1 ms to 3 ks with 6 or 12 dB/octave roll-off Four external auxiliary ADC inputs Two external auxiliary DAC outputs Full range of auto-modes Standard GPIB (IEEE-488) and RS232 interfaces Two liquid crystal displays (LCD) and an analog panel meter for control and display of instrument outputs. No manual, cables or accessories.
| Weight | 22 lbs |
|---|---|
| Dimensions | 24 × 24 × 9 in |
