Decagon GS3 Soil Sensor

Product Overview

The Decagon GS3 Soil Sensor is a versatile and precise instrument designed for measuring soil moisture, electrical conductivity (EC), and temperature in a variety of environmental and agricultural applications. This bundle includes the sensor, a compatible controller, and a custom sensor attachment, providing a comprehensive solution for soil monitoring and data acquisition.

Key Features

• Multi-Parameter Measurement: Simultaneously measures soil moisture, EC, and temperature.
• High Accuracy: Advanced sensors ensure reliable and precise data collection.
• Durable Design: Rugged, weather-resistant construction for long-term field use.
• Custom Sensor Integration: Custom sensor included for extended functionality.
• Controller Included: Facilitates seamless data acquisition and monitoring.
• Plug-and-Play Compatibility: Easy setup with minimal calibration required.

Applications

• Agriculture and Irrigation Management: Optimize water usage and nutrient application.
• Environmental Research: Monitor soil conditions for ecological studies.
• Horticulture: Improve plant growth conditions in controlled environments.
• Soil Science Studies: Analyze soil properties across different terrains.
• Smart Farming: Integrate into IoT systems for advanced agricultural automation.

Specifications

• Model Number: GS3 (Sensor)
• Measurement Range:
  • Soil Moisture (Volumetric Water Content): 0–100%
  • Electrical Conductivity: 0–23 dS/m
  • Temperature: -40°C to 60°C
• Accuracy:
  • Moisture: ±1%
  • EC: ±0.01 dS/m
  • Temperature: ±0.1°C
• Interface: Digital RS-232 or SDI-12 for easy integration.
• Power Supply: 3.6–15 V DC
• Dimensions (Sensor): 89 x 18 mm (probe length x diameter)

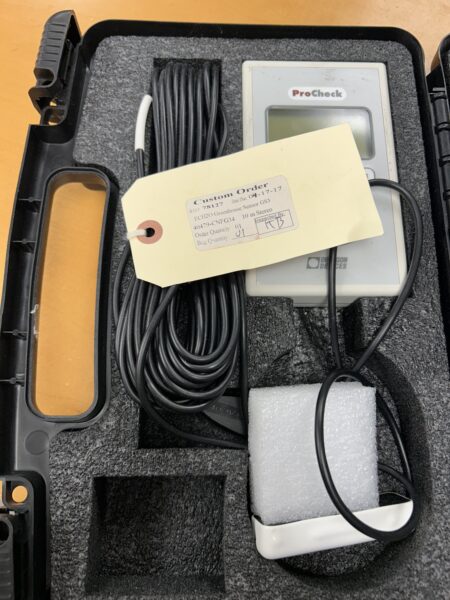

Included in the Package

• 1x Decagon GS3 Soil Sensor (Model 40477)

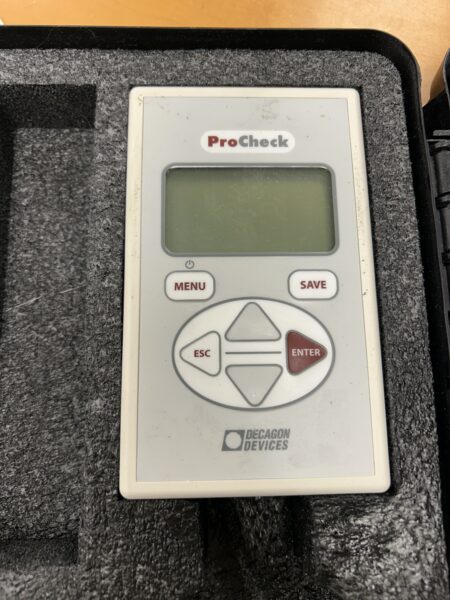

• 1x Controller for data acquisition and management.
• 1x Custom sensor attachment for extended measurements.
• Necessary cables for connection and operation.
