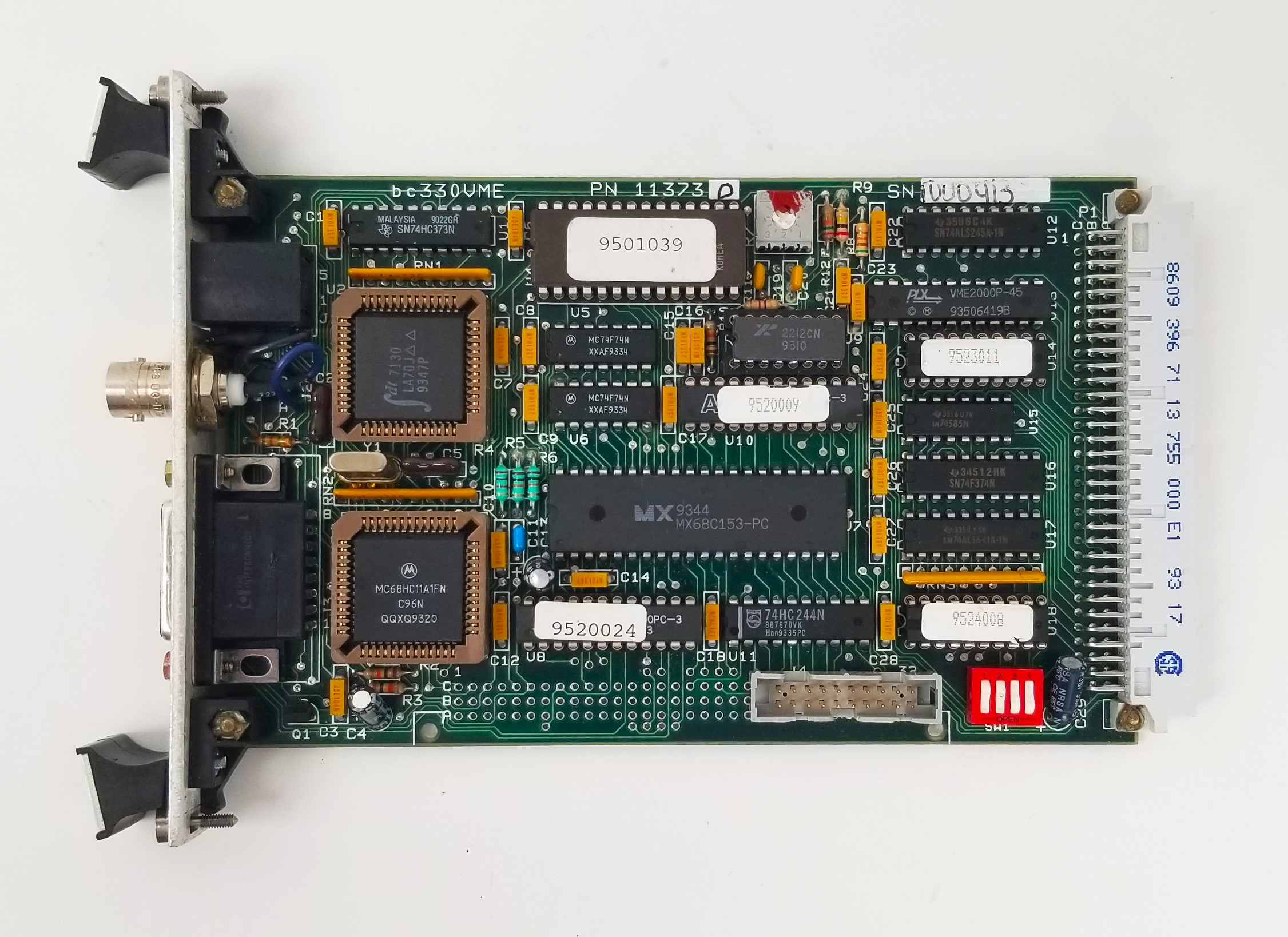

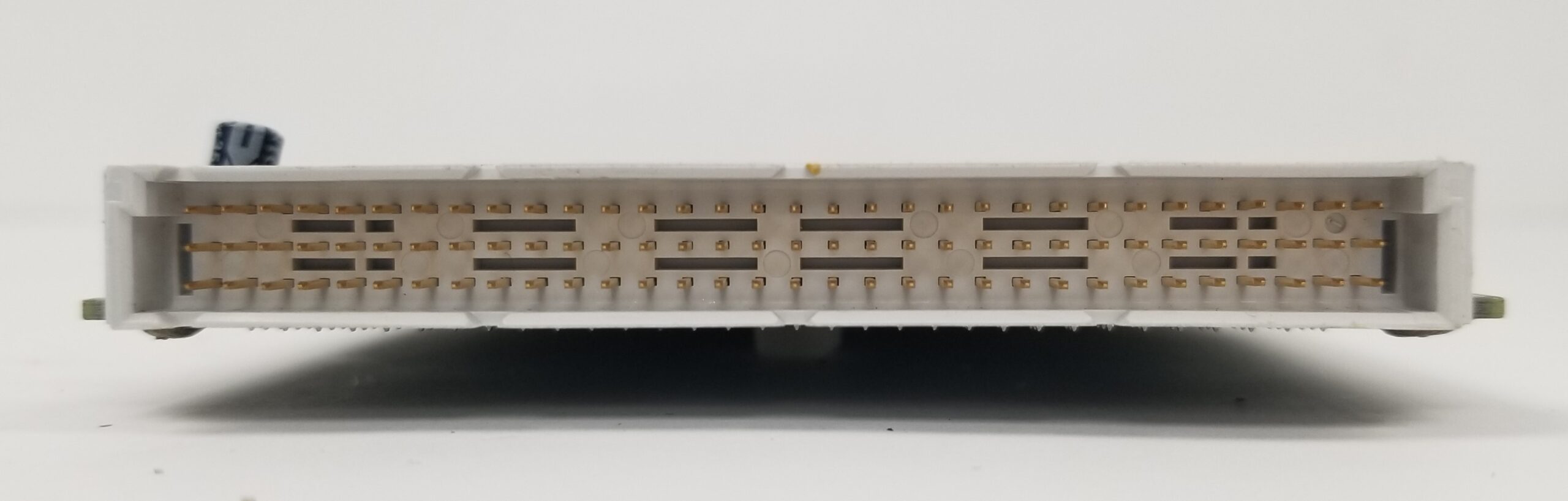

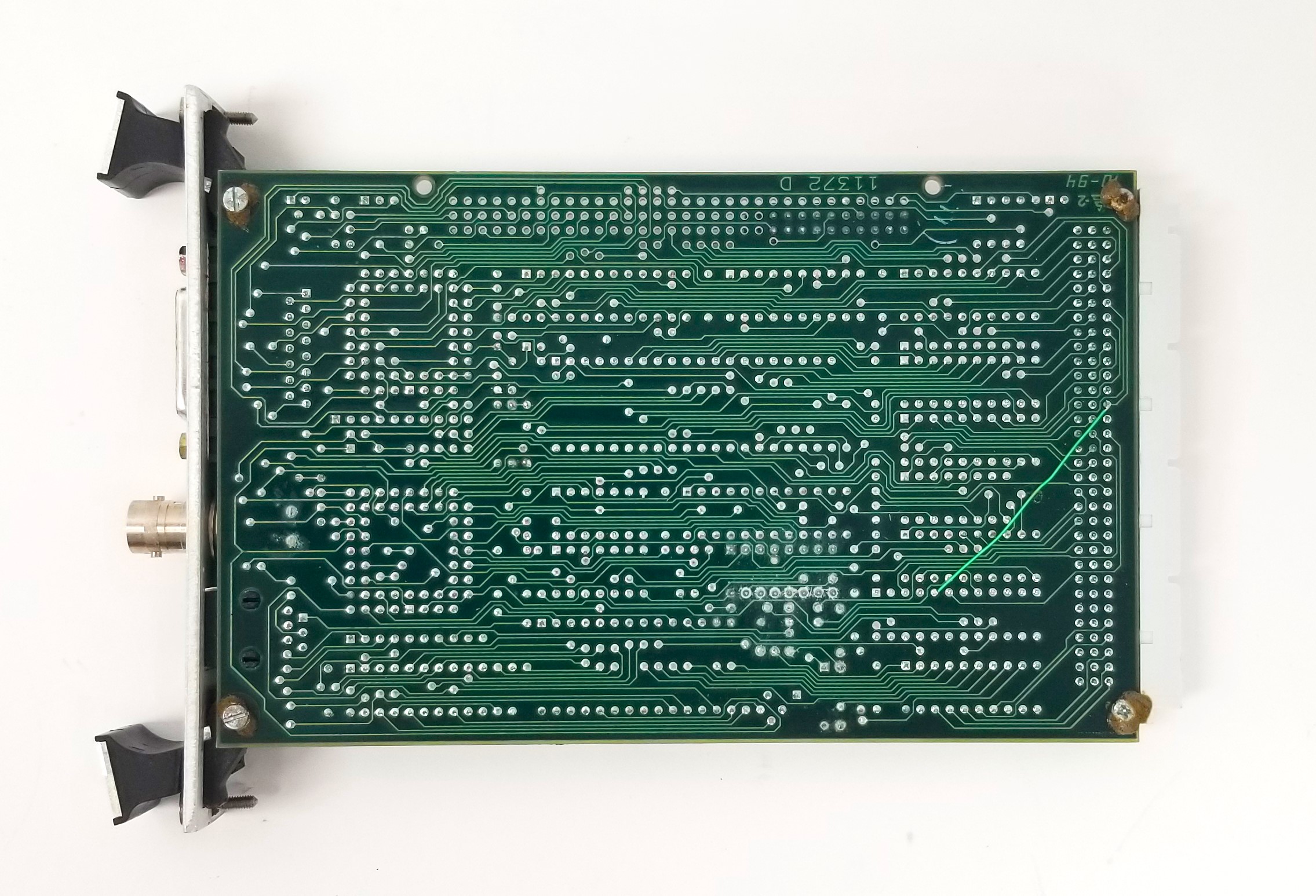

Datum BC330VME Time Code Reader/Processor VMEbus module

Datum BC330VME Time Code Reader/Processor VMEbus module. Unit carefully removed from operational system. No manual or other accessories. This is discontinued from the manufacturer(s) and will be increasingly difficult to obtain. Purchaser responsible for compatibility and proper installation/use. As shown.

The Datum BC330VME Time Code Reader/Processor is a single height (3U) VMEbus module designed to decode serial time code signals and provide additional capabilities not normally found on a single board time code reader. InterRange Instrumentation Group (IRIG) promoted a series of “standard” time code formats now loosely referred to as IRIG Time Codes. The bc330VME decodes two formats: IRIG A and IRIG B. The bc330VME has the ability to capture time and generate an interrupt in response to an external event. Use the External Event Control Register (offset 005) in the control block to enable the external event function and to select the active edge for capture. When the bc330VME detects the appropriate edge of the event signal it will freeze the time and load the Event Capture Time Data Block (offset 421-437) with the time. The bc330VME is no longer available and was replaced by the bc635VME card.
