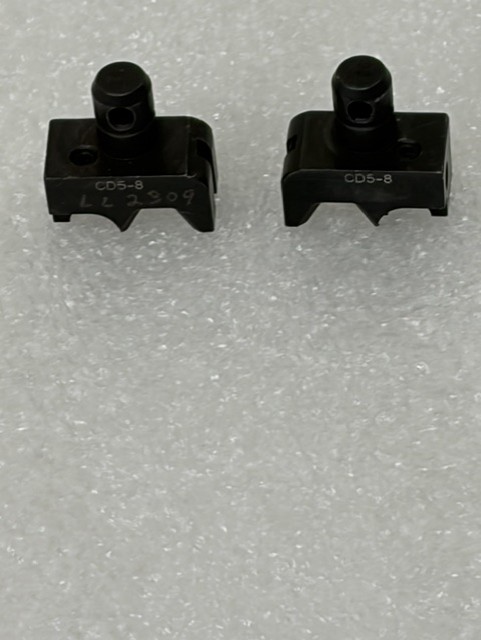

The Daniels CD5-8 is a mil-spec crimp die set used with M22520/5-01 style crimp tool handles, commonly for Trompeter twinaxial and triaxial connector applications. It is also referenced as the Daniels Y778 die set.
Key Specifications
- Compatible with: M22520/5-01 crimp tool handles
- Typical applications:
- Trompeter 155 Twinax connectors
- 70 and 150 series TRB/TRS/TTM connectors
- Twinax cable groups 201–225
- Crimp sizes:
- 0.344″ hex crimp
- 0.263″ shield crimp
| Weight | 1 lbs |
|---|---|
| Dimensions | 6 × 3 × 2 in |
