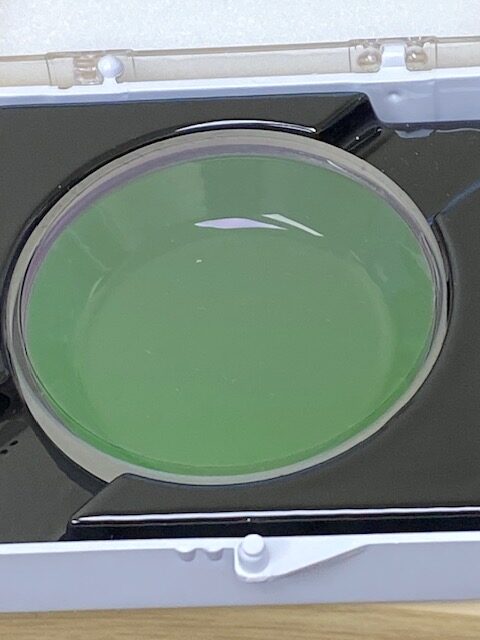

CVI Melles Griot PLCX‑50.8‑515.1‑C‑1050‑1600 Plano Convex Spherical Lens

CVI Melles Griot PLCX‑50.8‑515.1‑C‑1050‑1600 Plano Convex Spherical Lens

• PLCX — indicates a Plano‑Convex spherical lens series.

• 50.8 — nominal diameter in millimeters (2.00″).

• 515.1 — radius of curvature of the convex surface (in mm).

• C — typically refers to BK7 optical glass substrate (common visible/near‑IR optical material).

• 1050‑1600 — specified anti‑reflection coating wavelength range (optimized for 1050–1600 nm).

These lenses are used in systems where you need to focus or expand light in the near‑infrared range, such as laser beam delivery, imaging systems, or research optics.
