CVI Laser Optics custom AR-coated optical window 720-780nm

Product Description

High-Precision Custom AR-Coated Optical Window 720-780 nm from CVI Laser Optics for a Leading U.S. Defense Research Laboratory – Military-Grade for Space and Defense Applications

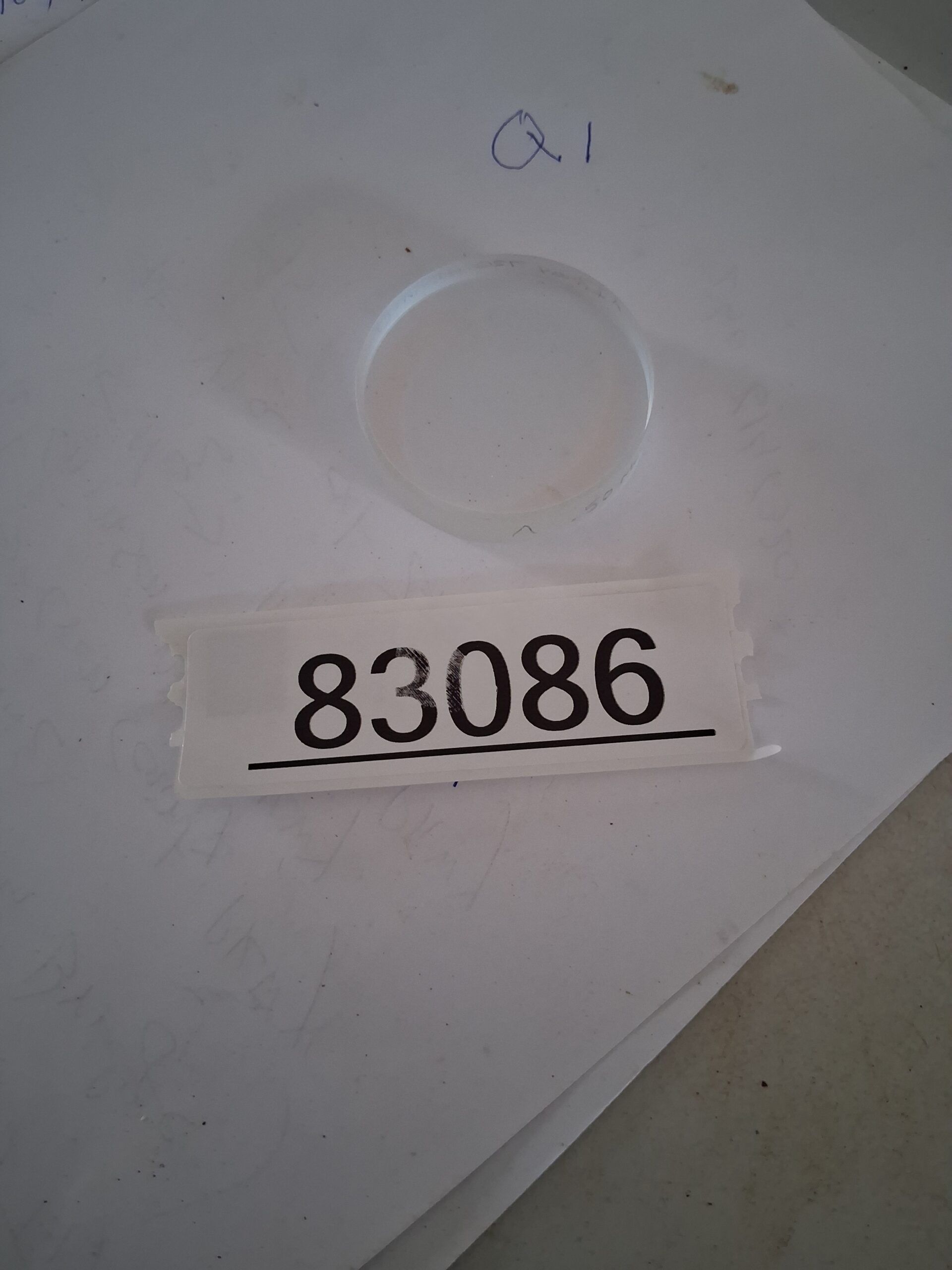

Elevate your optical system with this premium, custom-fabricated plano-plano optical window, originally commissioned by CVI Laser Optics (now part of IDEX Optical Technologies) for a specialized space optics defense project at a leading U.S. defense research laboratory . This 2-inch diameter, 10 mm thick optic exemplifies military-grade precision, designed to meet stringent requirements for high-power laser transmission in demanding environments like satellite systems, directed energy applications, and aerospace photonics. Sourced directly from surplus inventory, this piece is in pristine condition, ready for integration into your R&D, defense, or scientific setup.

CVI Laser Optics is a globally recognized manufacturer of precision optical components, known for their high-performance optics engineered for demanding photonics applications, including semiconductor processing, scientific instrumentation, and defense technology . Their components are built to tight optical tolerances using advanced manufacturing processes, stringent quality control, and proven coating technologies .

---

Key Specifications

---

Substrate & Coating Advantages

UV-Grade Fused Silica Substrate :

• Exceptional thermal stability and ultra-low thermal expansion for consistent performance across temperature variations

• High purity (>99.9%) minimizes absorption and scatter – critical for high-power laser applications

• Excellent transmission from UV through near-IR

• High resistance to laser-induced damage

• Superior mechanical strength and chemical durability

Broadband AR Coating (720-780 nm) :

• Multi-layer dielectric coating engineered for maximum transmission in the NIR band

• <0.2% average reflectivity per surface ensures minimal optical loss

• Optimized for 0° angle of incidence, supporting common laser sources including Ti:sapphire and diode lasers

• Hard, durable coating resistant to cleaning and environmental exposure

• Vacuum-deposited for superior uniformity and adhesion

Military-Grade Surface Quality :
The 10-5 scratch-dig specification per MIL-PRF-13830B represents the highest standard of surface quality, with:

• Scratch width: 10 (extremely fine, barely visible under magnification)

• Dig diameter: 5 (tiny imperfections, 0.05mm max)

• Zero visible defects under inspection – critical for space and defense optics where even minor imperfections can compromise performance

Transmitted Wavefront Error (TWE) :
< λ/10 peak-to-valley at 633 nm ensures:

• Near-diffraction-limited performance

• Minimal wavefront distortion in transmitted beams

• Preservation of beam quality in high-precision systems

---

Edge Markings & Traceability

The edge-inscribed markings provide immediate verification of specifications:

These authentic manufacturing codes from CVI Laser Optics confirm the optic’s provenance and specifications without requiring documentation.

---

Applications

Defense and Aerospace :

• High-power laser systems in directed energy weapons

• Missile guidance and target designation

• Space-based optics and satellite payloads

• Laser-based remote sensing

• Beam propagation in vacuum environments

Scientific Research :

• Laser spectroscopy and photonics experiments

• Quantum optics and atomic physics

• Ti:sapphire laser systems (tunable 700-1000 nm)

• Ultra-fast laser applications

• Optical metrology and interferometry

Industrial Uses :

• Precision manufacturing and materials processing

• Medical lasers (730-780 nm therapeutic range)

• Custom beam delivery systems

• Vacuum chamber viewports for NIR applications

Customization Potential :

• The 10 mm thick substrate minimizes thermal lensing under intense beams

• Easily adaptable for telescopes, sensor arrays, and high-power laser systems

• Suitable for vacuum and space environments

---

Provenance & Rarity

Crafted as a single-unit prototype for a leading U.S. defense research laboratory, a forefront institution in national security technologies, this optic was tailored for a defense-related space project, likely involving:

• Laser-based remote sensing

• Beam propagation in vacuum

• Optical payloads for satellites

Its custom design, military-grade specifications, and single-unit production make it a rare find in the surplus market – not a standard catalog item, but a precision component fabricated for a specific mission-critical application.

---

Condition

PRISTINE – UNUSED
STORED IN ORIGINAL PROTECTIVE PACKAGING
NO VISIBLE DEFECTS, SCRATCHES, OR COATING DAMAGE
OPTICAL SURFACES: CLEAN, COATING INTACT
EDGE MARKINGS: CLEARLY LEGIBLE
READY FOR IMMEDIATE INTEGRATION

⚠ HANDLING NOTE: This is a precision optical component with delicate AR coatings. Handle only by edges with clean gloves. Never touch coated surfaces. Store in clean, dry environment when not in use.
