Custom Vacuum Control Panel

Product Overview

A Custom Vacuum Control Panel is a specialized control system designed to manage and regulate vacuum systems used in industrial, scientific, and research applications. This panel integrates vacuum pumps, sensors, valves, and controllers to ensure precise vacuum regulation and automation.

Key Features

• Custom Configuration: Tailored to specific vacuum system requirements

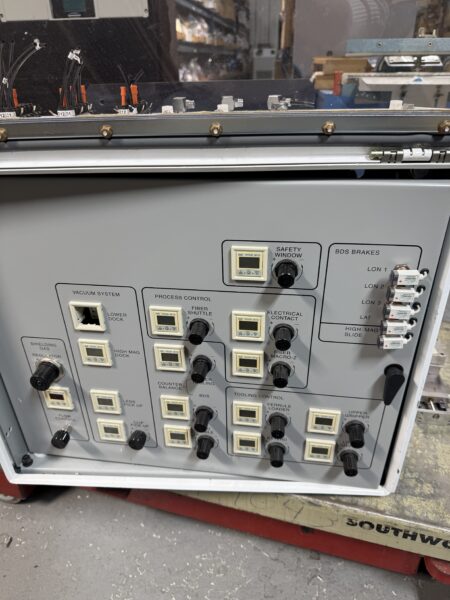

• User Interface: Digital display, touchscreen, or analog gauges for real-time monitoring
• Vacuum Regulation: Supports multiple pressure ranges (high, medium, low vacuum)
• Integrated Sensors: Includes vacuum transducers, thermocouples, and capacitance manometers

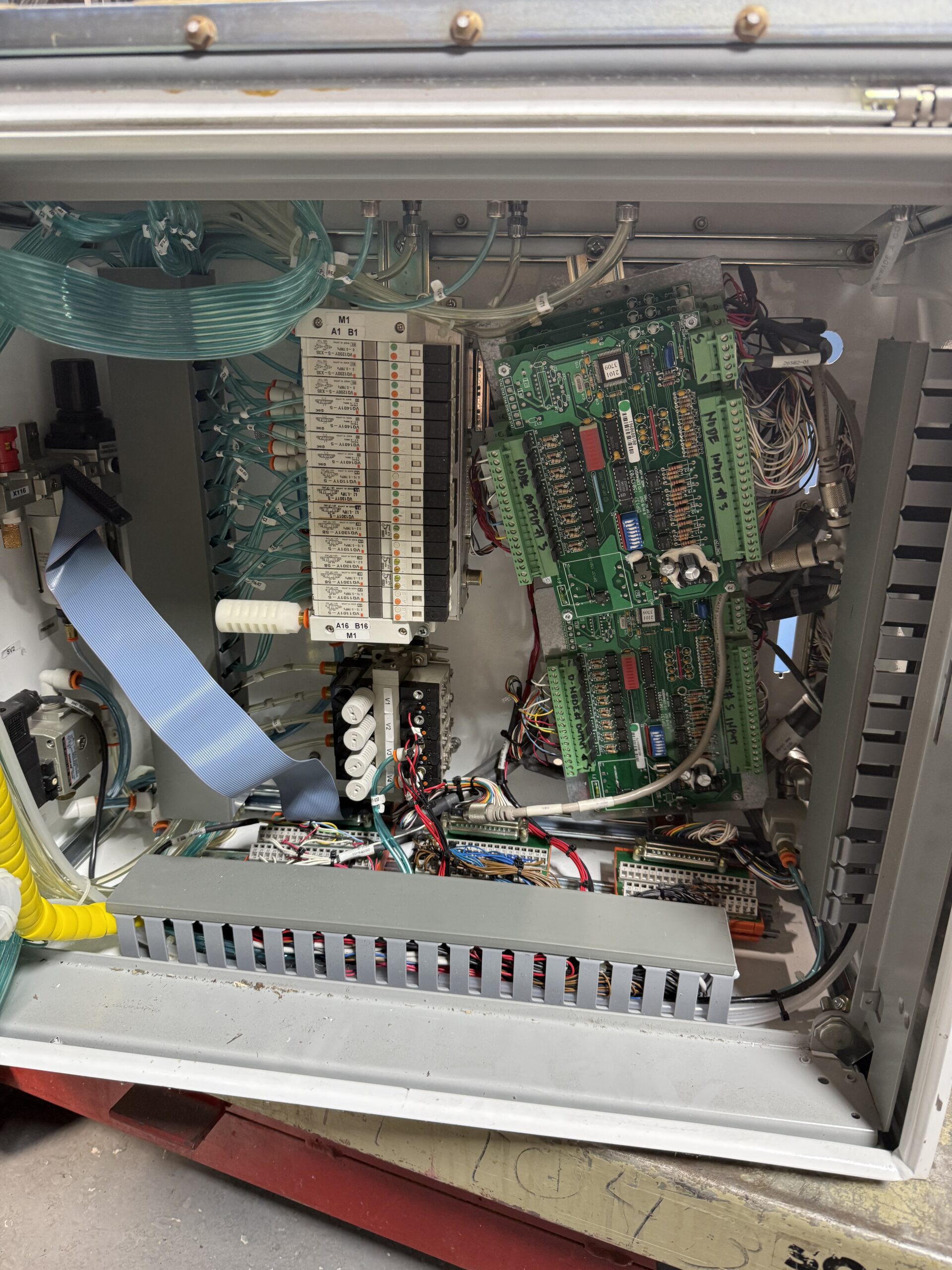

• Automated Controls: Programmable logic control (PLC) for automation and system protection
• Connectivity: Supports RS-232, RS-485, Ethernet, and Modbus for remote monitoring
• Safety Features: Overpressure protection, leak detection, and emergency shutoff
• Material & Enclosure: Industrial-grade materials, NEMA-rated or stainless-steel enclosures for cleanroom compatibility

Applications

• Semiconductor & Electronics Manufacturing
• Laboratory & Research Facilities
• Vacuum Coating & Deposition Systems
• Medical & Pharmaceutical Processing
• Industrial Vacuum Furnaces & Heat Treatment

Customization Options

• Pump Compatibility: Rotary vane, turbomolecular, cryogenic, or dry scroll pumps
• Vacuum Ranges: Low, medium, or ultra-high vacuum (UHV) control
• Data Logging & Remote Control: Integration with SCADA or cloud-based monitoring
• Multiple Zone Control: Manage multiple vacuum chambers independently

Conclusion

A Custom Vacuum Control Panel provides precision control, automation, and safety for vacuum-dependent applications. Designed for reliability and efficiency, it enhances process stability in demanding industrial, laboratory, and research environments.
