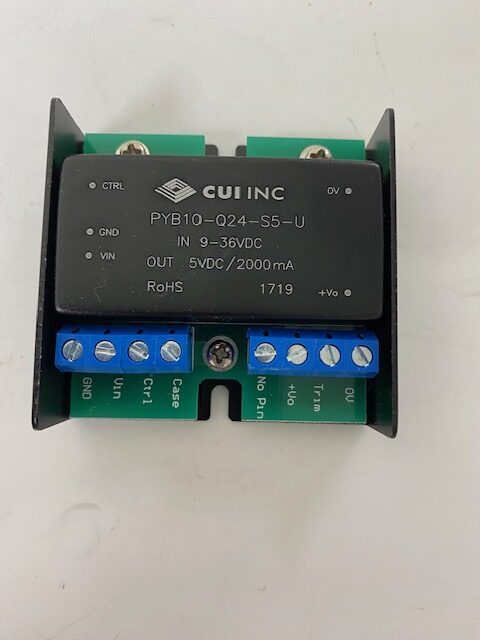

CUI Inc. PYB10-Q24-S5-U DC Converter

🔧 Overview & Specs

• It’s a 10 W isolated DC‑DC converter, chassis‑mount style, delivering 5 V at 2 A from a 9–36 V input. Efficiency around 82%, operating from –40 °C to +85 °C, with 1.5 kV isolation

• Obsolete / Discontinued: The PYB10‑Q24‑S5‑U is no longer manufactured, and marked as obsolete by both DigiKey and CUI (now Bel Fuse)

• Basic specs:

  • Input voltage: 9–36 VDC

  • Output: 5 V @ 2 A (10 W)

  • Isolation: ~1500 VDC

  • Efficiency: ~82%

  • Operating temp: –40 °C to +85 °C

  • Case: chassis‑mount package, ~55 × 52 × 19 mm
