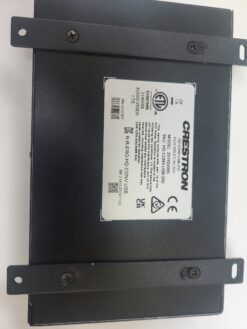

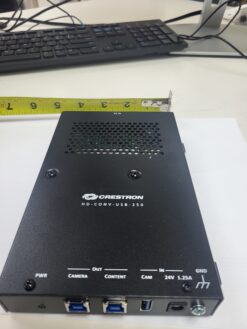

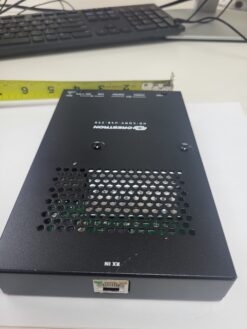

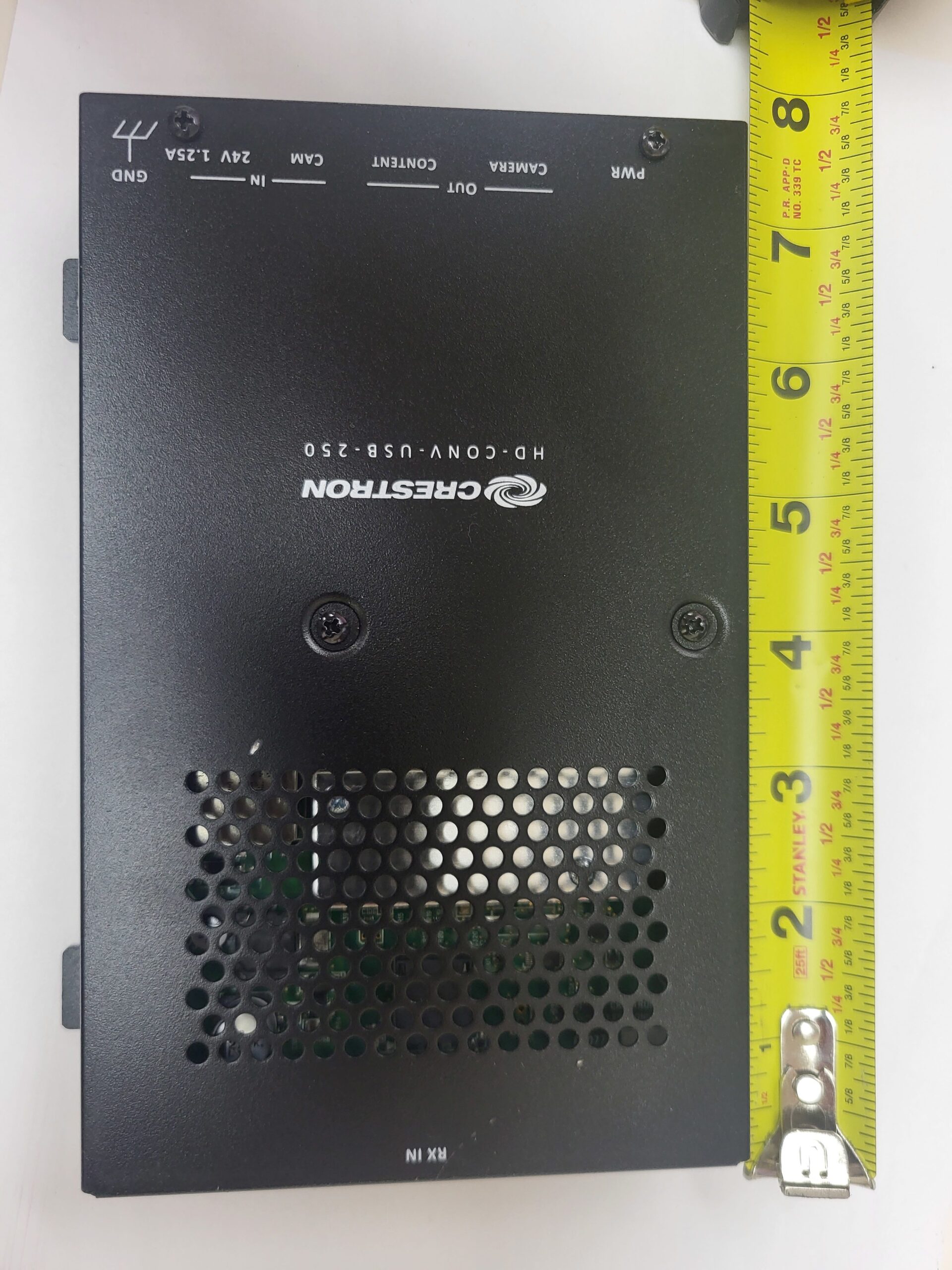

Crestron HD-CONV-USB-250
$80.00
SKU: 75939
This device complies with part 15 of the FCC Rules.
- Captures uncompressed HD 1080p60 video and stereo audio over CAT5e or better cable
- Converts uncompressed HD 1080p60 video and stereo audio to USB 3.0 output
- Near-zero latency
- Compact surface mountable housing
1 in stock
CompareThe HD-CONV-USB-250 is an AV and HDMI® over CAT5 to USB Converter. It is one of the components that make up a Crestron Flex UC Video Conference System with Bring Your Own Device (BYOD) functionality.
| Video | ||
| Input Signal Type | HDMI over CAT51 | |
| Output Signal Type | USB 3.0 supporting UVC | |
| Input/Output Resolution | HD 1080p @ 60 fps | |
| Output Color Space | YUY2 4:2:2 | |
| Audio | ||
| Input Signal Types | HDMI over CAT51 | |
| Output Signal Types | USB 3.0 supporting UAC | |
| Format | Stereo 2-channel PCM | |
| Bitrate | 16-bit 48 kHz | |
| Communications | ||
| USB | USB 3.0 Type A device supporting USB HID, UVC, & UAC; USB 3.0 Type B device supporting USB HID, UVC, & UAC |
|
| HDMI over CAT51 | HDCP, EDID, Ethernet | |
| Connectors | ||
| RX IN | (1) 8-pin RJ-45 female, shielded; | |
| USB | (2) USB 3.0 Type-B connectors, female; (1) USB 3.0 Type-A connector, female |
|
| PWR | 24 VDC, 1.25 A, 2.1 mm | |
| G | (1) 6-32 screw; Chassis ground lug |
|
| Indicators | ||
| PWR | (1) Green LED, indicates operating power supplied via PSU | |
| Power | ||
| 24 VDC via external 100-240 VAC, 50/60 Hz power pack, model PW-2412WU (included with devices containing the HD-CONV-USB-250) | ||
| Environmental | ||
| Temperature | 32° to 104° F (0° to 40° C) | |
| Humidity | 10% to 90% RH (non-condensing) | |
| Construction | ||
| Housing | Aluminum, black | |
| Mounting | Freestanding or surface mount (mounting brackets included) | |
| Dimensions | ||
| Height | 1.01 in. (26 mm), 1.09 in. (28 mm) with mounting brackets | |
| Width | 4.55 in. (116 mm), 5.20 in. (132 mm) with mounting brackets | |
| Depth | 7.15 in. (182 mm) | |
| Weight | 3 lbs |
|---|---|
| Dimensions | 8 × 8 × 2 in |
