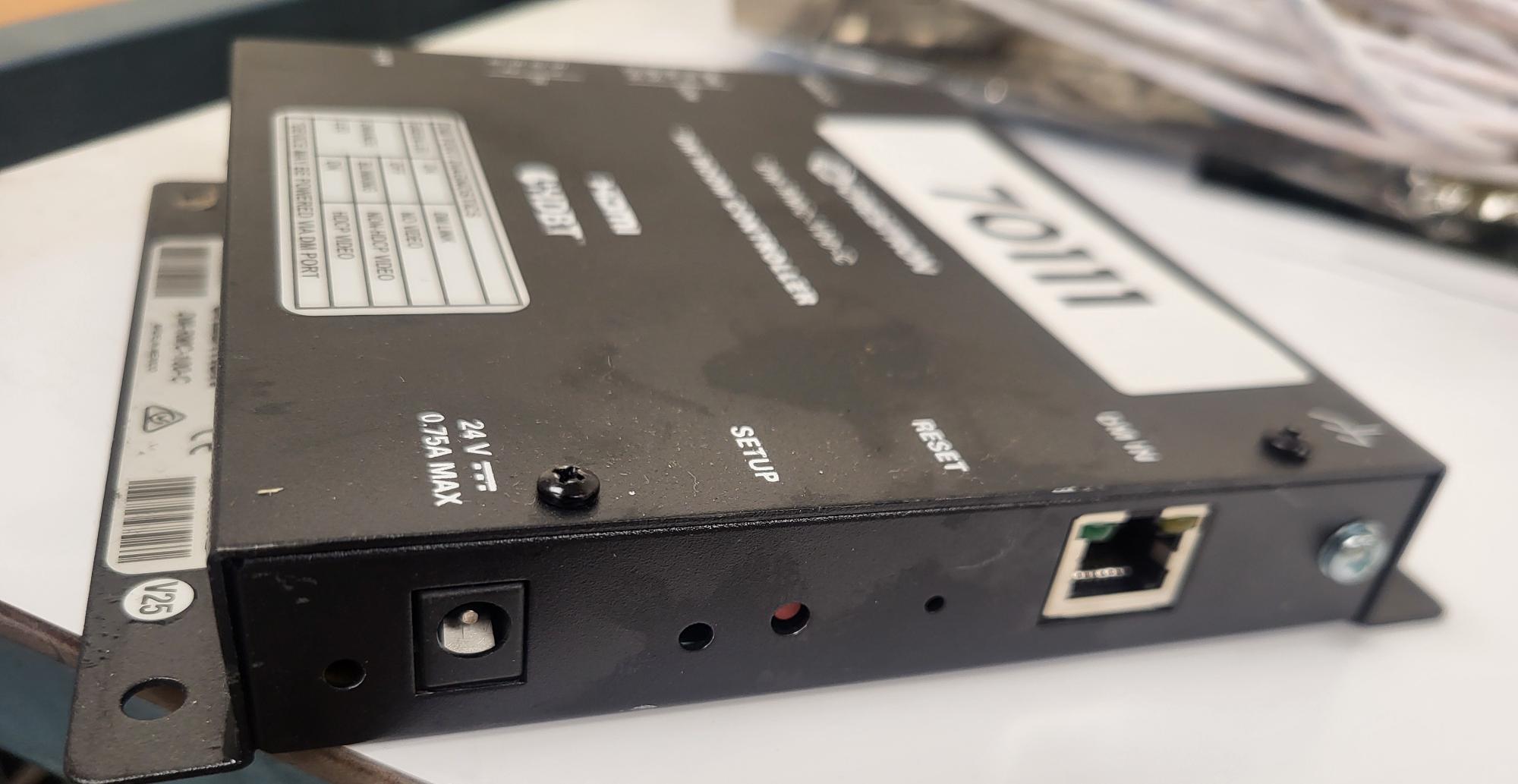

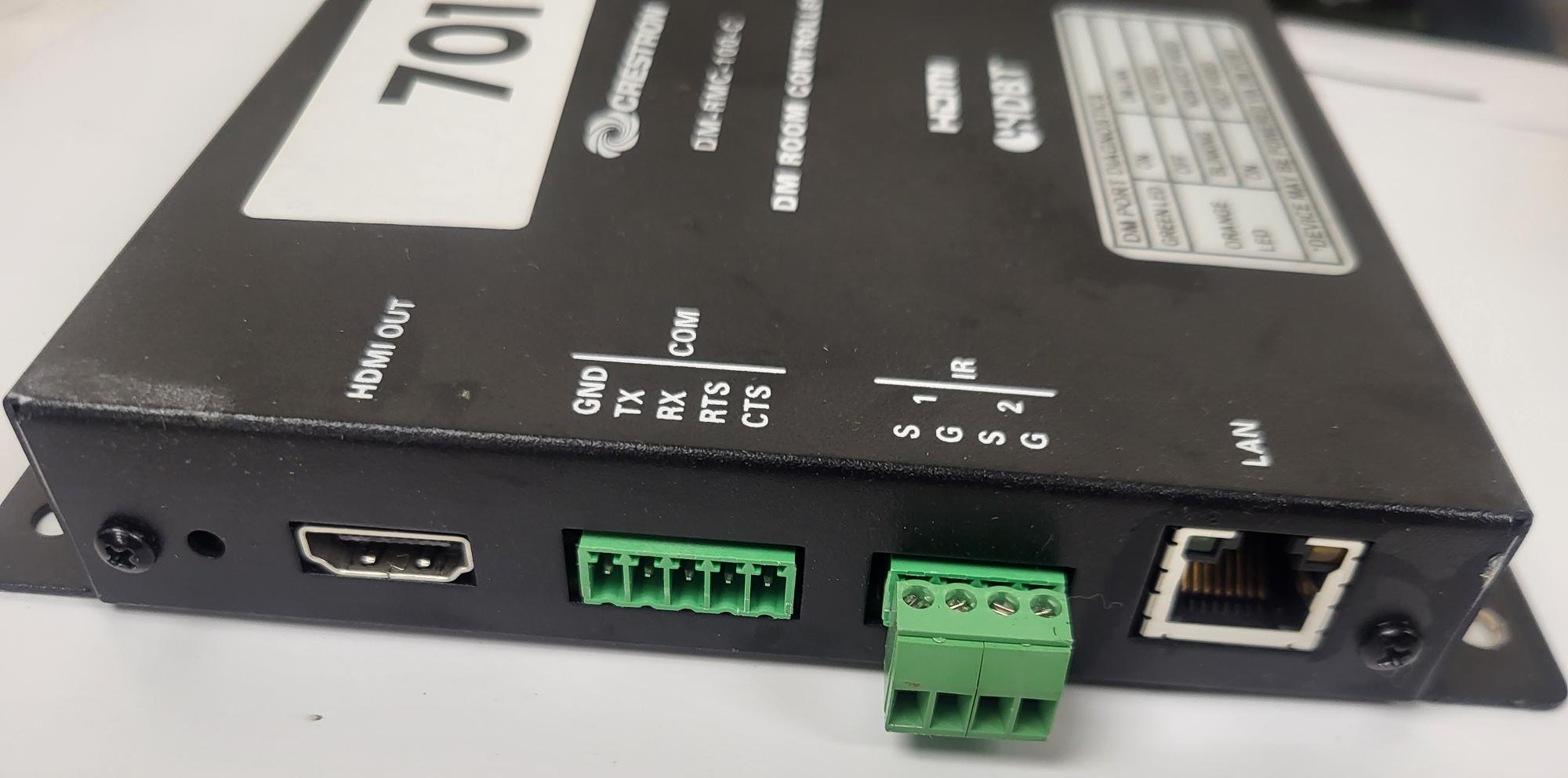

Crestron DM-RMC-100-C DM Room Controller

This is a used item.

Untested

Being sold “as is” not eligible for return

Power supply not included, 24V DC Power supply is required.

The Crestron DM‑RMC‑100‑C is an integrated DigitalMedia 8G+ receiver and room controller, designed to interface seamlessly with a single display within a Crestron DM system.

Key Features

• Single HDMI/DVI output for connecting to displays; supports HDCP, 3D, Deep Color, Dolby TrueHD, DTS‑HD and uncompressed 7.1 PCM audio

• DM 8G+ receiver + HDBaseT compatibility over one CAT5e/6 cable—carrying video, audio, Ethernet, control, and power up to 100 m

• Integrated control interfaces: Ethernet (10/100 Mbps), RS‑232, IR, and HDMI-CEC for advanced device control

• Embedded device control eliminates the need for external control wires

• Power options: powered via PoDM/PoH over DigitalMedia cable or from included 24 V DC wall-pack

• Low-profile, mountable design: just 1″ (25 mm) high, ideal for behind displays or ceilings

• Support for USB-over-Ethernet via optional USB‑EXT‑DM module .

• Easy integration with Crestron Toolbox and SIMPL programming tools for IP addressing, firmware updates, and device control.

📐 Technical Specs

• Video: Up to 1080p or WUXGA via HDMI; adapts to DVI with adapter .

• DM‑8G / HDBaseT distance: up to 330 ft (100 m) .

• Control: Ethernet, RS‑232, IR, CEC support

• Mounting: Wall, ceiling, or rack rail .

• Dimensions: ~5.6″ x 5.5″ x 1″ (143 × 141 × 25 mm) .

🧩 Ideal Applications

• Meeting rooms & classrooms: Centralized AV control with streamlined deployment.

• Digital signage: Reliable, long-distance HD delivery and management.

• Legacy system support: Solid compatibility with older DM infrastructures.
