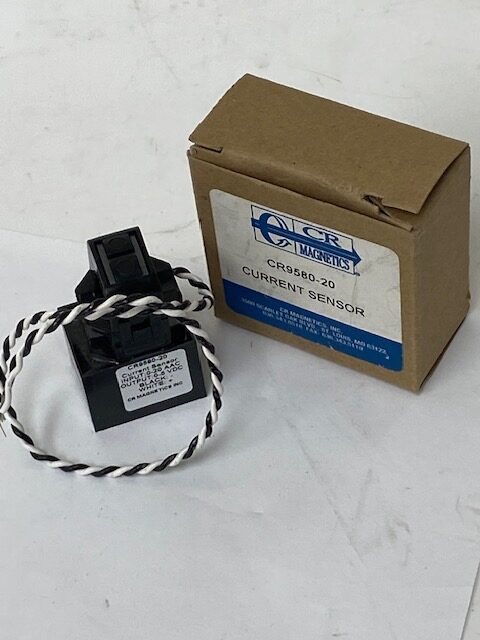

CR Magnetics CR9580-20 AC Current Sensor

The CR Magnetics CR9580‑20 is a split‑core, self‑powered AC current sensor calibrated to output a 0–5 VDC signal representing 0–20 AAC in average‑RMS form. Key specs:

• Input Current Range: 0–20 A AC

• Output: 0–5 VDC (load ≥ 1 MΩ for rated accuracy)

• Accuracy: ±0.5% of full scale

• Frequency Range: 50–400 Hz

• Response Time: ~250 ms (10–90% full scale)

• Core Opening ID: ~0.40″ (split-core)

• Operating Temp: –30 °C to +60 °C

• Isolation Voltage: 2,500 Vrms

• Insulation Class: 600 V

🧰 Features & Applications

• Conditioned & calibrated output directly interfaceable to analog input modules without further signal conditioning. Output is average sensing but RMS‑calibrated. Burden impedance must be ≥ 1 MΩ to maintain ±0.5% accuracy.

• Fully isolated and reverse‑polarity protected, making it safe for industrial control, energy monitoring, motor operation tracking, or OEM instrumentation.

• Self‑powered—no external power required.
