CP Cases ERACK Aluminum Electronics Transit Rack

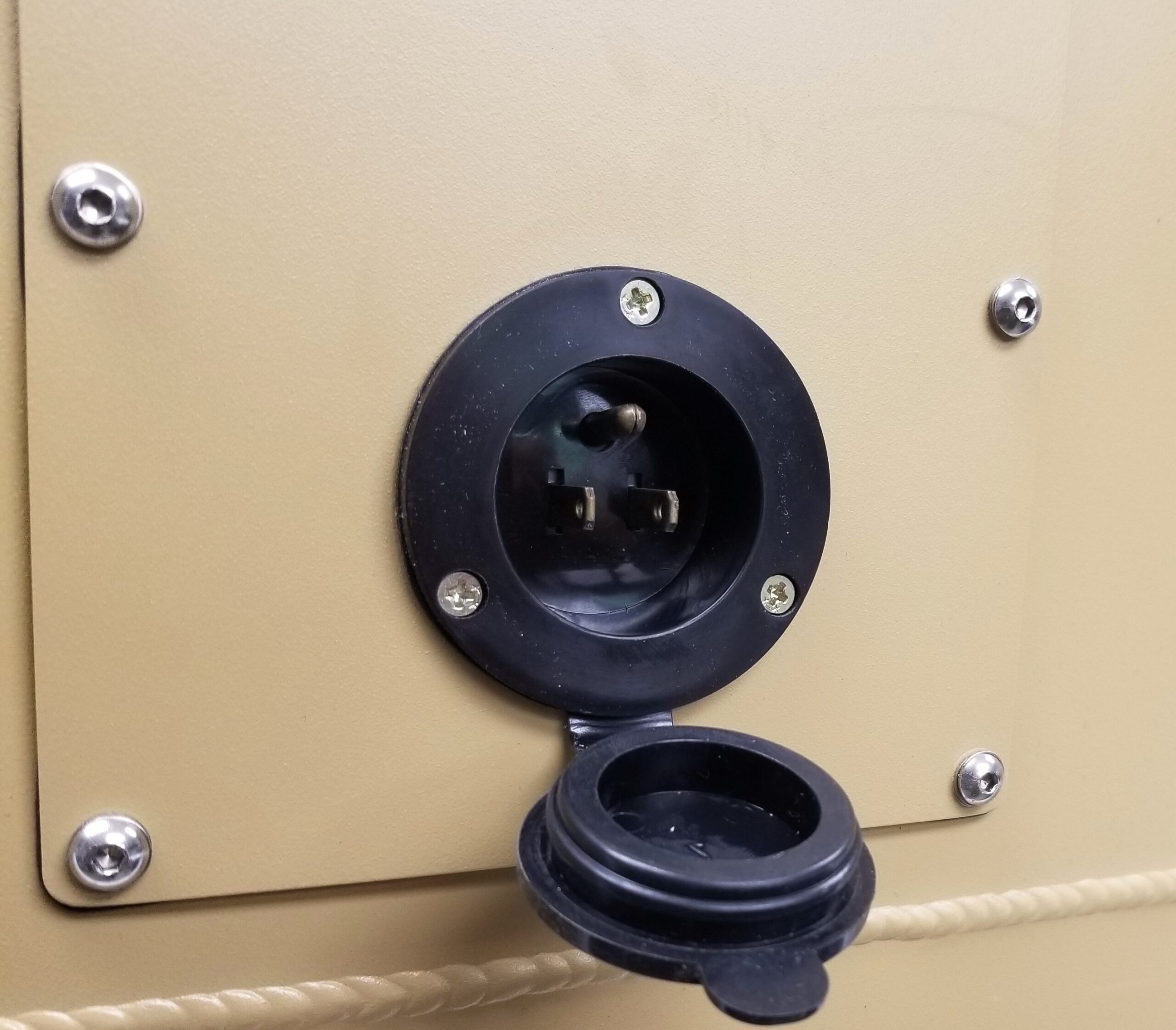

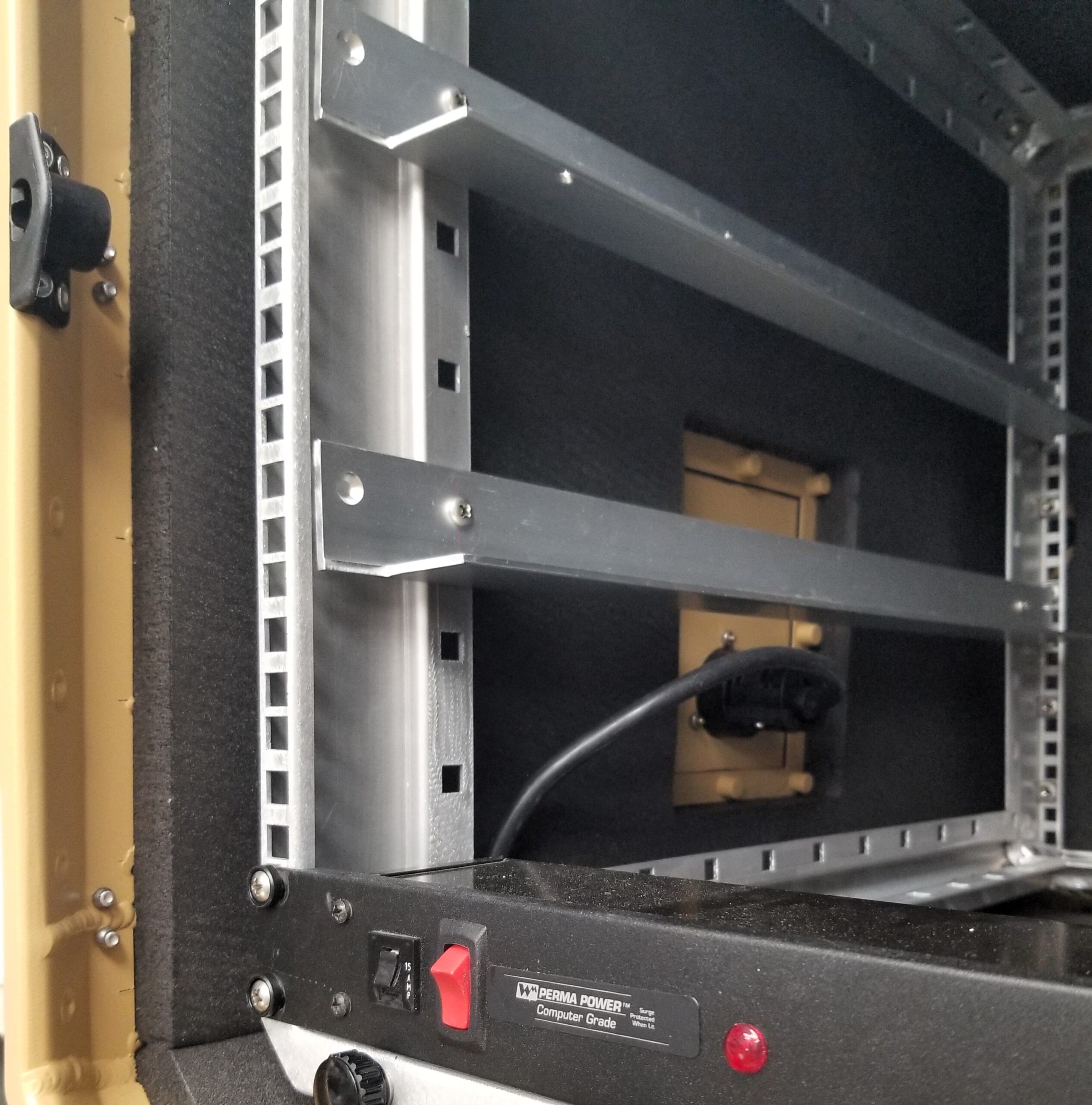

CP Cases ERACK Aluminum Electronics Transit Rack. 34″L X 24″W X 24″H. Weatherproof silicone seals (IP65) with recessed push-twist lock latches on front and rear hatches. Weatherproof 20 Amp A.C. power input receptacle to interior switched heavy duty rack mount power strip. Interior equipment frame is mounted to 8 elastomeric shock absorbers. Equipment rail height is 17″ (power strip removed) and maximum equipment depth is 26″.  Local pick-up or arrange your own transport is preferred for this item. The shipping cost will be high due to its size.

ERack is a lightweight, 19-inch ruggedized aluminum transit rack for protection of electronics and secure communications equipment. It is specifically designed for commercial and military applications when protection against physical, climatic and electromagnetic hazards are required, and where weight, strength and portability are critical issues. The external monocoque container is manufactured from 1.5mm aluminum alloy providing resistance to corrosion, impact and deformation. ERacks retain exceptional strength after welding and are used extensively for aircraft parts, pressure vessels, marine structures and rugged transport containers.

ERack benefits from patented new technology. The external container has an innovative folded rim design, which eliminates the edge extrusion and makes the case stronger, lighter and more resistant to ingress by water and dust. The internal chassis frame is supported by special mounts which protect against shock. ERack is up to 30% lighter than other rack cases in its class. ERack has access to the front and rear 19-inch chassis via precision manufactured interchangeable lids. Each lid is secured to the rack body by front mounted quarter turn latches (allowing front and rear access when stacked). Positive location between lids and body is achieved by ERack’s unique male/female extrusions which incorporate a design copyright silicon seal giving all weather protection to IP65. ERack’s unique 19-inch chassis design is constructed from aluminum coated with Iridite Non-Chrome Passivation (NCP), delivering enhanced lightness and rigidity. The chassis is mounted on eight or sixteen elastomeric mounts, fixed to the outer casing by robust anchor plates, which are focused towards the center of mass of the case, ensuring the electronic equipment is protected against vibration and impact. ERack’s suspended inner chassis can move up to 2″ independently of the outer container, and in any direction. An earthing / grounding strap is fitted to maintain conductivity between the equipment and the outer container.
