Product Description

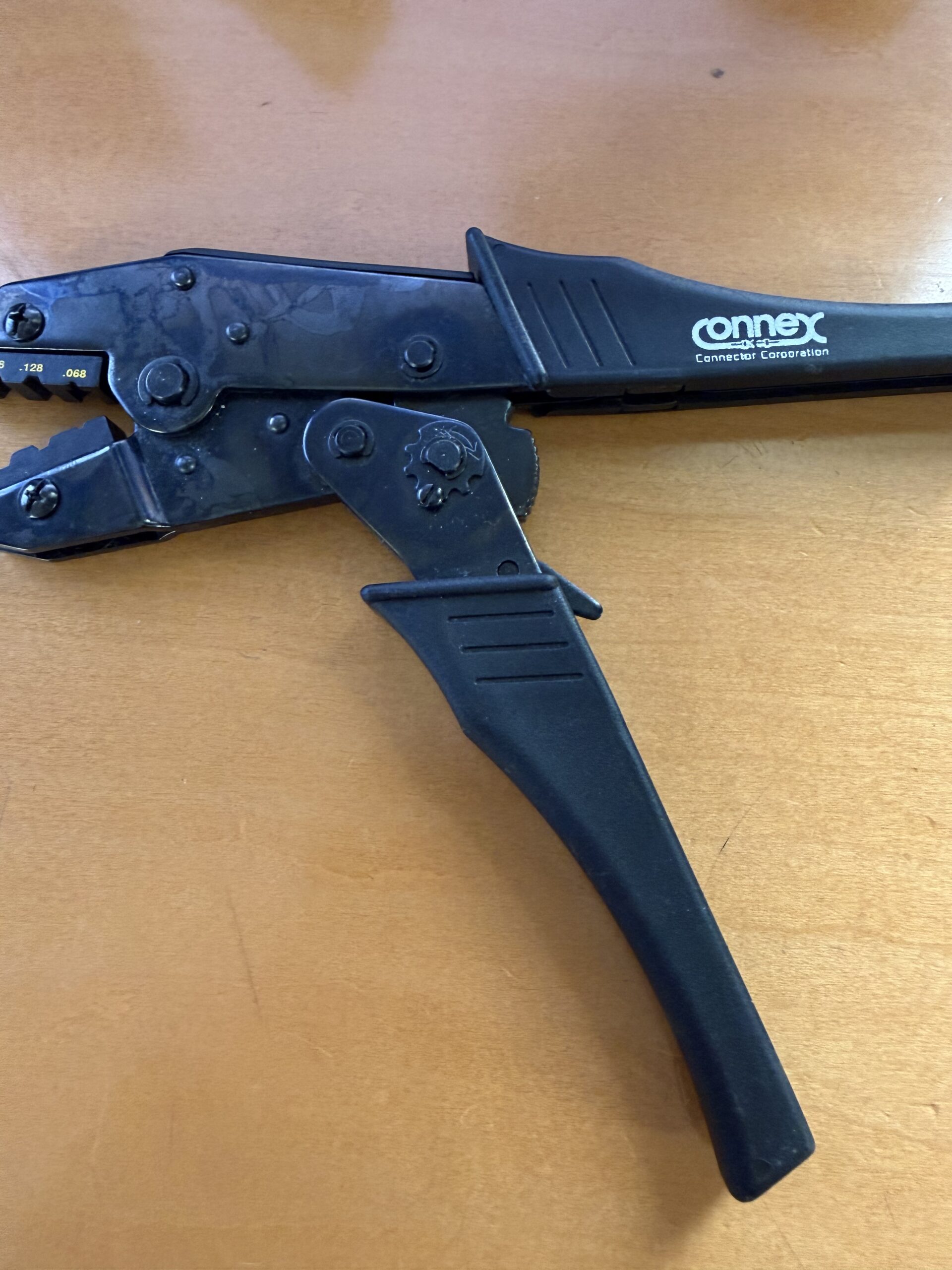

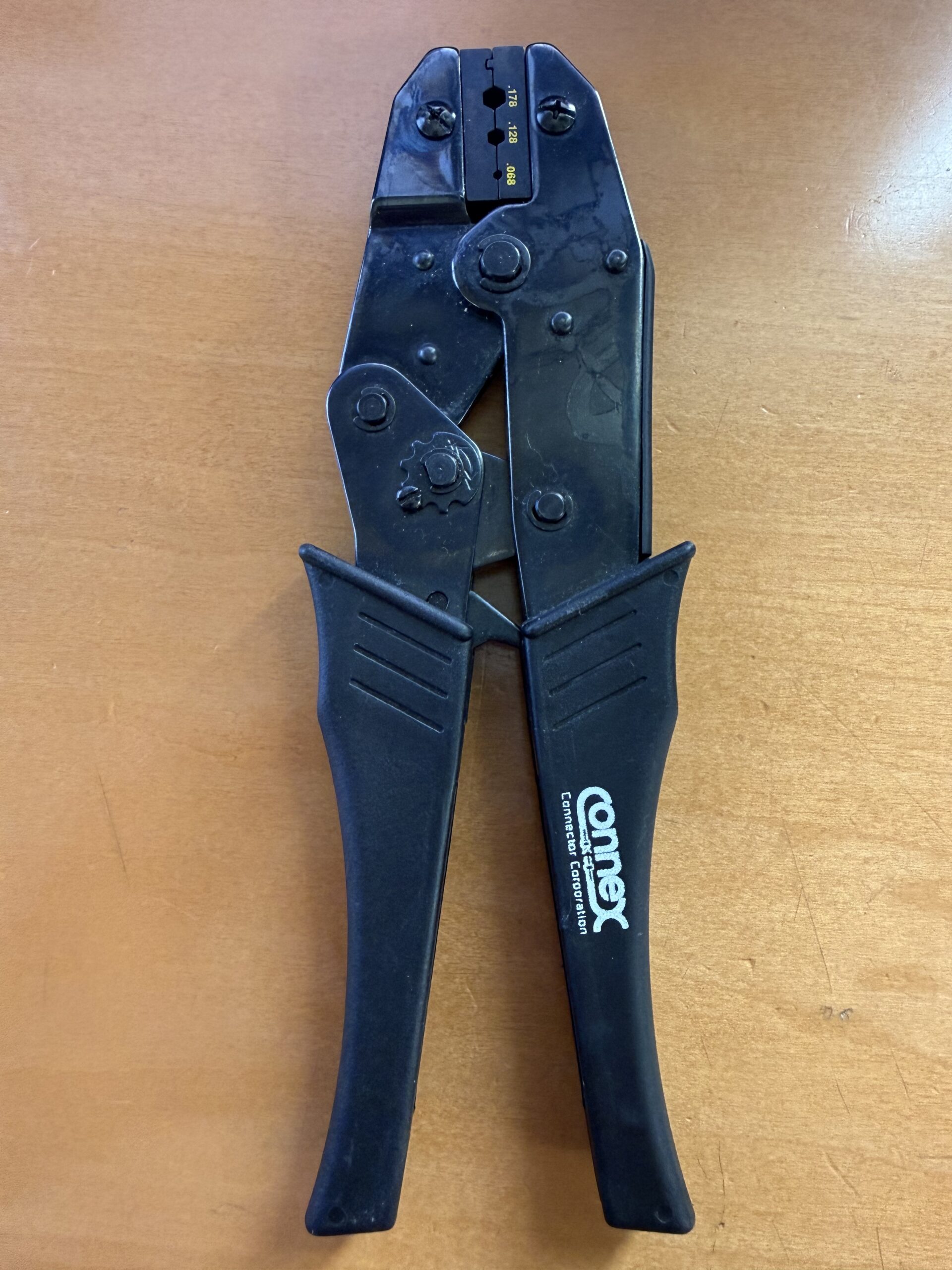

Connex Connector Corporation (Amphenol RF) 47-20004 Crimp Die Set – For Coaxial RF Connectors, .178/.128/.068 Hex Cavities
This used Connex 47-20004 is a dedicated die set designed for professional installation of coaxial RF connectors . It is part of the Amphenol RF Connex 47 Series tool family, known for precision ratchet crimping for connectors like BNC, TNC, and SMA .

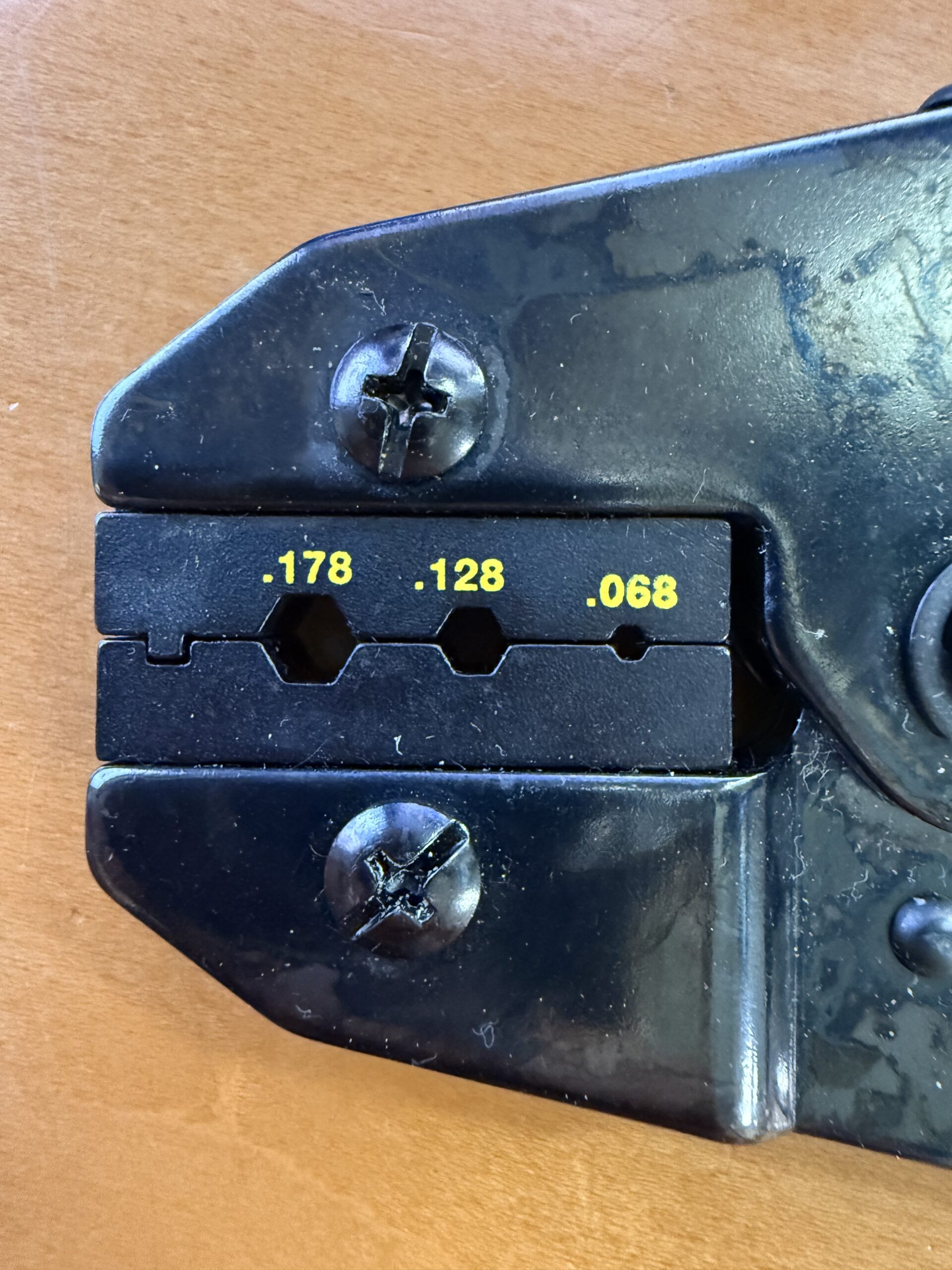

The die set features three precision-machined hex cavities: .178″, .128″, and .068″ . These dimensions correspond to the standard ferrule sizes used for terminating many popular coaxial cables including RG-174, RG-178, RG-179, RG-180, RG-187, RG-188, RG-195, RG-196, RG-316, and LMR-100 .
Designed for the 47-10000 Tool Frame:
This unit contains only the interchangeable die set. It does not include the tool handle. It is specifically designed to be inserted into the compatible Amphenol 47-10000 coax crimp tool frame . If you already own a 47-10000 frame, this die set allows you to quickly change cavity sizes without buying a whole new tool .
Condition Note: This is a used die set, removed from surplus stock. It may show slight signs of previous use, such as minor residue or burnishing on the metal surfaces, but remains structurally sound.
Key Specifications
| Specification | Details |
|---|---|
| Manufacturer | Connex Connector Corporation (Amphenol RF) |
| Part Number | 47-20004 |
| Tool Type | Interchangeable Crimp Die Set |
| Tool Family | Amphenol RF Connex 47 Series |
| Cavity Sizes (Hex) | .178″, .128″, .068″ |
| Compatible Tool Frame | 47-10000 |
| For Use With | Coaxial, RF Connectors (BNC, TNC, SMA) |
| Compatible Cables | RG-174, 178, 179, 180, 187, 188, 195, 196, 316, LMR100 |
| Status | Active |
| Package | Bag |
| Weight (approx.) | ~60 grams (0.13 lbs) |
| Condition | Used – Untested |
| Weight | 3 lbs |
|---|---|
| Dimensions | 12 × 9 × 3 in |
