Collins AN/ARC-186(V) 622-4038-001 Aircraft Transceiver
Original price was: $5,600.00.$4,600.00Current price is: $4,600.00.
SKU: 81082
1 in stock

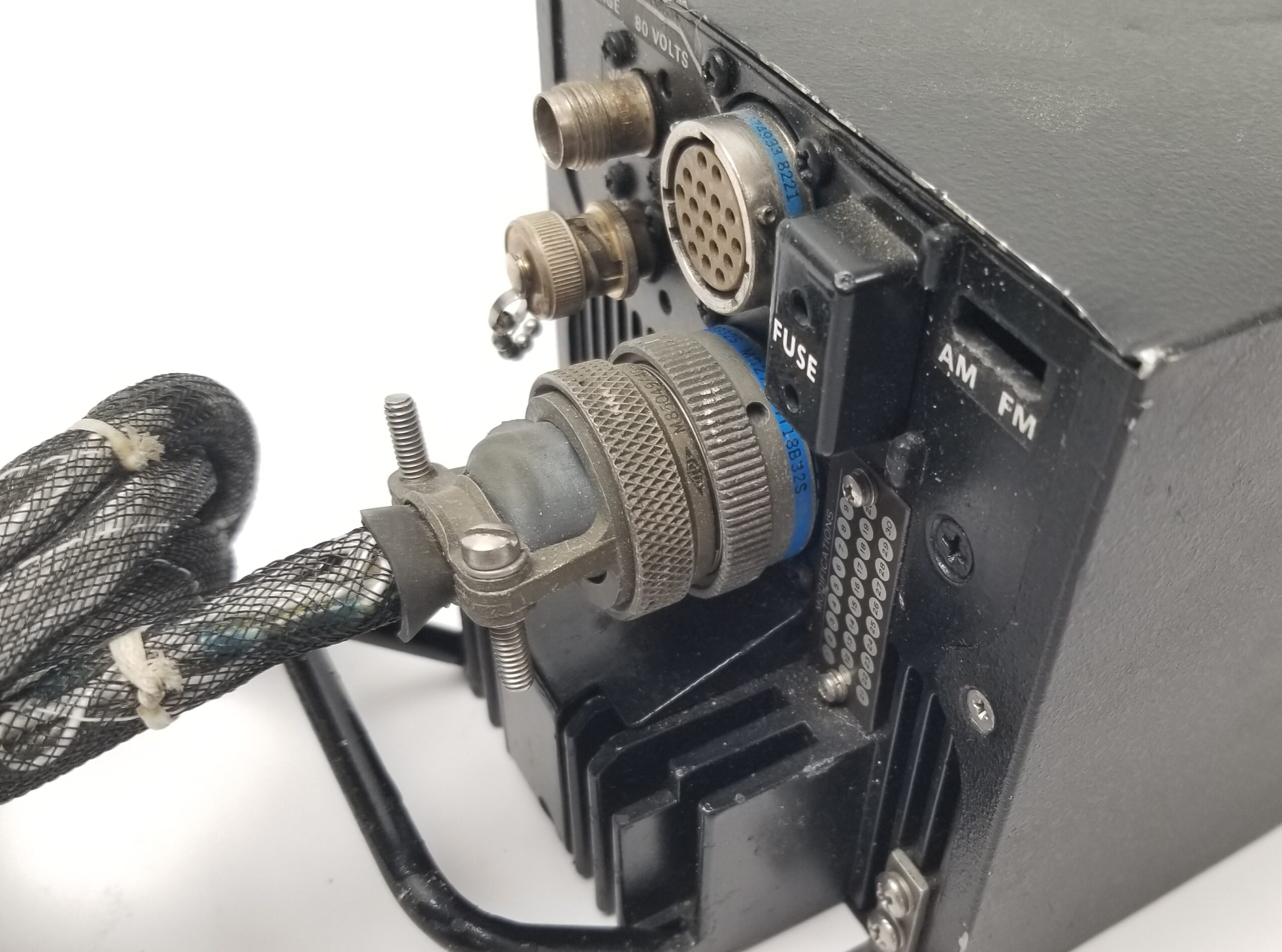

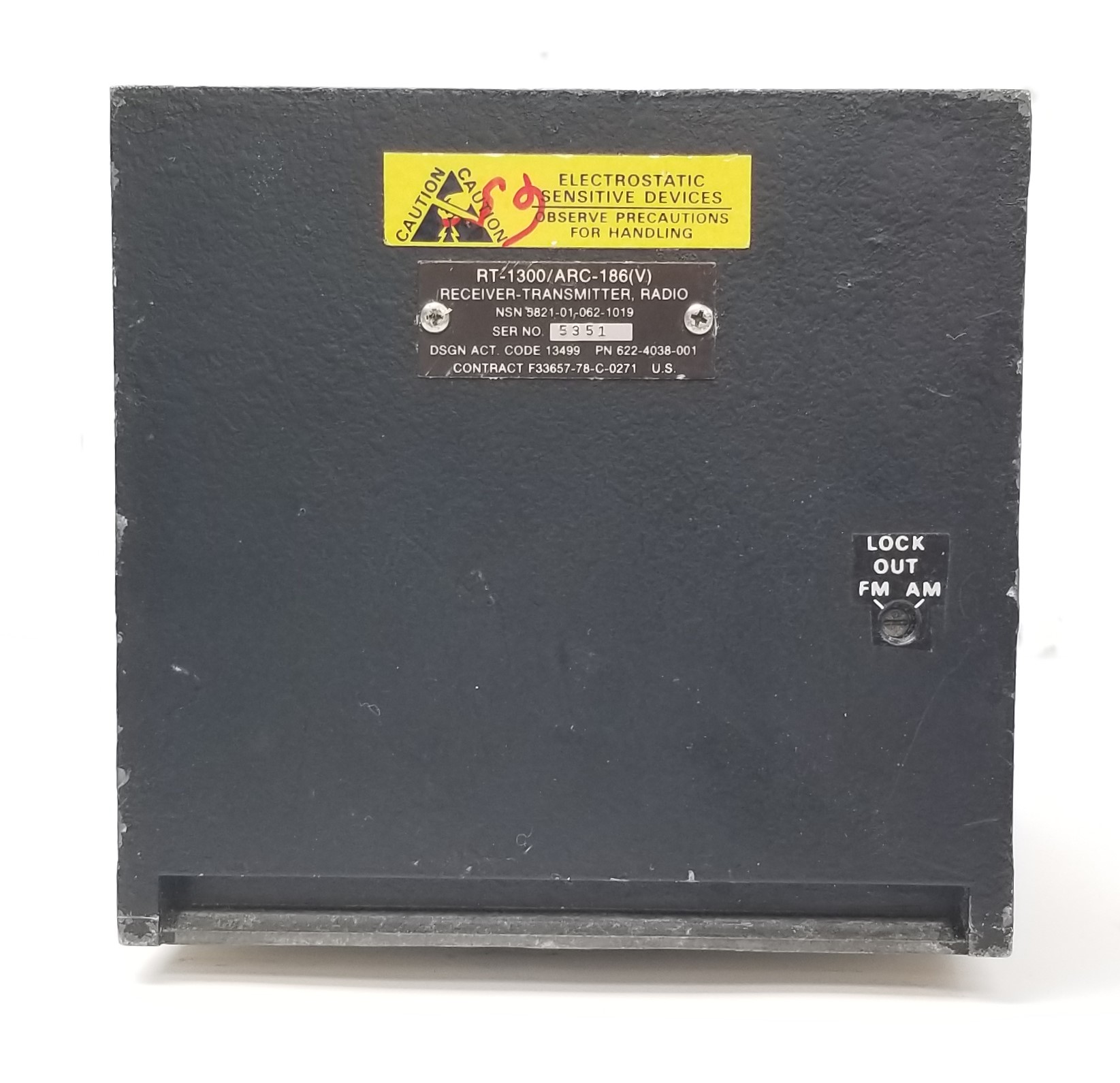

CompareCollins AN/ARC-186(V) 622-4038-001 Aircraft Transceiver. Unit carefully removed from ground station equipment rack. Unterminated, unlabeled cable with plug included. No manual, mounting tray or other accessories. As shown. Purchaser responsible for any maintenance, alignment, and certification if required before use in an aircraft. *THIS ITEM IS EXPORT RESTRICTED. Orders from Canada, Mexico and the U.S. will be accepted.
FEATURES
- The Collins AN/ARC-186(V) family of VHF transceiver is the military’s high production multiband airborne radio
- Provides dual band vhf operational capability in a substaintially smaller and lighter package
- Automatic direction find
- FM homing with optional module
- 2,320 channel VHF/FM, 25 kHz spacing
- 1,760 channel VHF/FM, 25 kHz spacing
- 20 preset channels, nonvitatile electronic memory
- secure voice compatible, both band
- Retransmission Capability
- Selectable wide-band or narrow-band operation
- Climax-compatible squelch
- VOR voice reception 108 to 116 MHz
- Tone transmit capability
- Dual or single antenna connection
- Enhanced electrostatic interface protection
SPECIFICATIONS
| Weight: | 7.0 lbs. (3.18 kgs.) | Dimensions: | Depth 241.3 mm (9.5 in), Width 127.0 mm (5.75 in), Height 120.625 mm (4.75 in) |
| Channel spacing: | 25 kHz, all bands | Temperature: | -54° to +71°C (Operating) |
| emergency preset: | 20 Channels, AM and or FM | service Shock: | 15 g (Operating) |
| Frequency Range: | 30 to 87.975 MHz FM, 108 to 115.975 MHz (receive only), 116 to 151.975 MHz AM | Frequency stability: | ±2 kHz of select center frequency |
| synthesizer Channel switching: | 10 millisecond, max | vibration: | Random 0.04 g2/Hz performance; 0.24 g2/Hz endurance |
| receiver audio output: | 200 mW into 150 or 600 ohms, Volume control variable from 0 to 37 ±3 dB | EMI: | MIL-STD-461A, Notice 3 |
| crash saftey shock: | 30 g | test method: | MIL-STD-810C |
| INPUT POWER: | 27.5 VDC, MIL-STD-704B | ENVIRONMENTAL: | MIL-E-5400, Class 1 (modified to +71°C) |
| SELECTIVITY: | Narrow band 19 kHz, Wide band 36 kHz (6-dB point) | CARRIER POWER: | 10 watts min (AM and FM), 16 watts max (FM) (into 52 Ohms) |
*THIS ITEM IS EXPORT RESTRICTED. Orders from Canada, Mexico and the U.S. will be accepted.
| Weight | 400 lbs |
|---|---|
| Dimensions | 12 × 12 × 12 in |
