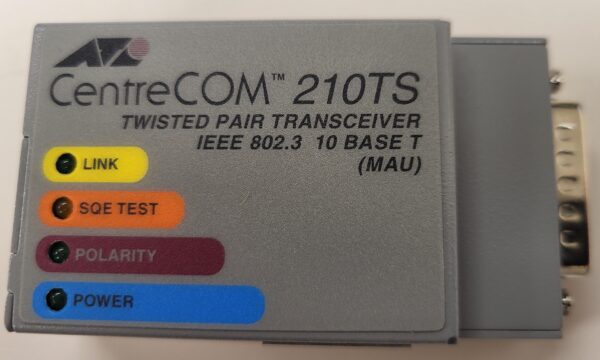

CentreCOM 210TS Twisted Pair Transceiver

CentreCOM 210TS Twisted Pair TransceiverIEEE 802.3 Base T (NEW)
model AT-210TS-050
SN IoK54156G
The CentreCOM Micro Transceivers are 10Base-2 and 10Base-T compliant transceivers designed to reduce Ethernet cabling costs.
Ethernet cabling costs. Compact size allows these transceivers to connect directly to the workstation, bringing thin Ethernet or Unshielded Twisted Pair (UTP) wiring directly to the workstation. With UTP and inexpensive coax network media, distances up to 100 meters between workstations can be supported using UTP, and up to 185 meters using coax. On all models Signal Quality Error (SQE)/Heartbeat test can easily be enabled or disabled via an externally accessible switch. Additionally, all models have integral jabber lock-up prevention circuitry and a loopback function. This function emulates coaxial media where transmitted packets are looped back to the receive side. Local Area Network (LAN) controllers can use the loopback feature to determine if a Media Attachment Unit (MAU) is connected and operational. This is a slim-line version of the device for improved mechanical fit for Macintosh, Sun SPARC stations and IBM RS/6000 workstations.

Product Identifiers

MPN
AT210TS
BRAND
Allied Telesis
Dimensions

Weight
73g

Additional Product Features

Data Transfer Rate
10Mbps
Connections
1X Network-Ethernet Aui-15 Pin D-Sub (Db-15) Female-1
Data Link Protocol
Ethernet
Enclosure Type
External
Interfaces
1 X Network-10base-T-R&J Enterprises-45 Female-1
Cabling Type
Ethernet Aui, Ethernet 10base-T
Dimensions (Wxdxh)
6.9×4.3×2.5cm
Compliant Standards
IEEE 802.3
Connectivity Technology
Wired
Status Indicators
Test Mode, Polarity, Link Activity, Power
