Product Description

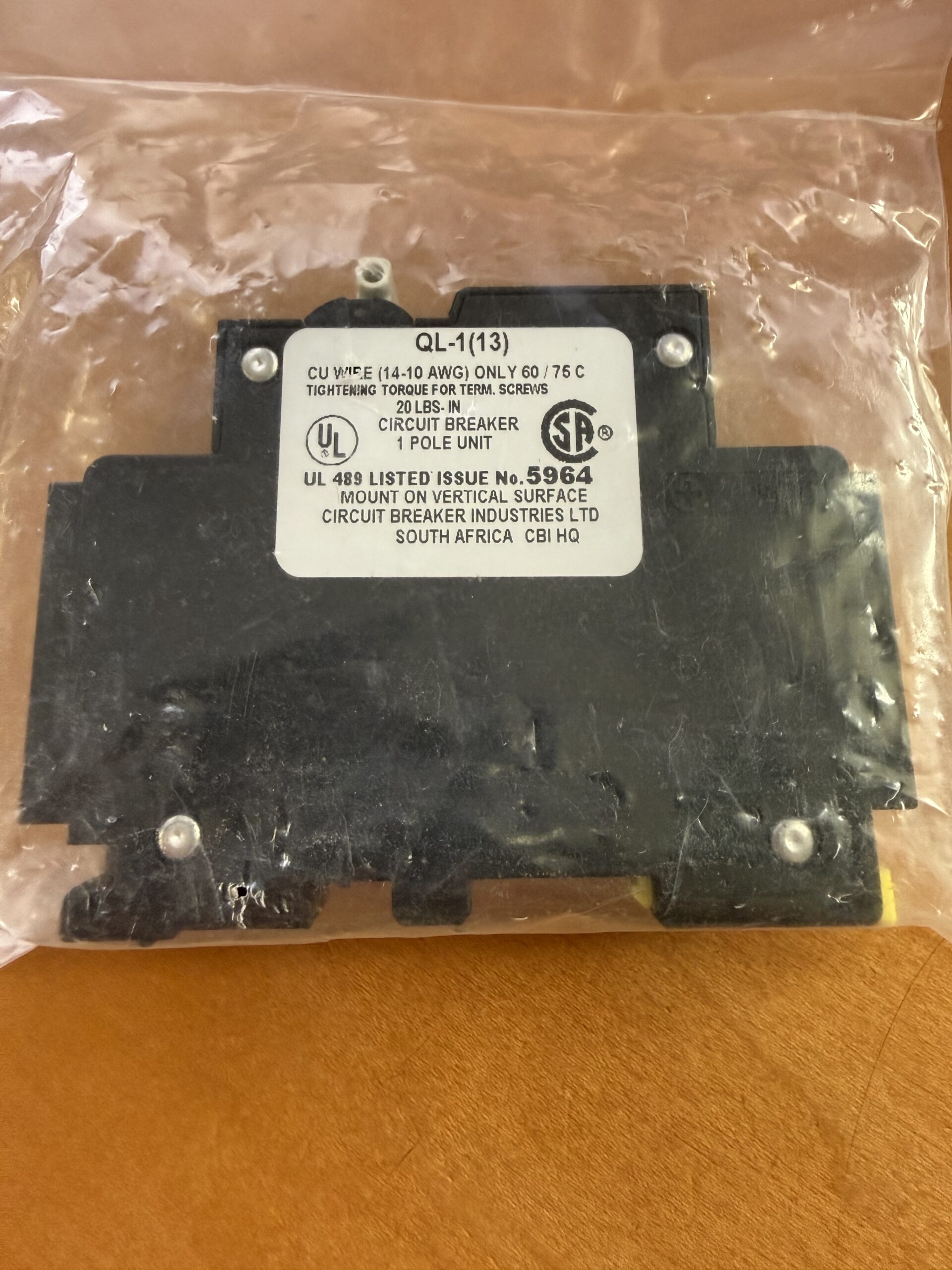

CBI QL-1(13) 10A Hydraulic-Magnetic Circuit Breaker – Single Pole, 120V AC, Compact 13mm Width
This used CBI QL-1(13) is a high-performance hydraulic-magnetic miniature circuit breaker (MCB) from CBI-electric Group (Circuit Breaker Industries), a leading global manufacturer of low-voltage circuit protection devices . Designed as part of their QL series, this 1-pole breaker is rated for 10 Amps at 120V AC and is built for industrial control panels, automation equipment, and commercial distribution boards .
The CBI QL-1 utilizes advanced hydraulic-magnetic technology, which ensures precise and stable protection independent of ambient temperature changes . This makes it exceptionally reliable in harsh or fluctuating environments where standard thermal breakers might fail .
Condition Note: This unit is untested and sold as-is. It is a single circuit breaker component; no panel, din rail, or mounting hardware is included unless specified.
Key Specifications
| Specification | Details |
|---|---|
| Manufacturer | CBI-electric Group (Circuit Breaker Industries) |
| Series | QL series |
| Model | QL-1(13)-DM-KM-10A (likely full part number) |
| Number of Poles | 1 |
| Current Rating | 10 A |
| Voltage Rating | 120 VAC (also rated for 240 VAC) |
| Type | Hydraulic-Magnetic Circuit Breaker |
| Trip Curve | KM (Medium Time Delay) |
| Interrupting Capacity | 10,000 A (10 kA) |
| Module Width | 13 mm |
| Mounting Type | Dual Mount (DIN Rail and Mini Rail compatible) |
| Terminal Type | Screw terminals |
| Handle Color | White |
| Operating Temperature | -40°C to +85°C |
| Frequency Rating | 50/60 Hz |
| Approvals | UL 489 Listed, CSA, CE, VDE, CCC, EAC |
| Condition | Used – Untested |
Key Features & Benefits
| Feature | Benefit |
|---|---|
| Hydraulic-Magnetic Technology | Provides ambient temperature-compensated protection, ensuring reliable tripping in extreme heat or cold . |
| KM Trip Curve | Medium time delay curve ideal for protecting sensitive equipment from moderate overloads while allowing for harmless inrush currents . |
| High Interrupting Capacity (10kA) | Capable of safely clearing high fault currents in demanding industrial applications . |
| Compact 13mm Width | Saves valuable space in control panels and DIN rail enclosures . |
| UL 489 Listed | Certified for use as a branch circuit protector in North American applications . |
| Visual Trip Indication | “Mid-trip” handle position indicates if the breaker has tripped due to a fault versus being manually switched off . |
Applications
-
Industrial Control Panels: Protecting PLCs, motor starters, and control circuits
-
Automation Equipment: Overcurrent protection for sensors, actuators, and drives
-
Commercial Distribution: Lighting control and branch circuit protection
-
HVAC Equipment: Internal protection for controls and compressors
-
Test & Measurement: Bench power supply input protection
-
Telecommunications: DC and AC protection for communication equipment
| Weight | 2 lbs |
|---|---|
| Dimensions | 9 × 6 × 3 in |
