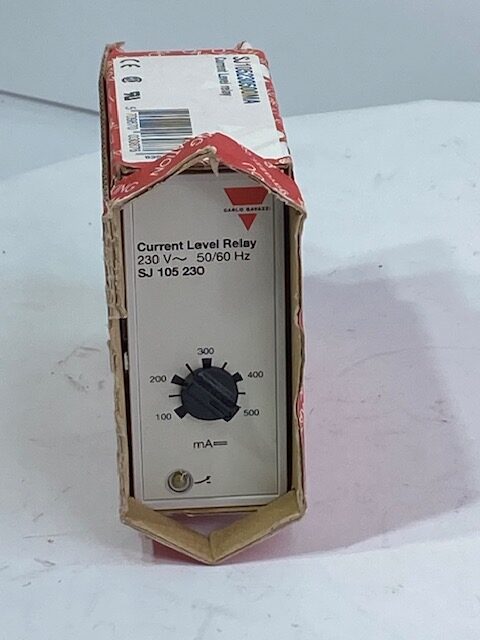

Type: 1-phase AC/DC current metering relay (SJ 105 family)
-
Measuring ranges: 0.2 mA → 5 A, depending on model variant
-
Current input: Pin 5 & 7 for current measurement
-
Internal shunt: Yes (built-in)
-
Set-point: Adjustable with potentiometer (absolute scale)
-
Latching: Can be latched (by connecting pins 8 & 9)
-
Hysteresis: About ~10% (can be extended by external resistor)
-
Output: SPDT relay
-
Contact ratings:
-
Resistive AC (AC1): 10 A / 250 VAC
-
Inductive AC (AC15): 2.5 A / 230 VAC
-
DC (DC1): 1 A / 250 VDC
-
DC13: 5 A / 24 VDC
-
-
Power Supply: 230 VAC ±15%, 45–65 Hz
-
Reaction Time: Relay operates in ~22 ms; release ~2.2 s (worst-case up to 5 × τ)
-
Accuracy: 0 to +10% on the max set level
-
Indicator: Yellow LED when output is ON
-
Protection / Environment:
-
Dielectric strength: ≥ 2 kV AC (supply/electronics)
-
Rated impulse: 4 kV (1.2/50 µs)
-
Operating temperature: –20°C to +50°C
-
Storage: –50°C to +85°C
-
| Weight | 1 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
