Canon WUX5000 Aisys Projector

Canon WUX5000 Aisys Projector

Powers up. Comes with a power cord, no remote

Goes through all menu options

Fan runs quiet and smooth

2130 Lamp hours

Being sold “as is” Final Sale

The Canon REALiS WUX5000 is a versatile large-venue projector featuring native WUXGA resolution (1920 × 1200) and exceptional image clarity.

It’s designed for professional environments like corporate boardrooms, educational lecture halls, museums, and galleries, where high resolution and color fidelity are essential.

💡 Image Quality & Brightness

• Delivers a robust 5,000 ANSI lumens of brightness paired with a 1000:1 contrast ratio, ensuring vivid and detailed projection even in ambient-lit rooms.

• Uses AISYS-enhanced 0.71″ LCOS technology (3-panel), offering smooth, film-like image quality with deep blacks and minimal pixel visibility .

• Maintains uniformity of approximately 88–90%, and includes Canon’s proprietary color processing features like 3D LUT, dynamic gamma, and memory color correction.

🔧 Installation Flexibility & Lenses

• Supports motorized horizontal and vertical lens shift, plus digital keystone correction, simplifying alignment and flexible positioning in complex setups.

• Compatible with interchangeable Canon lenses (sold separately), including:

  • Standard Zoom (RS‑IL01ST) — Throw ratio: 1.50–2.25:1

  • Long Zoom (RS‑IL02LZ) — Throw ratio: 2.20–3.75:1

  • Ultra‑Wide Fixed (RS‑IL03WF) — Throw ratio: 0.80:1

• Connectivity & Performance Specs

  • Lamp: 330 W NSH (model RS‑LP07); rated for approximately 3,000 hours life (up to 5,000 hours in Eco mode)

  • Noise: Operates around 40 dB (normal), reduced to 36 dB in Eco mode .

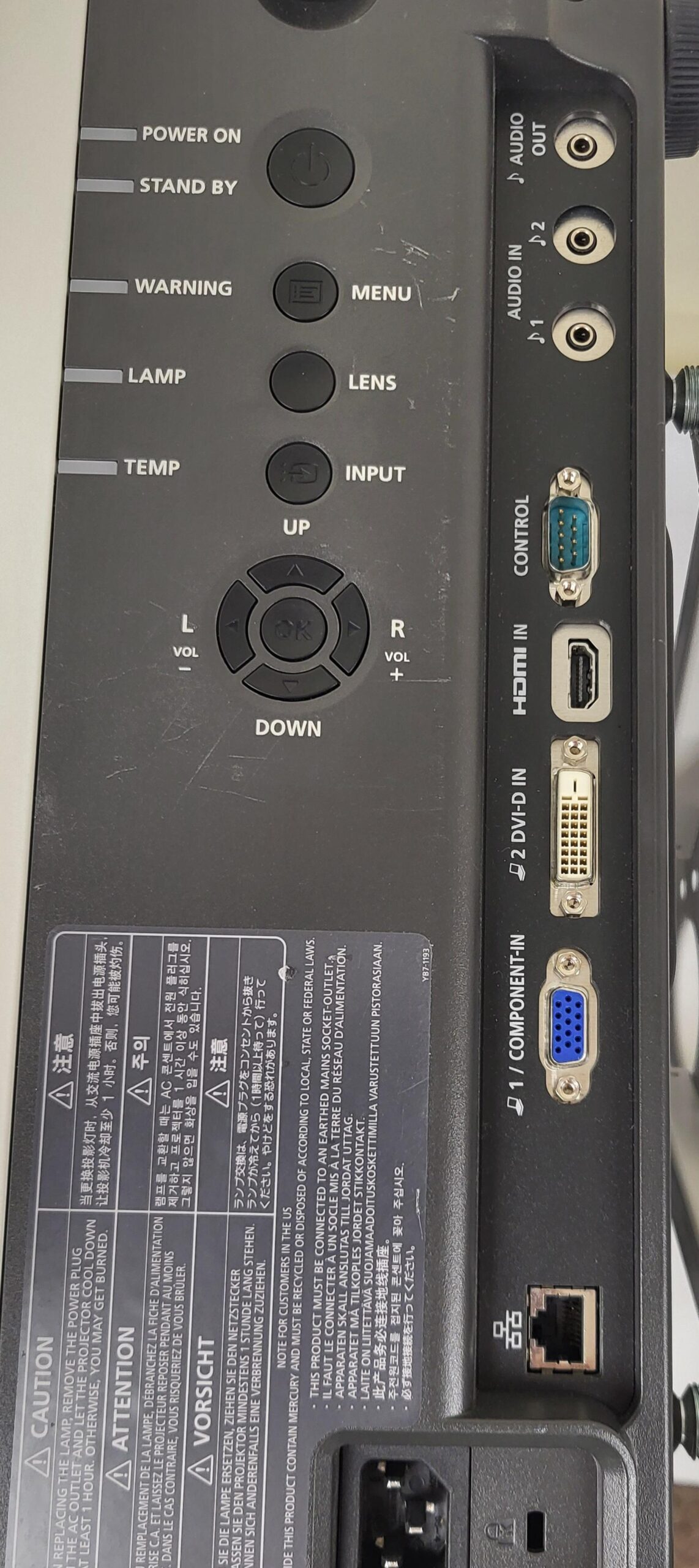

  • Inputs: HDMI 1.3, DVI-D, VGA (D‑sub 15), twin 3.5 mm audio in, audio out, RS‑232 control, and 2× RJ‑45 network ports for remote control or multi-projection setups

  • Power use: Approximately 450 W at 100–240 V AC .

• 📋 Technical Summary

  Specification	Details
  Display Technology	LCOS (0.71″, 3‑panel)
  Native Resolution	WUXGA (1920 × 1200)
  Brightness	5,000 ANSI lumens
  Contrast Ratio	~1,000:1
  Uniformity	~88–90%
  Lamp Type	330 W NSH (RS‑LP07)
  Lamp Life	~3,000 hrs (Eco: ~5,000 hrs)
  Noise Level	~40 dB (Normal) / ~36 dB (Eco)
  Lenses (Optional)	Standard Zoom, Long Zoom, Ultra-Wide Fixed
  Input Interfaces	HDMI, DVI‑D, VGA, Audio, RS‑232, Dual LAN
  Features	Lens shift, Keystone, DICOM mode, Networking protocols
  Power Consumption	~450 W
  Weight / Dimensions	~18.7 lb (8.5 kg); 15 × 16.9 × 6.7 in.
